Configuring with Web Based Management
6.6 "Interfaces" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
266 Configuration Manual, 08/2018, C79000-G8976-C267-13
Overview

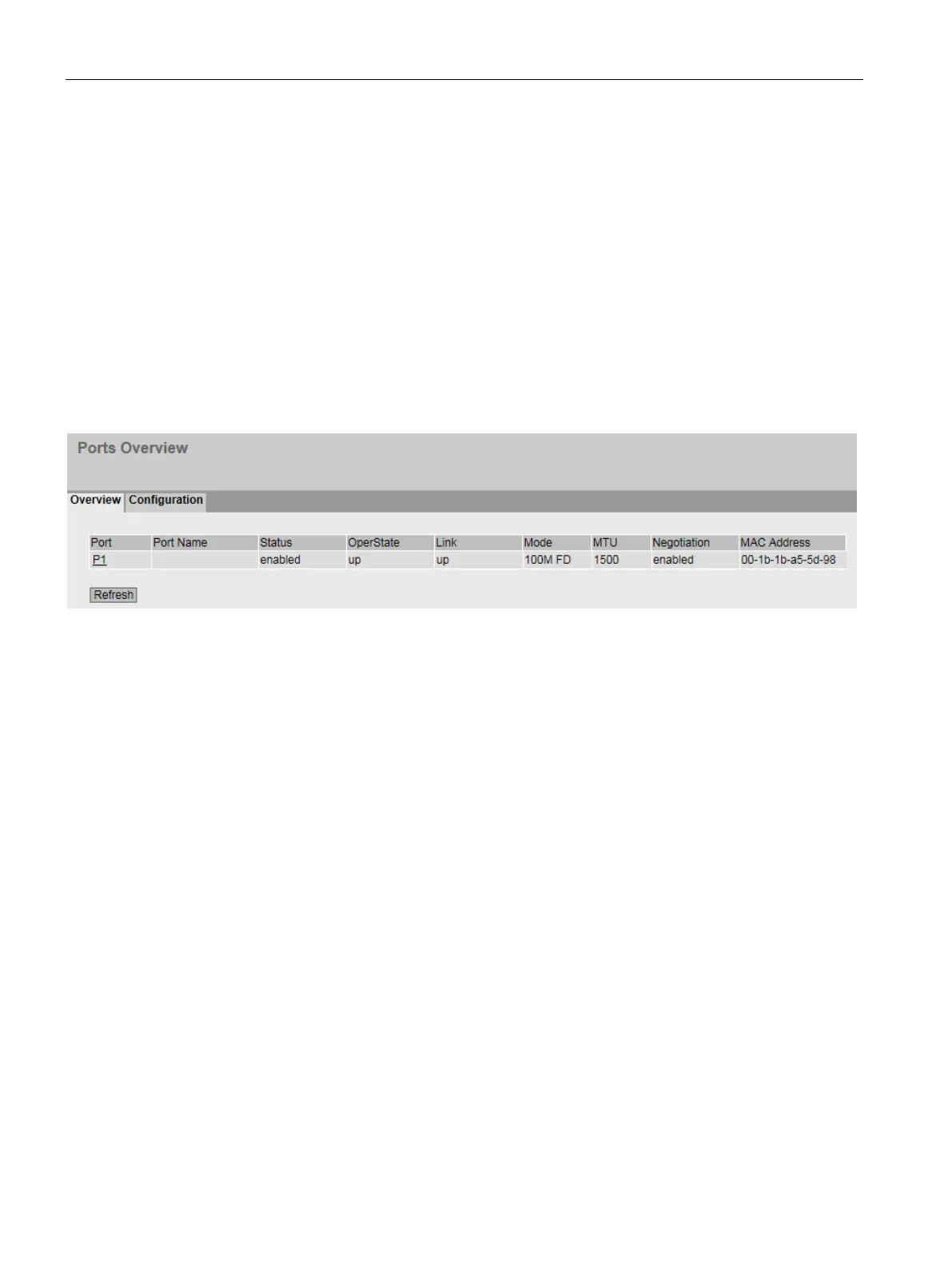

Overview of the port configuration
The page shows the configuration for the data transfer for all ports of the device. You cannot
configure anything on this page.
The table has the following columns:
●
Shows the configurable ports. If you click on the link, the corresponding configuration
page is opened.
●
Shows the name of the port.
●
Shows whether the port is on or off. Data traffic is possible only over an enabled port.
●
Displays the current operational status. The operational status depends on the configured
"Status" and the "Link". The available options are as follows:
– up
You have configured the status "enabled" for the port and the port has a valid
connection to the network.
– down
You have configured the status "disabled" or "Link down" for the port or the port has
no connection.
