Configuring with Web Based Management
6.9 "Security" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
392 Configuration Manual, 08/2018, C79000-G8976-C267-13
Ingress Rules
Introduction
On this page, you specify the ACL rules according to which incoming frames are handled by
interfaces. You specify the ACL rules in the "Rules Configuration" tab.

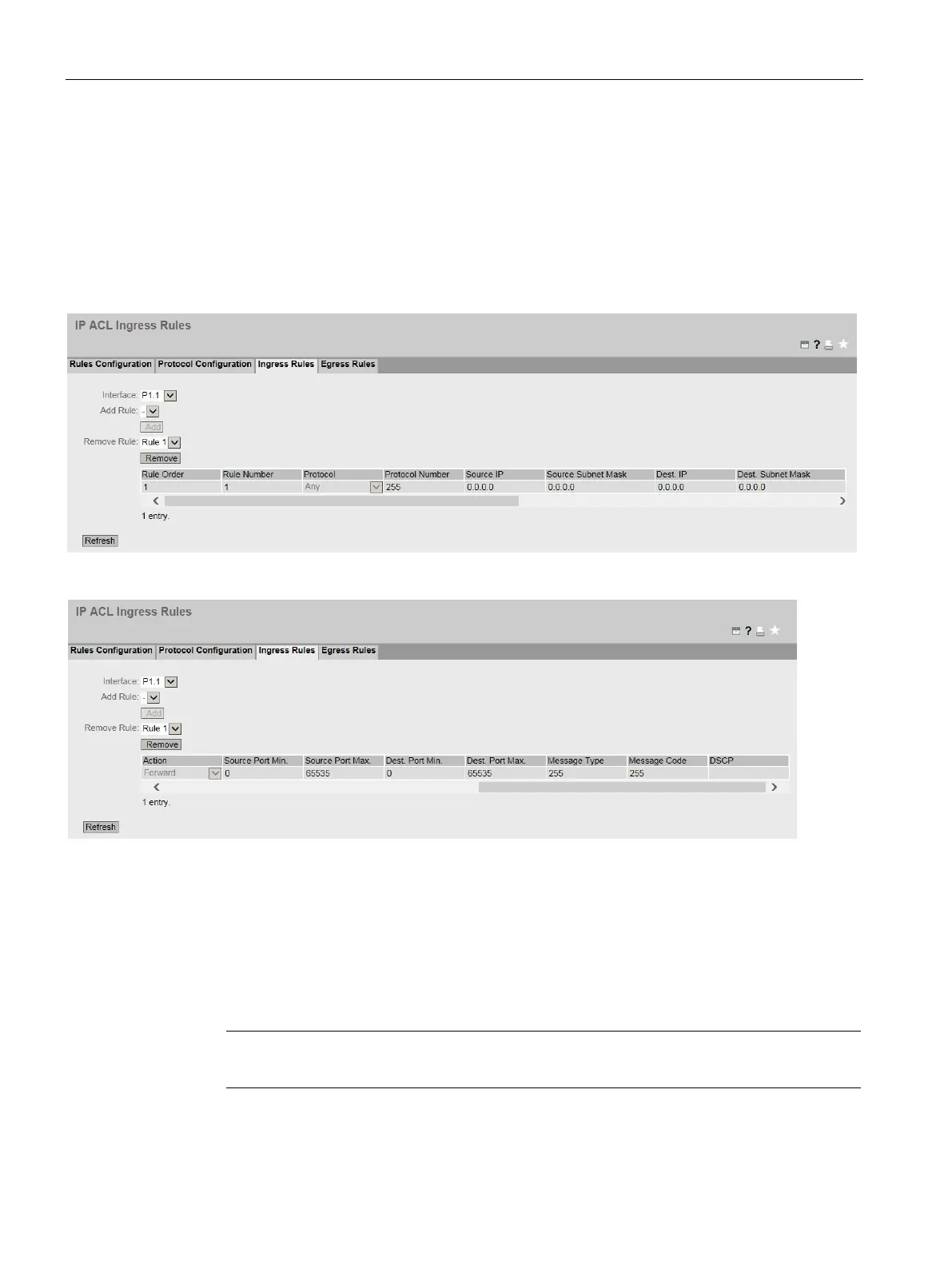

IP ACL ingress rules - first part of the table:
IP ACL ingress rules - second part of the table:
Description of the displayed boxes
The page contains the following boxes:
●
Select the required interface from the drop-down list. The available interfaces (Page 49)
depend on your device.
To select a VLAN interface, an IP interface must be configured.
Note
If you use a VLAN interface, the ACL rule applies to all ports that belong to the VLAN.
●
In the drop-down list select the ACL rule to be assigned to the interface.
