Configuring with Web Based Management
6.9 "Security" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
390 Configuration Manual, 08/2018, C79000-G8976-C267-13
●
Shows a list of all ingress interfaces to which this rule applies.
●
Shows a list of all egress interfaces to which this rule applies.
Note
Subnet mask for individual hosts
If you create the rule for a single system (one IPv4 address), specify the subnet mask
"255.255.255.2
55".
1. Click the "Create" button. A new row with a unique number (rule number) is created in the
table.
2. Enter the data of the source in "Source IP" and in "Source Subnet Mask".
3. Enter the data of the destination in "Dest. IP" and in "Dest. Subnet Mask".
4. In the "Action" drop-down list select whether the frame is forwarded or rejected when the
frame corresponds to the ACL rule.
5. Click the "Set Values" button.
You cannot delete active entries.
1. Enable "Select" in the row to be deleted.
2. Click the "Delete" button. The entry is deleted.

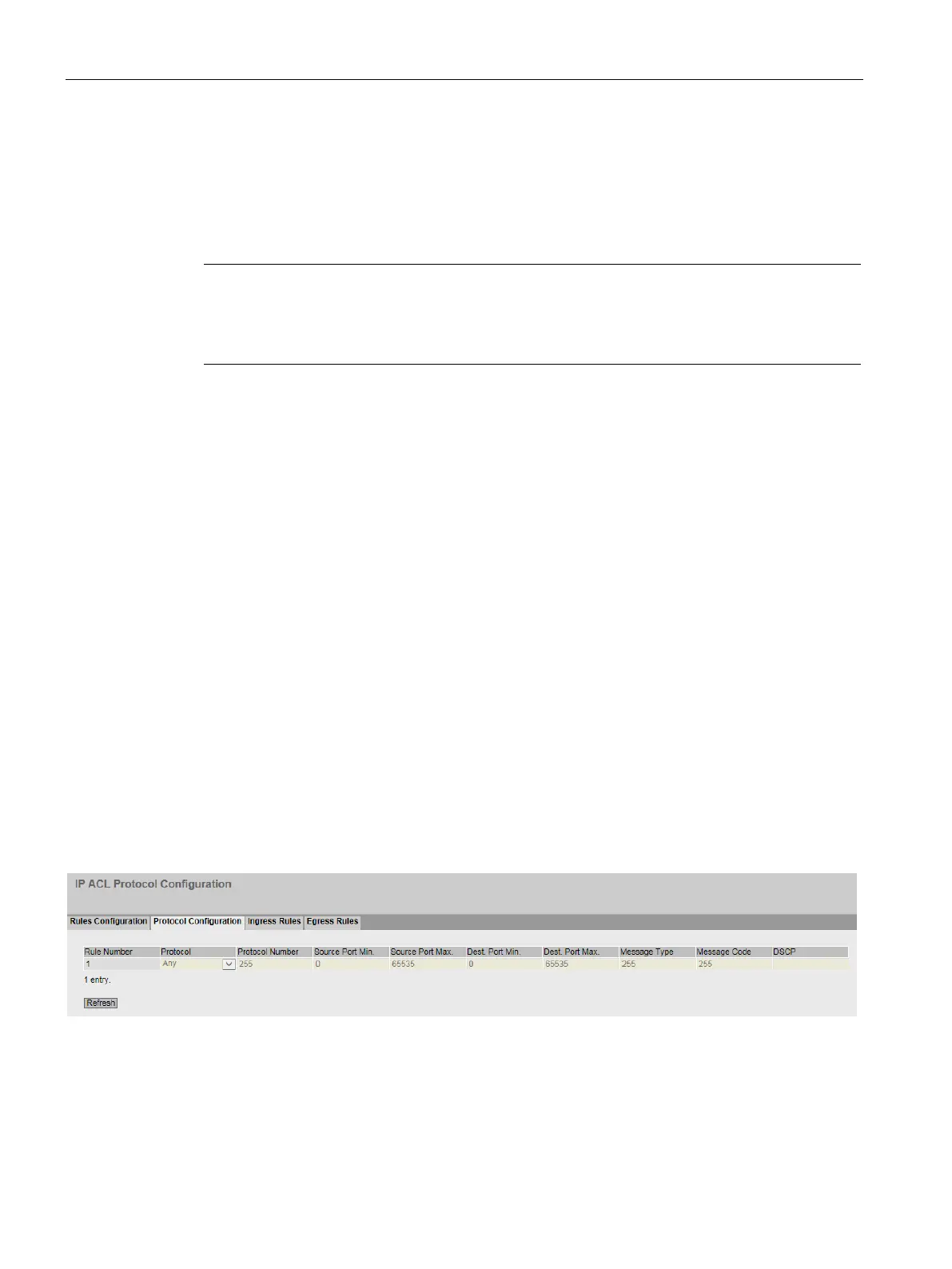

On this page, you specify the rules for protocols.
To Next Page
