Siemens SIMATIC NET SCALANCE W700 User Manual

Configuring with Web Based Management
6.9 "Security" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
387
6.9.5.3

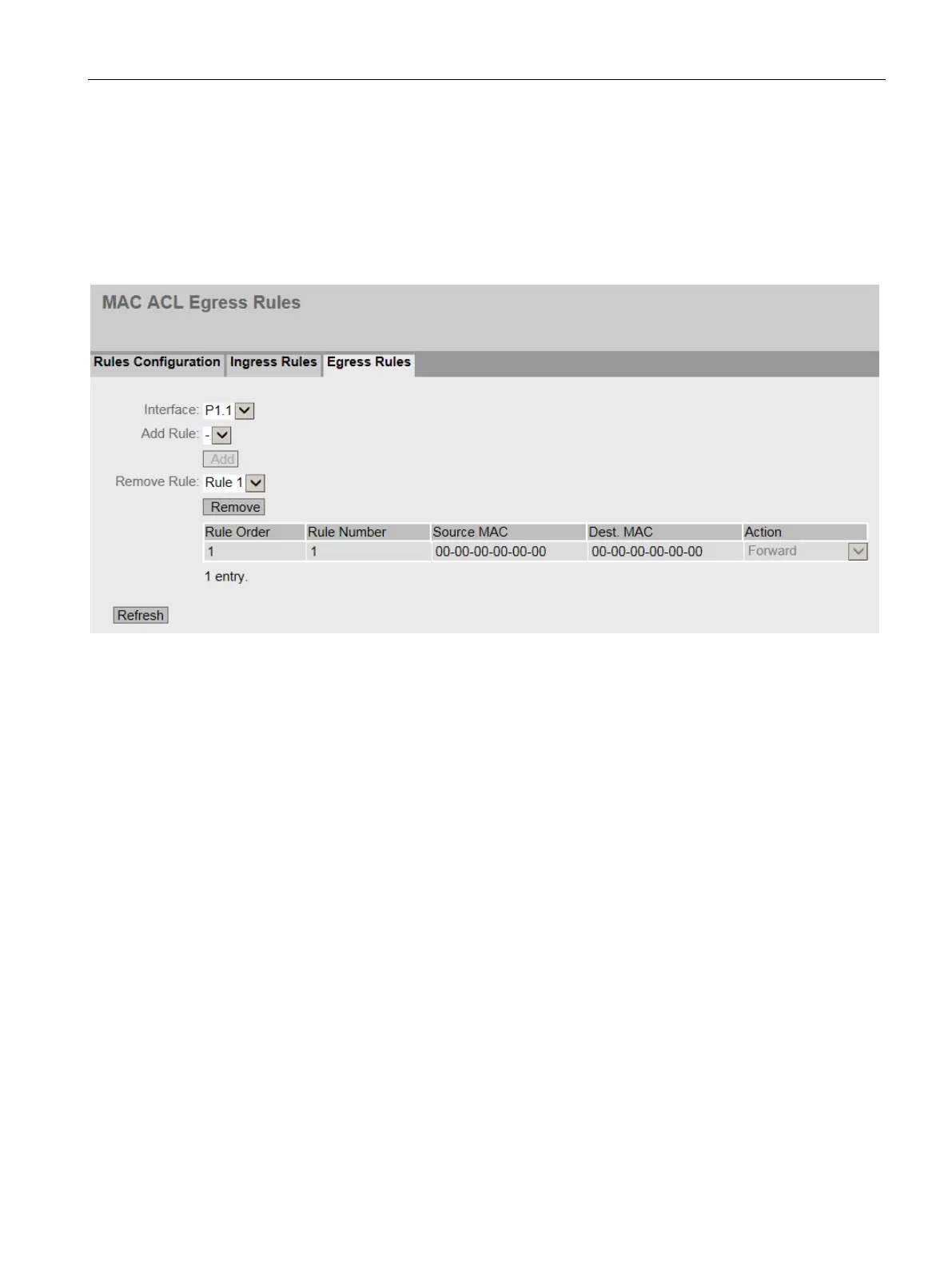

Egress Rules
Introduction
On this page, you specify the ACL rule according to which outgoing frames are filtered at
interfaces. You specify the ACL rule in the "Rules Configuration" tab.
Description of the displayed boxes
The page contains the following boxes:
●
Interface
Select the required interface from the drop-down list. The available interfaces (Page 49)
depend on your device.
●
Add Rule
In the drop-down list select the ACL rule to be assigned to the interface.
●
Add
To assign the ACL rule to the interface, click the "Add" button. The configuration is shown
in the table.
●
Remove Rule
From the "Remove rule" drop-down list, select the ACL rule to be deleted.
●
Remove
To remove the ACL rule from the interface, click the "Remove" button.
The table has the following columns:
●
Rule Order
Shows the order of the ACL rules.
●
Rule Number
Shows the number of the ACL rule.
