Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
141
●
Shows the gateway for this route.
●
Shows the interface for this route.
●
Shows the metric of the route. The higher value, the longer packets require to their
destination.
●
Shows the routing protocol from which the entry in the routing table originates. The
following entries are possible:
– Connected: Connected routes
– Static: Static routes
– RIPng: Routes via RIPng
– OSPFv3: Routes via OSPFv3
– Other: Other routes

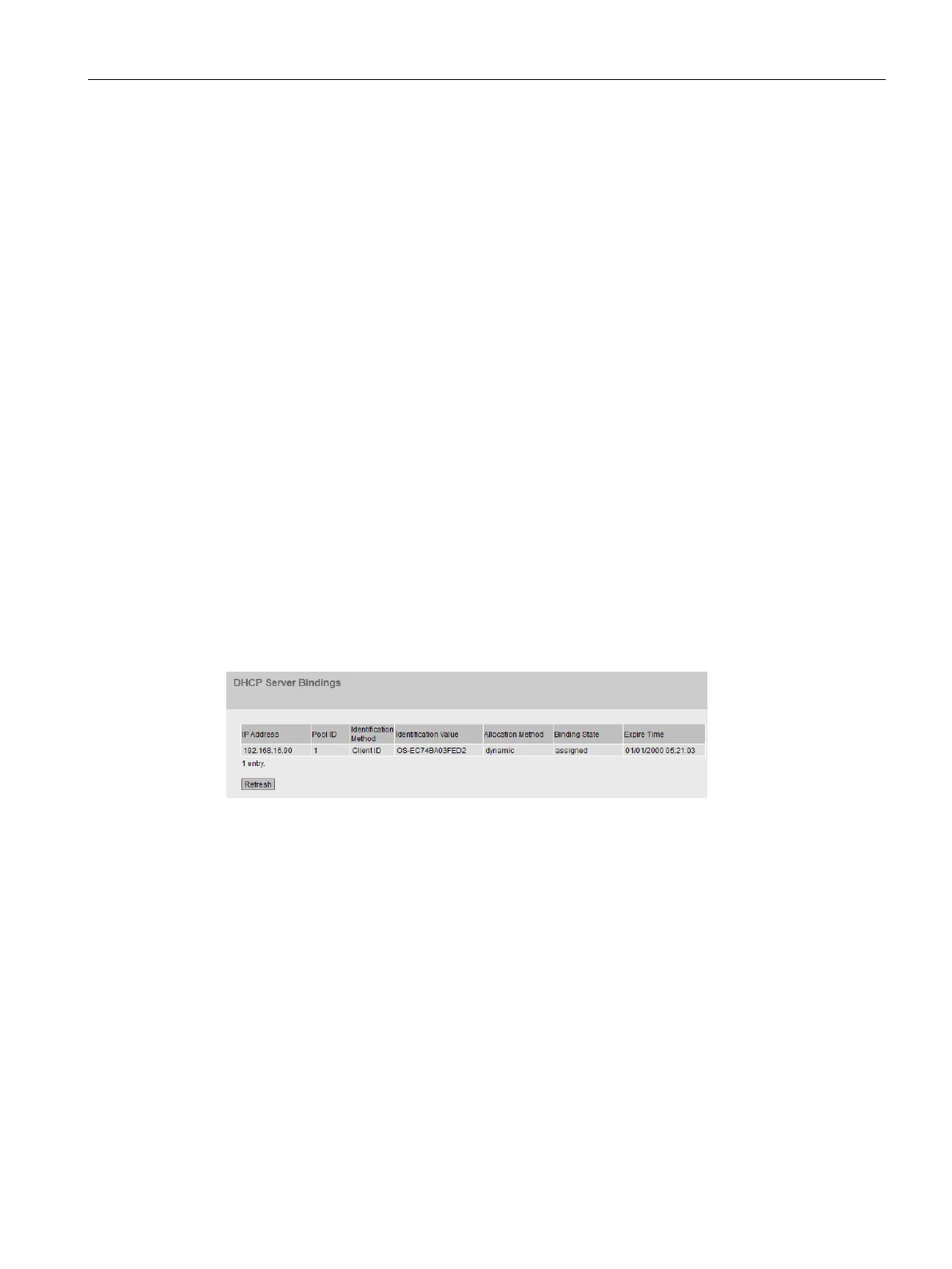

This page shows which IPv4 addresses were assigned to the devices by the DHCP server.
●
Shows the IPv4 address assigned to the DHCP client.
●
Shows the number of the IPv4 address band.
●
Shows the method according to which the DHCP client is identified.
●
Shows the MAC address or the client ID of the DHCP client.
