Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
150 Configuration Manual, 08/2018, C79000-G8976-C267-13

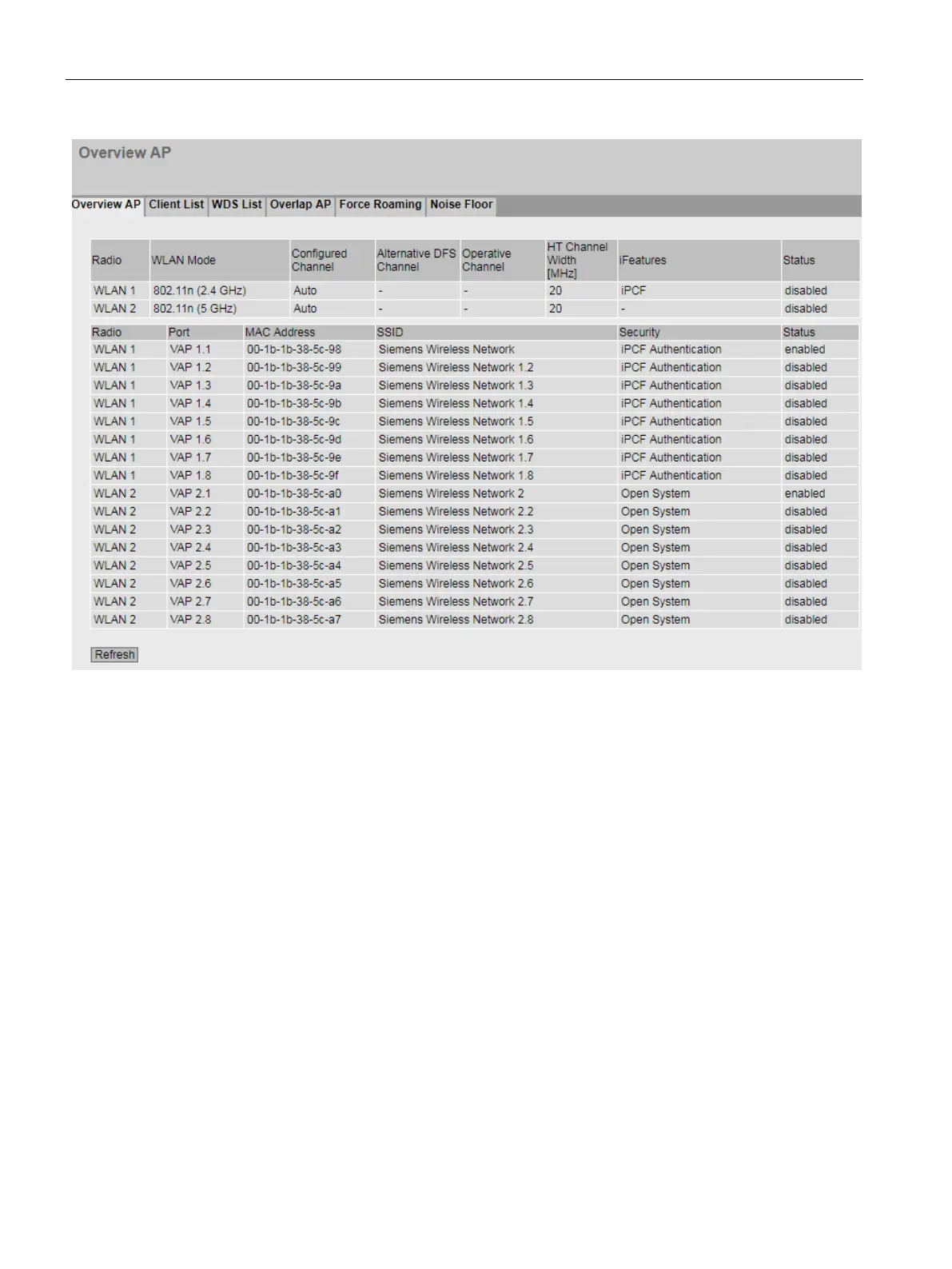

Table 1 has the following columns:
●
Shows the available WLAN interfaces.
●
Shows the available VAP interfaces.
●
Shows the transmission standard. If DFS is activated, the transmission standard
"802.11h" is not shown additionally but only the configured transmission standard
"802.11a".
●
Shows the configured channel. If "Auto" is displayed, the access point searches for a free
channel itself.
●
If the DFS function is enabled, the configured alternative channel of the access point is
displayed.
If "Auto" is displayed, the access point searches for an alternative channel itself.
