Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
153
Description
●

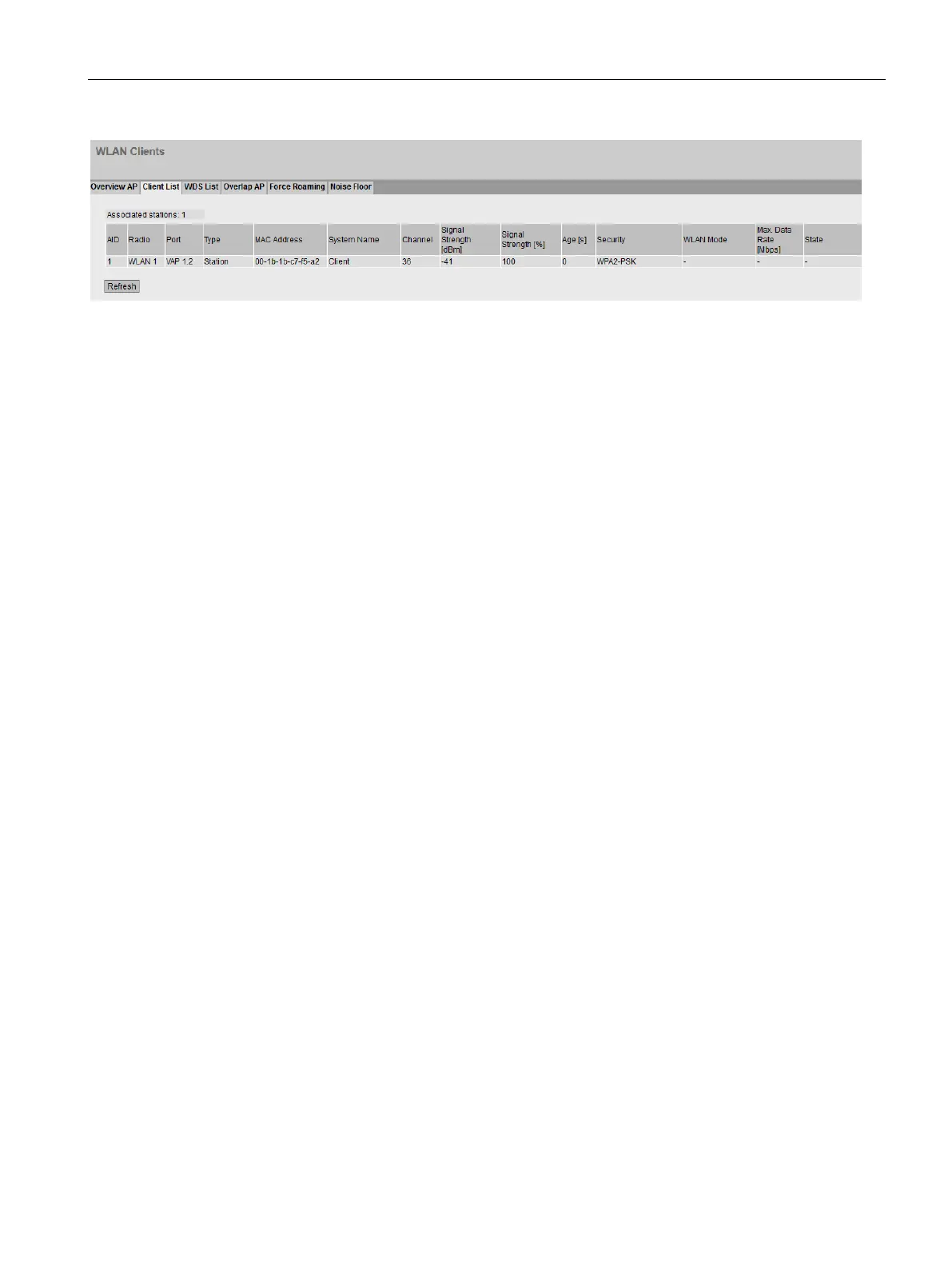

Logged-on clients
Shows the number of clients logged on to the access point.
The table has the following columns:
●
AID
(Associated ID)
Shows the connection ID of the client. If the client connects to the access point via the
VAP interface, the client is assigned a connection ID. The connection ID is unique within
a VAP interface. If two clients log on at different VAP interfaces, both clients can receive
the same ID.
●
Radio
Shows the available WLAN interfaces.
●
Port
Shows the VAP interface.
●
Type
Shows the client type, for example "Sta" stands for IEEE 802.11 standard client.
●
MAC Address
Shows the MAC address of the client.
●
System Name
Shows the system name of the client if the client communicates this to the access point.
Not all clients support this parameter.
●
Channel
Shows the channel over which the client communicates with the access point.
●
Signal Strength [dBm]
Shows the signal strength of the connected client in decibel milliwatts.
●
Signal strength [%]
Shows the signal strength of the connected client as a percentage.
●
Age [s]
Shows the time that has elapsed since the last client activity.
