Configuring with Web Based Management
6.5 "System" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
248 Configuration Manual, 08/2018, C79000-G8976-C267-13

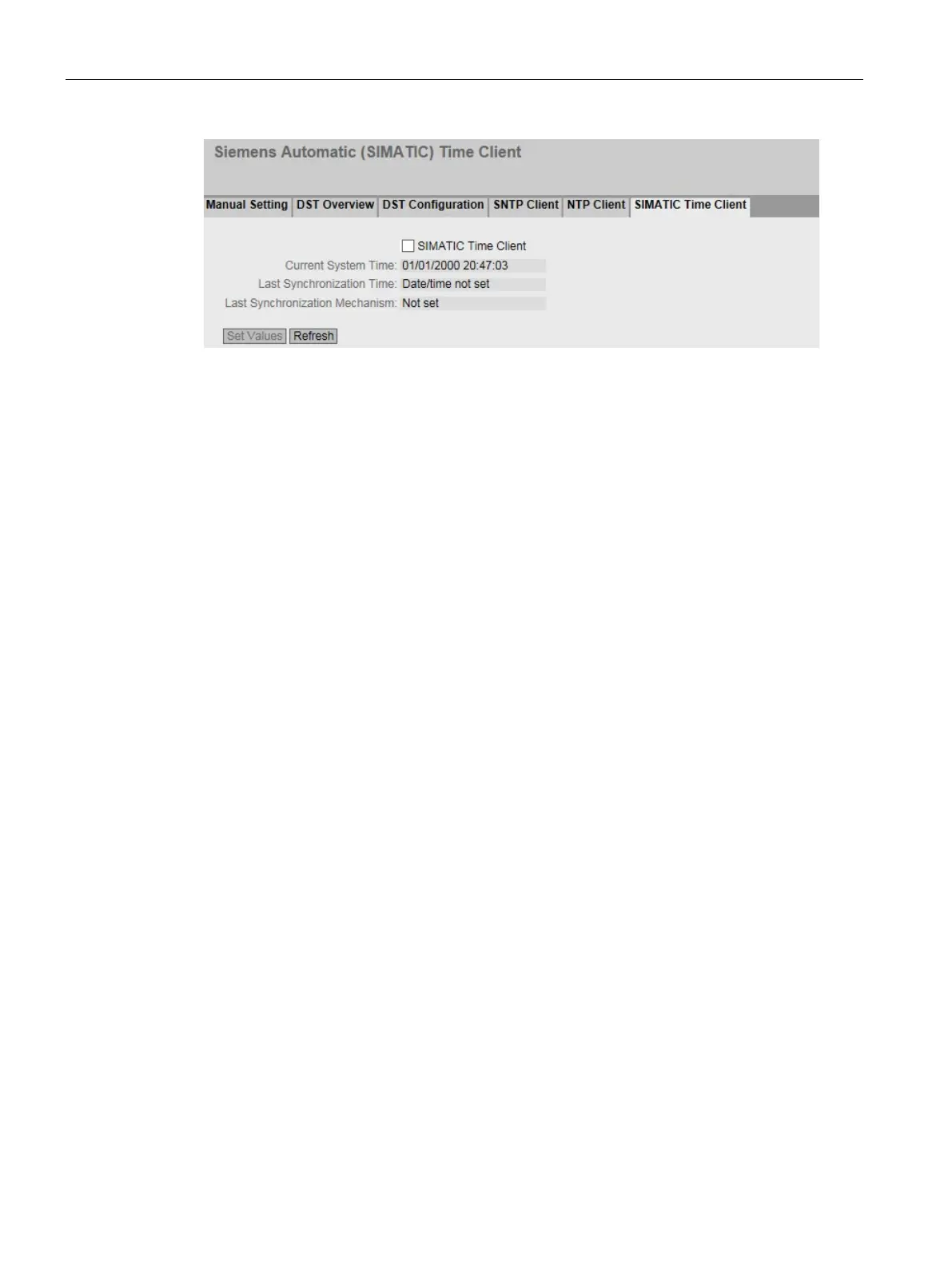

The page contains the following boxes:
●
Select this check box to enable the device as a SIMATIC time client.
●
Shows the current system time.
●
Last Synchronization Time
Shows when the last time-of-day synchronization took place.
●
Last Synchronization Mechanism
Shows how the last time synchronization was performed. The following methods are
possible:
– Not set
The time was not set.
– Manual
Manual time setting
– SNTP
Automatic time-of-day synchronization with SNTP
– NTP
Automatic time-of-day synchronization with NTP
– SIMATIC
Automatic time-of-day synchronization using the SIMATIC time frame
1. Click the "SIMATIC Time Client" check box to enable the SIMATIC Time Client.
2. Click the "Set Values" button.
