Operation list The operation list provides a view of the message archive. The operation list con‐
tains the operator log.
Examples:
● The operator has set the controller setpoint to 5 bar
● The operator has activated the drive
List of pending
messages
Displays all the acknowledged and unacknowledged messages that have not gone
out.
List of messages
to be hidden
Display of all messages that are pending and automatically hidden.
Lock list Display of all messages that are locked.

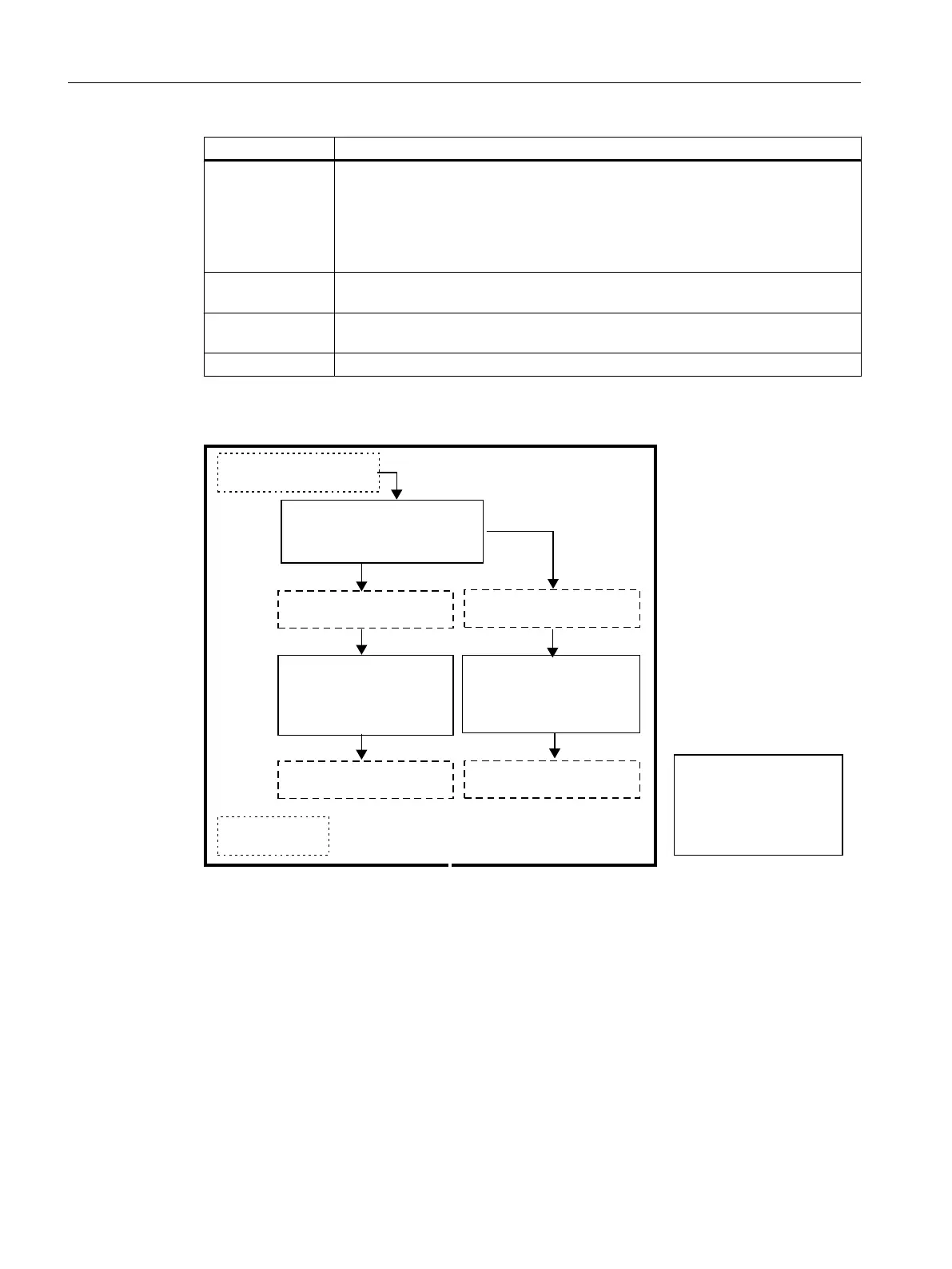

The following figure illustrates the path a message takes through the message lists.
,1&20,1*DODUP
287*2,1*DODUP
$FNQRZOHGJPHQW
287*2,1*$/$50
/,67
$&.12:/('*('
$/$50/,67
$FNQRZOHGJPHQW
287*2,1*DODUP
+,6725</,67
352&(66
&21752//,67
2SHUDWLRQ
,1&20,1*$/$50/,67
$OOXQDFNQRZOHGJHG
DODUPV
$ODUPVFOHDUHGEHIRUH
DFNQRZOHGJHPHQW
$FNQRZOHGJHGSHQGLQJ
DODUPV
23(5$7,21/,67
$/$50/2*
9LHZVRIWKH
$ODUPORJ
ILOWHUHGOLVWV
Message archive
All messages, operator information and status changes are saved to the message archive.
You can use the filters to read specific information from the message archive.
Message concept of PCS 7
6.5 Understanding messages
Service Support and Diagnostics (V8.2)
76 Service Manual, 03/2016, A5E36200111-AA
