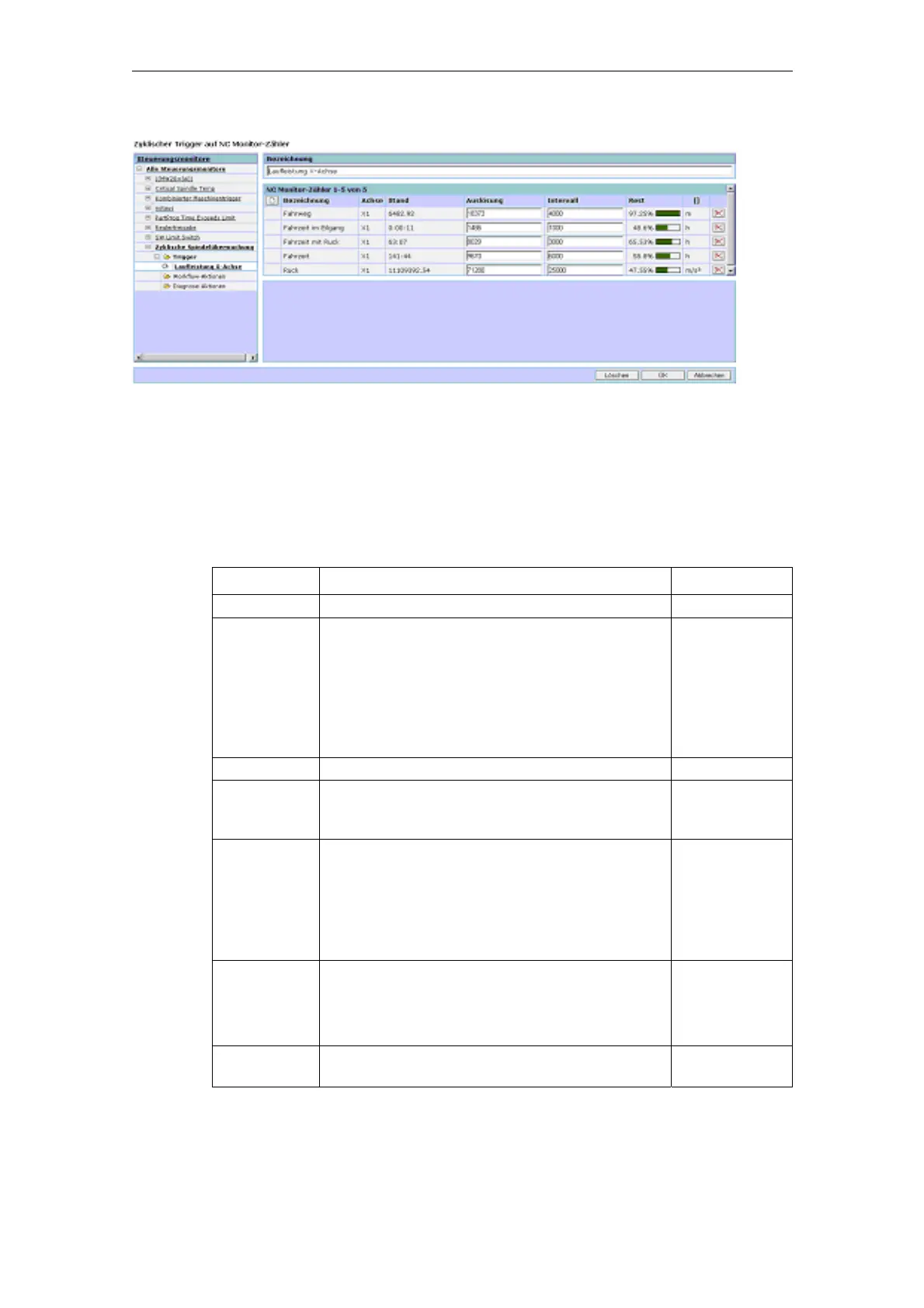

Fig. 3-44: Example - cyclic trigger on variable monitor
An interval value can be specified for each variable provided. As soon as the
variable value has exceeded the initiating value, the trigger is initiated and a new
count interval begins. The trigger value is incremented by the configured interval
value. If several counters are combined in one trigger, the first counter to exceed
the interval limit triggers the trigger. A new count interval then starts for all counters
that are combined in the trigger.
Function Description Type
View
Name Name of the variable. DISPLAY
INPUT
(max. 100
characters; all
characters are
permissible,
exception <)
Axis Axis identifier: NC axis name. DISPLAY
Status Counter status, corrected by
SINUMERIK Integrate, for current absolute
variable content.
DISPLAY
Trigger Counter status for the next initiation, either
specified by an entry or automatically calculated
and entered by SINUMERIK Integrate upon
interval change.
DISPLAY
INPUT
(With
SINUMERIK In
tegrate
update)
Interval Interval value DISPLAY
INPUT
(Up to a max.
of 9 digits)
Remainder Numerical and graphic display of the remaining
count units until next initiation
DISPLAY
