Installation and wiring
3.4 Inserting and identifying the electronic modules
EIP-200S Ethernet/IP Adapter Distributed I/O System
System Manual, 06/2018, A5E44345053-AB
57
Changing the type of an electronic module
Assuming you have already removed the electronic module, follow the steps below to
change the type of electronic module:
1. Use a screwdriver to push the code element out of the terminal module.
2. Put the code element on the used electronic module again.
3. Insert the new electronic module (different type) in the terminal module until you hear it
snap into place.
4. Identify the new electronic module.

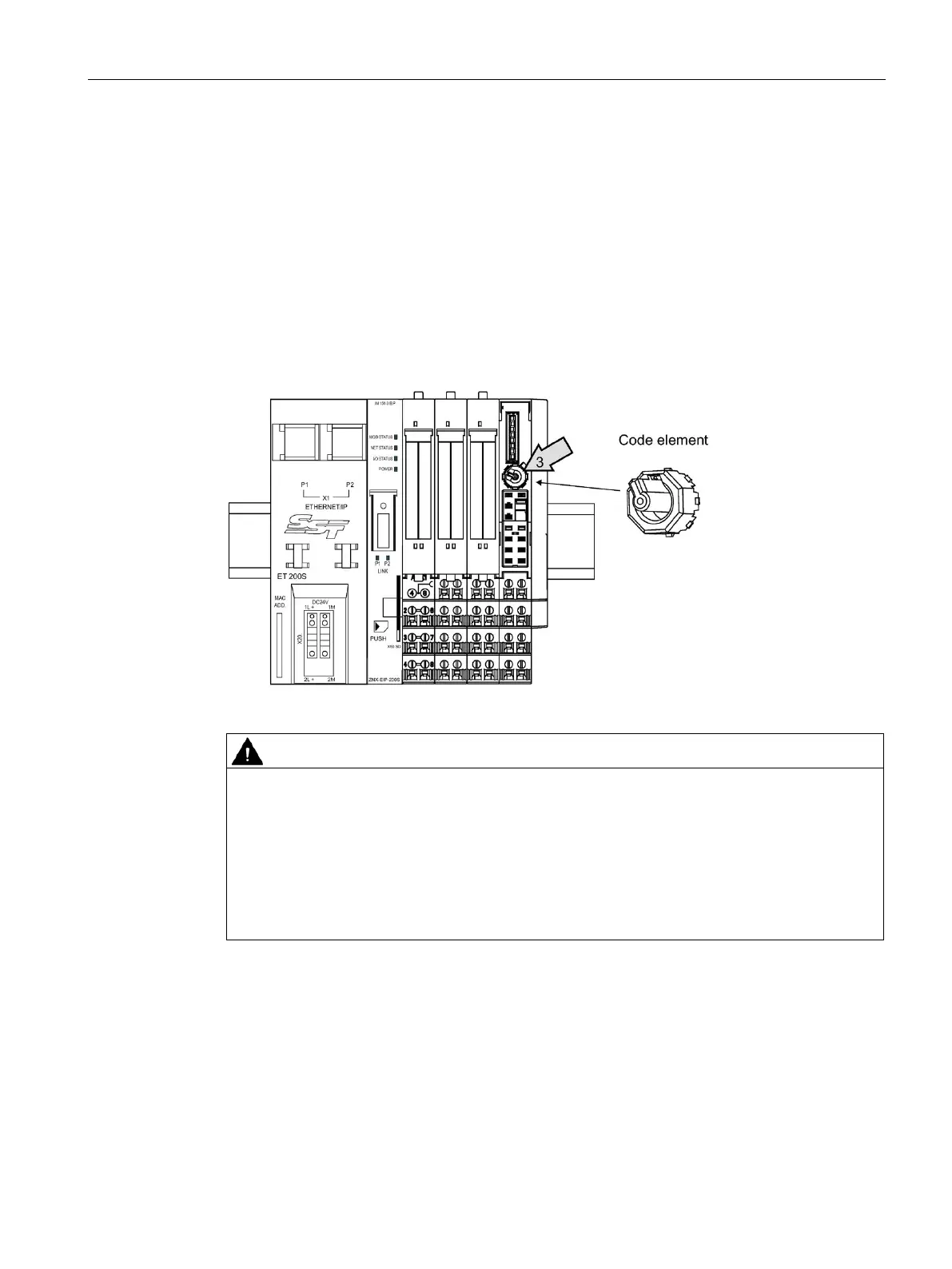

The following diagram illustrates removing the code element:
Risk of making changes to the code element:
If you make changes to the code element, dangerous plant conditions can result and the
outputs of the ET 200S can be damaged.
As a consequence, death or severe personal injury may result if proper precautions are not
taken.
Because of this possible danger, do not make any changes to the code element to avoid
damaging the ET 200S.
