Commissioning and diagnostics
4.1 Configuring the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
82 System Manual, 06/2018, A5E44345053-AB

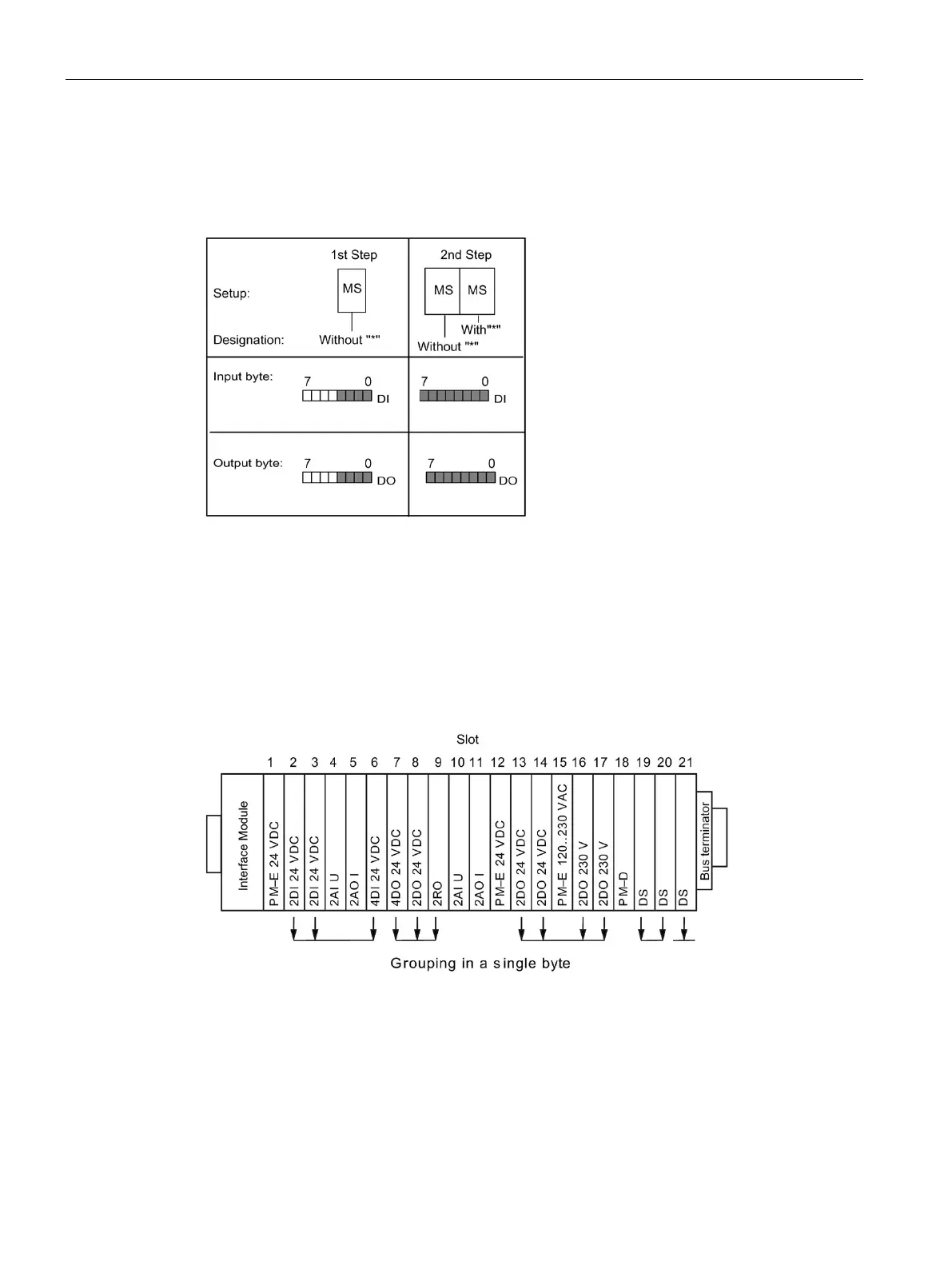

Grouping of Motor Starters
Configuration example
The following example describes how to use User Configured mode in the configuration of
an ET 200S setup:
Setup of the ET 200S
