General technical specifications
5.2 Standards Compliance
EIP-200S Ethernet/IP Adapter Distributed I/O System
System Manual, 06/2018, A5E44345053-AB
97
Short circuit protection circuitry is not provided for DC outputs on signal modules unless
otherwise stated.

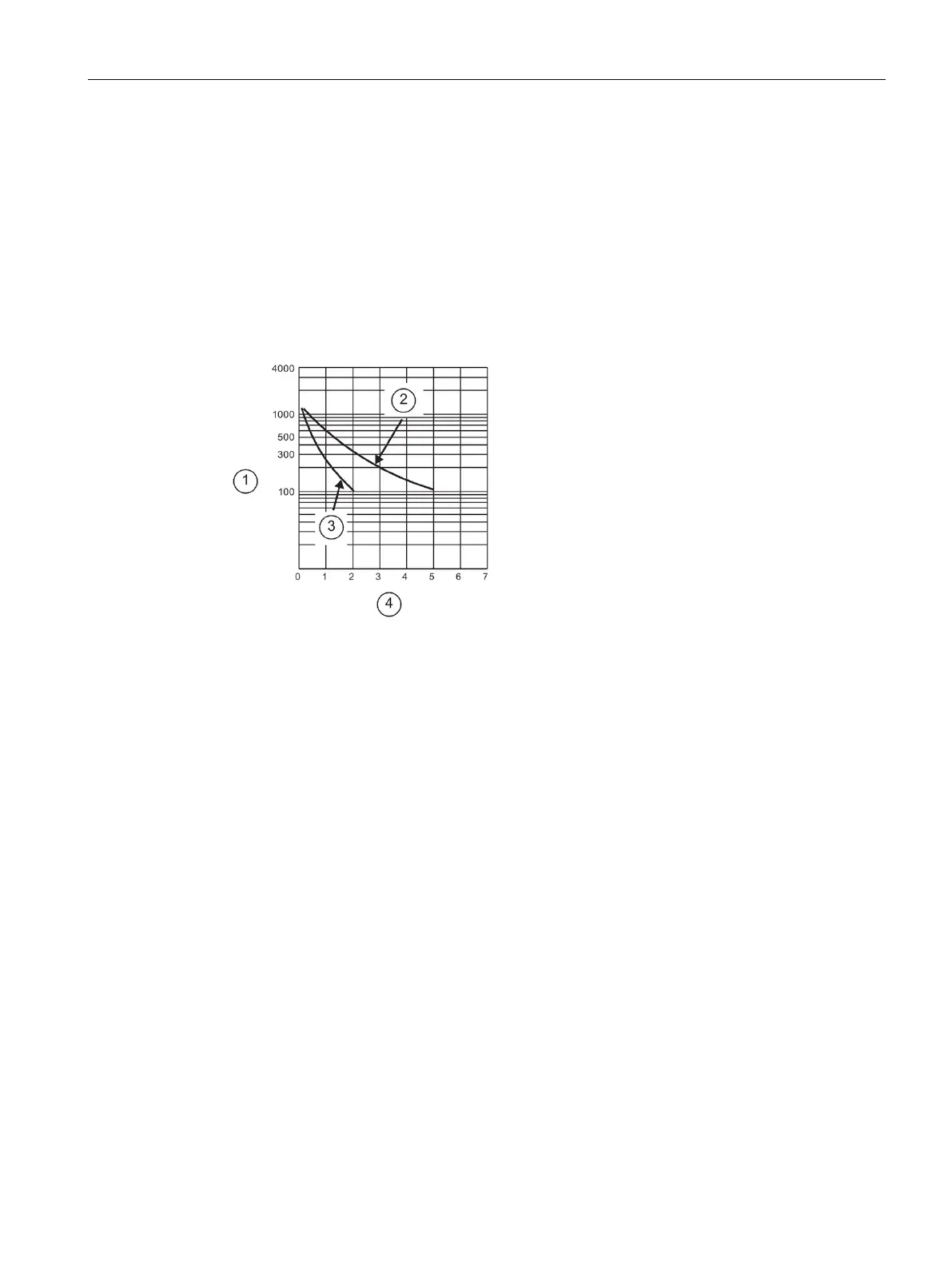

Relay electrical service life
The typical performance data supplied by relay vendors is shown below. Actual performance
may vary depending upon your specific application. An external protection circuit that is
adapted to the load will enhance the service life of the contacts.
3
operations)
③
250 VAC inductive load (p.f=0.4)
30 VDC inductive load (L/R=7ms)
Rated Operating Current (A)
