2-9
SIMATIC TD 200 Operator Interface
C79000-G7076-C272-01
Creating A Text-Only Message
The dialog box in Figure 2-8 allows you to enter the text for a TD 200 message.
The dialog box shows you the starting address of the message (Message
beginning address). It also shows you the address of the message-enabled bit for
this message. Your program uses this message-enabled bit to control the display
of this message on the TD 200. Setting the message-enabled bit to a 1 causes the
TD 200 to read and display this message.
For this example, type in your message as shown in Figure 2-8. This is a text-only
message, so there is no embedded data. Since there are two more messages to
configure in this example, click on “Next Message >” to continue.
TD 200 Configuration Wizard
Cancel
Finish
You have asked to configure 3 message(s). Define the message by placing the
highest priority message first. Press F1 for help with international characters.
< Prev
Embedded Data...
INS
<Previous Message Next Message >
VB40
V14.7
Message beginning address:
Message enabled bit:
10 15 20
PRESS F1 TO DI SPLAY
30 35 40
THE NEXT MESSAGE . . .
25
TD200
Note: This field shows the
address of the particular
message. VB40 is the
address of MSG1, VB80
would be displayed for
MSG2, and so on.
Message 1 of 3
5

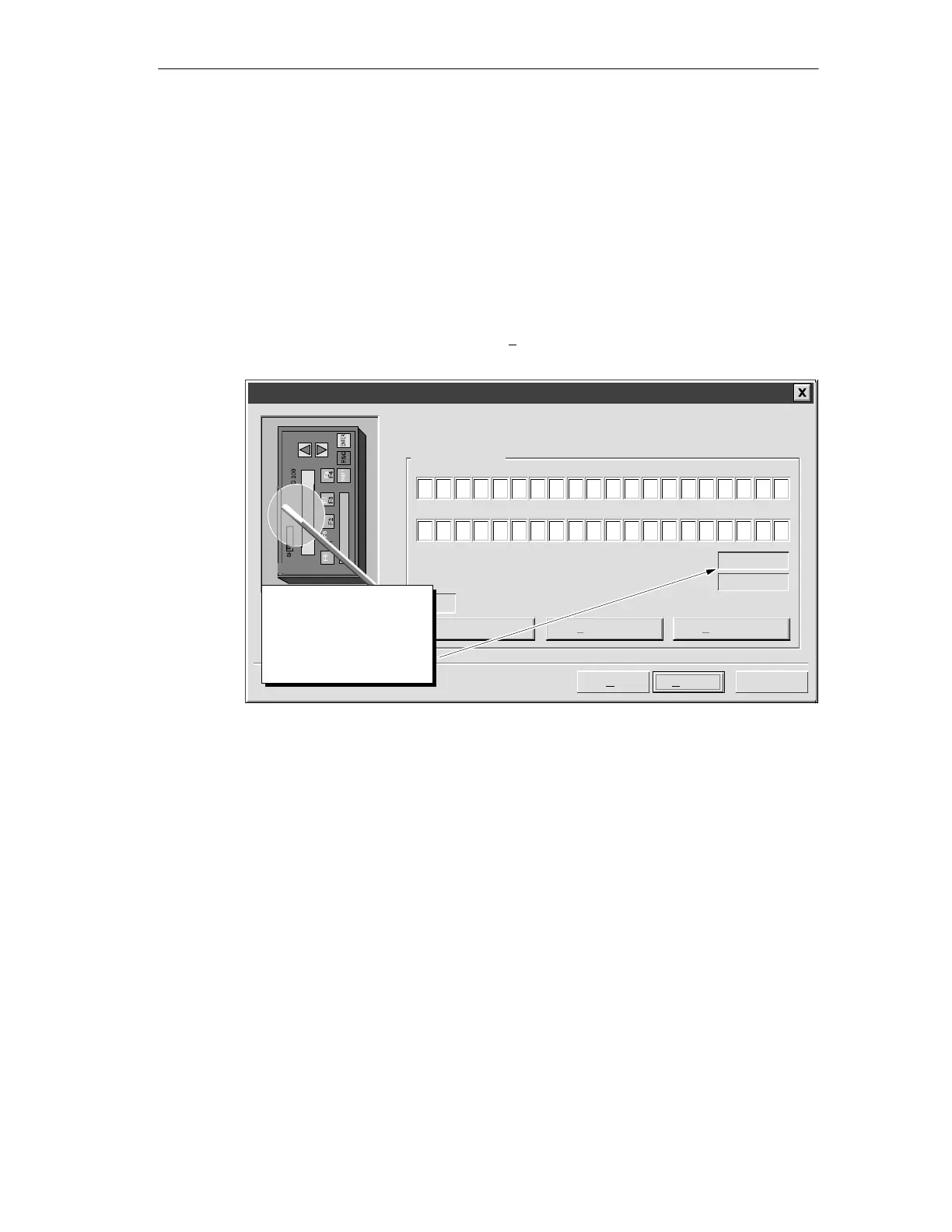

Figure 2-8 Wizard: 40-Character Message
Confi
urin
the TD 200
