3.2 Using the Menu Mode
The Menu mode of the TD 200 allows you to view all messages, display the
S7-200 CPU status information, view and set the time and date in CPUs with
real-time clocks, force I/O, release the password, and modify the configuration of
the TD 200.
The TD 200 enters the Menu mode when you press ESC and the cursor is at the
left-most character of a line. The TD 200 immediately displays the first menu item
as shown in Figure 3-2 (providing that password protection is not enabled). If the
password protection option is enabled, the TD 200 displays a prompt for entering
the password (a four-digit integer from 0000 to 9999). Enter the correct password
to view the first menu item as shown in Figure 3-2.
SIEMENS
TD 200
F1
F5
F2
F6
F3
F7
F4
F8
SHIFT ESC
ENTER

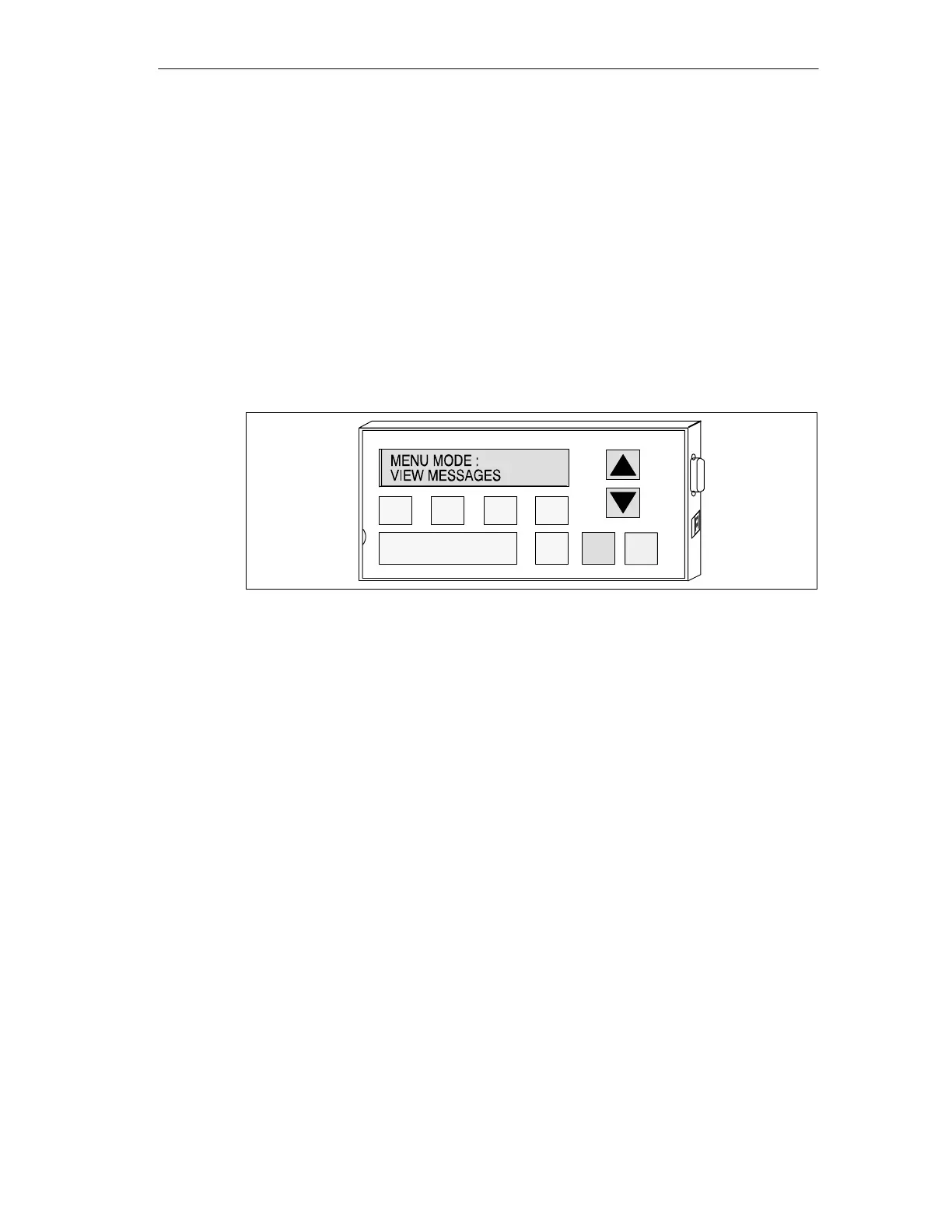

Figure 3-2 Menu Mode
Menus Available
The menu items available in the Menu mode are:
View Messages
View CPU Status
Force I/O (if allowed in parameter block)
Set Time and Date (if allowed in parameter block)
Release Password (if enabled)
TD 200 Setup
Selecting Menu Options
To select a menu item, you scroll through the list of available items by pressing the
UP and DOWN arrows. When the desired menu item is displayed, press ENTER.
Exiting Menu Mode
The TD 200 exits the Menu mode when you press ESC during the display of one
of the menu items. Also, the TD 200 exits the Menu mode automatically after one
minute and returns to the Display Message mode if you have not pressed any
keys.
Operatin
the TD 200
