3.6 Setting Time and Date in the CPU
The Set Time and Date option is only available if you set the time-of-day (TOD)
menu enable in the TD 200 configuration and if you are using a CPU that supports
the TOD clock. If the configuration is not set to allow changes to the time, or if your
CPU does not support the TOD clock, you cannot modify the date or time of the
CPU.
Figure 3-6 shows you what the TD 200 displays if you try to set the time on an
S7-200 CPU that does not contain a clock.
SIEMENS
TD 200
F1
F5
F2
F6
F3
F7
F4
F8
SHIFT ESC
ENTER

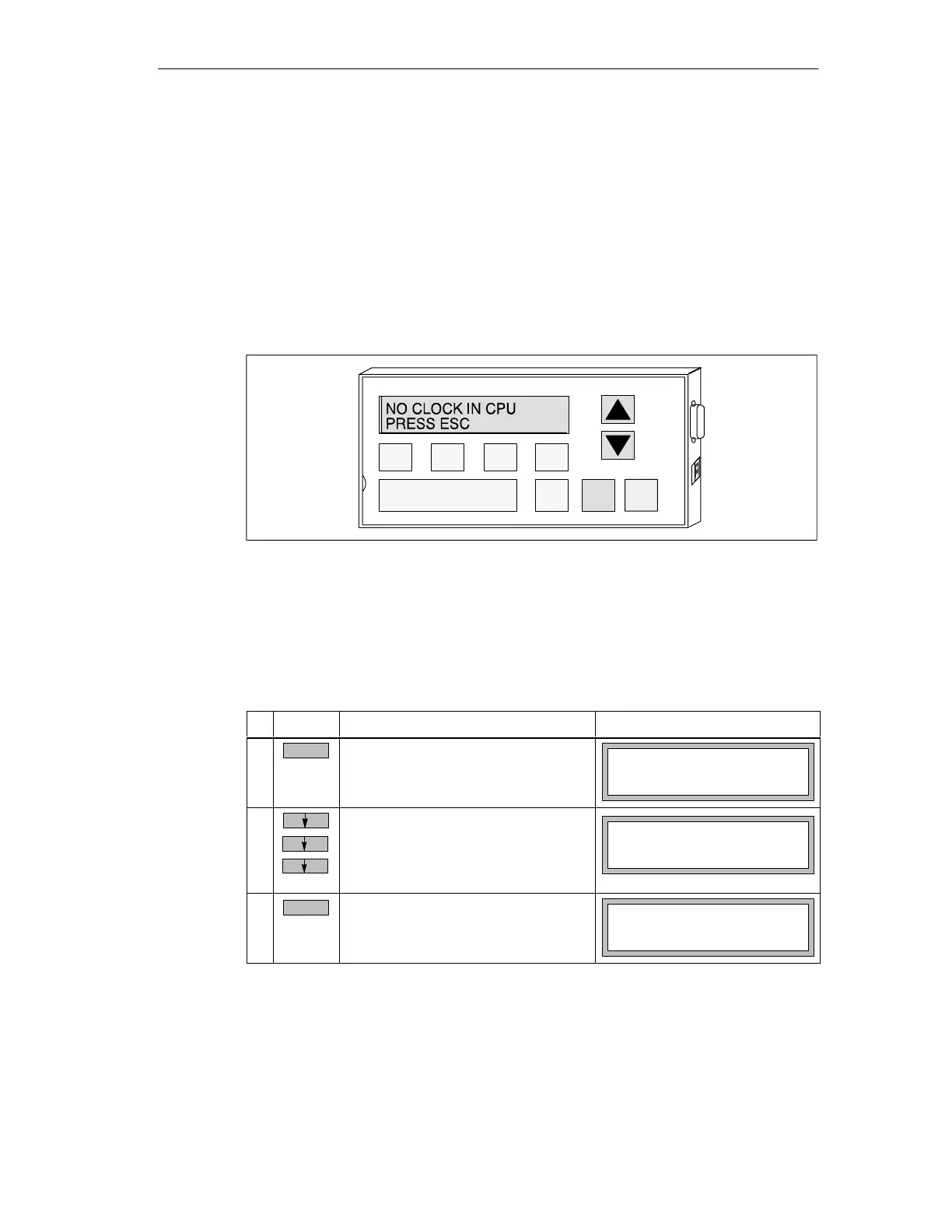

Figure 3-6 No Clock in CPU Display
Accessing the Menu
If the TOD menu enable is set and you are using a CPU that supports a TOD
clock, you can access the Set Time and Date menu by performing the following
steps.
Key Action Display
1.
ESC
The TD 200 enters the Menu mode.
VIEW MESSAGES
MENU MODE:
2. The TD 200 scrolls down the menu
options three times.
SET TIME AND DATE
MENU MODE:
3.
ENTER
The TD 200 enters the Set Time and
Date menu.
28–FEB–95 14:34:12
MONDAY
The TD 200 reads the current date and time from the CPU and displays it. The first
line of the display contains the date and time. The second line of the display
contains the day of the week.
