4-2
SIMATIC TD 200 Operator Interface
C79000-G7076-C272-01
4.1 Using a Text Message to Create a Clock for a CPU 224
Creating a Sample Program
The following figures show a sample program that you can enter. This program
uses a text message to create a clock using a TD 200 and a CPU 224. The text
message is created using the Hex To ASCII (HTA) command and the result of the
conversion is placed into the proper V memory locations to produce a date and
time display. The display shows the date and time as:
month–day-year hour:minute:second
Using the STEP 7–Micro/WIN TD 200 Configuration Wizard
To create the parameter block and messages for the TD 200, you use the TD 200
Configuration Wizard. Select the menu command Tools > TD 200 Wizard... as
shown in Figure 4-1.
Use the instructions on the following pages to create a TD 200 parameter block in
V memory. To advance to the next dialog box, click on “Next>.” At any time in the
procedure, you can click on the “<Prev” button to go back to a previous dialog box
if you need to change or review any of the parameters you have defined.
At the end of the procedure, click on “Finish” to validate and save the parameter
block. You can view the configured parameter block by opening the data block
editor.

File Edit View PLC Debug Tools Window Help
STEP 7-Micro/WIN - c:\microwin\project1.prj
TD 200 Configuration Wizard
CancelNext >
This wizard will help configuring TD 200 messages quickly and easily.
When completed, the wizard will generate the supporting data block code.
< Prev
To begin configuring TD 200 messages, click Next.
1, 1
Tools
Instruction Wizard..
TD 200 Wizard...
A
Z
A
Z
↑
↓
Customize ...
Options...
TD200

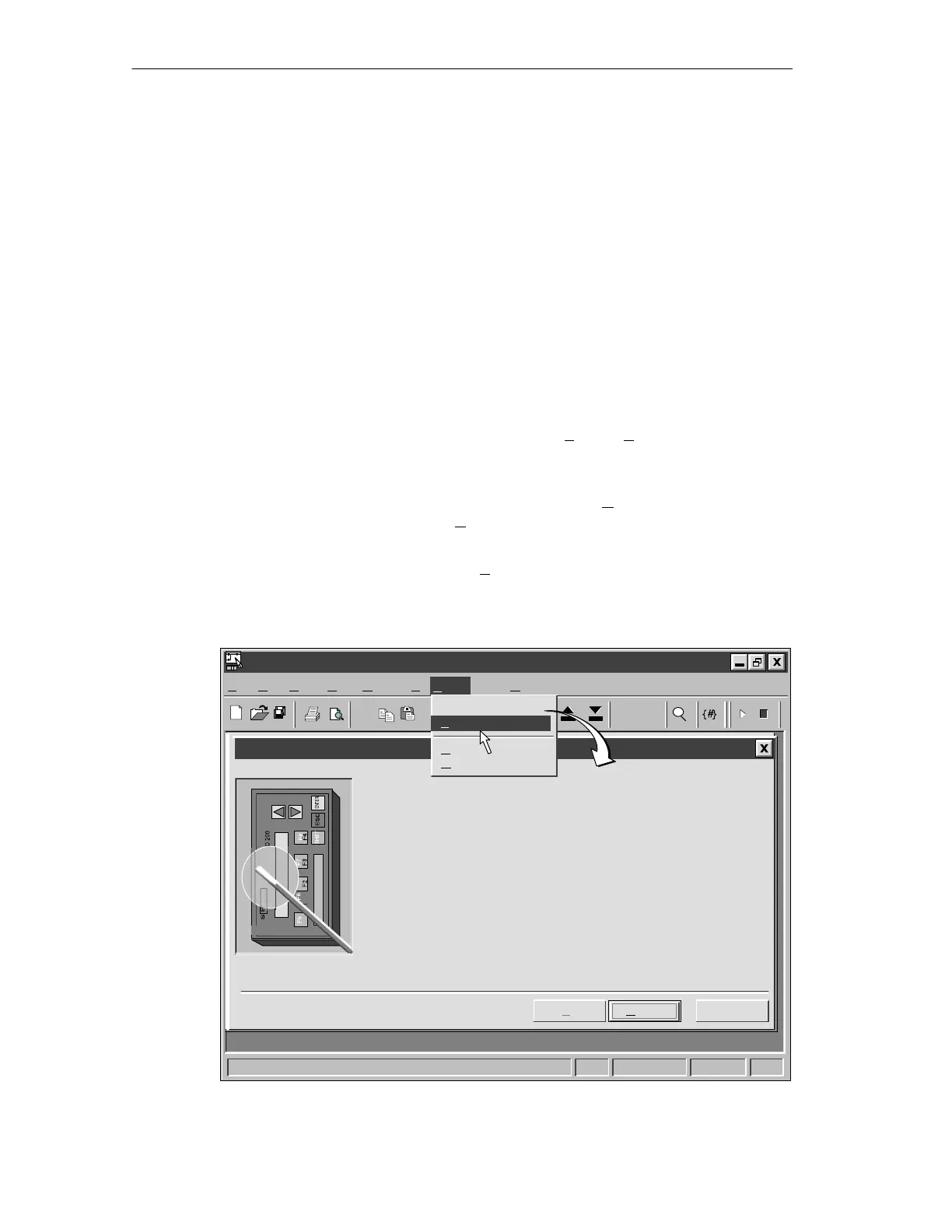

Figure 4-1 Accessing the TD 200 Configuration Wizard
Creatin
g
Sample Pro
g
rams
