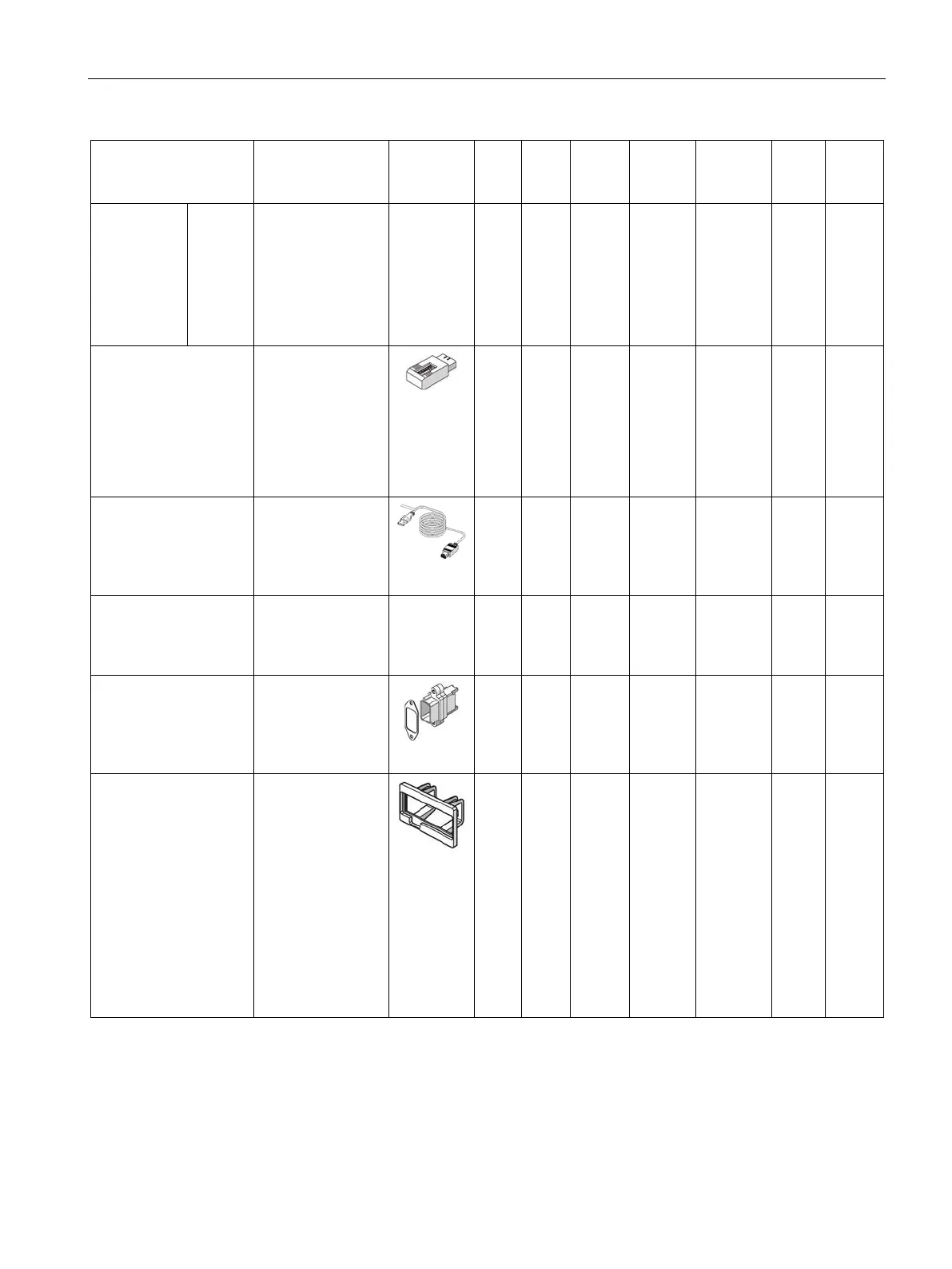

Siemens SIMOCODE pro V MR

An overview of system components
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
77
System component,
accessory
MLFB
Diagram
for
pro C
for
pro S
for V
PN GP
for pro
V PB
for
pro V MB
RTU
for
pro V
PN
for
pro V
EIP
Length of
system
interface
0.1 m
0.5 m
1.0 m
Length
of open
cable
end
1.0 m
1.0 m
1.0 m
3UF7931-0CA00-0
3UF7932-0CA00-0
3UF7937-0CA00-0
Addressing plug
Assigning the
PROFIBUS/
Modbus RTU address
without using a PC/PG
to SIMOCODE pro
through the system
interface
3UF7910-0AA00-0
✓ ✓ ✓ ✓ ✓ — —
USB PC cable
for connecting
SIMOCODE pro to the
USB interface of a
PC/PG
3UF7941-0AA00-A ✓ ✓ ✓ ✓ ✓ ✓ ✓
USB-to-serial adapter
For connecting an
RS 232 PC cable to the
interface of a PC.
3UF7946-0AA0-0 ✓ ✓ ✓ ✓ ✓ ✓ ✓
Door adapter
for bringing out the
system interface, for
example, out of a
cabinet
3UF7920-0AA00-0
✓ ✓ ✓ ✓ ✓ ✓ ✓
Adapter for operator
panel
Enables use of the
smaller operator
panel (OP) after system
replacement in a front
panel cutout in which a
larger 3UF5 2 operator
panel of
SIMOCODE DP had
previously been used.
Degree of
protection: IP54.
3UF7922-0AA00-0
✓ ✓ ✓ ✓ ✓ ✓ ✓
