Siemens SIMOTICS T-1FW3 User Manual

Configuration
5.4 Mounting
1FW3 complete torque motors
112 Configuration Manual, 08/2020, A5E46027705B AA
Mounting the motor frame to the machine on the customer's side
You can mount the motor enclosure of the complete 1FW3 torque motor to the customer's
machine corresponding to the following table:

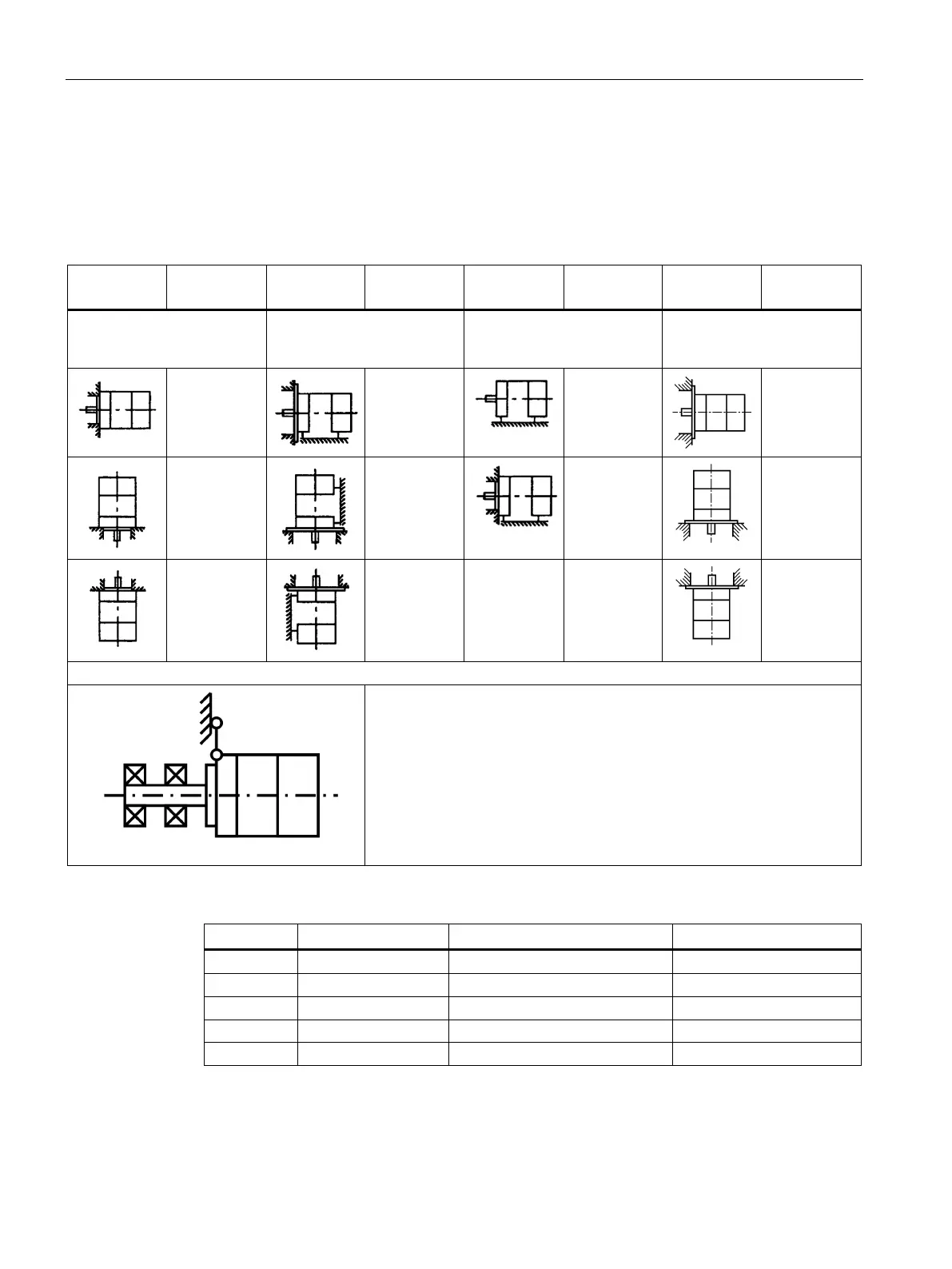

Table 5- 5 Types of construction
Type of con-
struction
Designation
Type of con-
struction
Designation
Type of con-
struction
Designation
Type of con-
struction
Designation
1FW315☐ / 1FW320☐
with hollow shaft, plug-on
shaft or solid shaft
1FW328☐
with hollow shaft (standard)
1FW328☐
with solid shaft
1FW320☐-☐☐☐☐5 /
1FW328☐-☐☐☐☐5
with stub shaft
IM B14 IM B35 IM B3 IM B5
IM V18 IM V15 IM B34
IM V1
IM V19 IM V35 - -
IM V3
1FW315 / 1FW320 / 1FW328
Plug-on mounting with torque arm
(not standardized)
Table 5- 6 Mounting the motor frame
Shaft height
Type of construction
Holes at the DE housing flange
Pitch circle diameter
150
IM B14, IM V18/19
12 x M10
295 mm
200
IM B14, IM V18/19
16 x M10
380 mm
280
1)
IM B35, IM V15/35
24 x ∅ 13 mm
532 mm
280
2)
IM B5, IM V1/3
24 x ∅ 17.5 mm
650 mm
280
3)
IM B3, IM B34
8 x M20
525 mm
1)
With hollow shaft
2)
With stub shaft
3)
With solid shaft
