Siemens SIMOTICS T-1FW3 User Manual

Configuration
5.4 Mounting
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
121
1
Gap
2
Measurement with respect to the machine axis when rotating

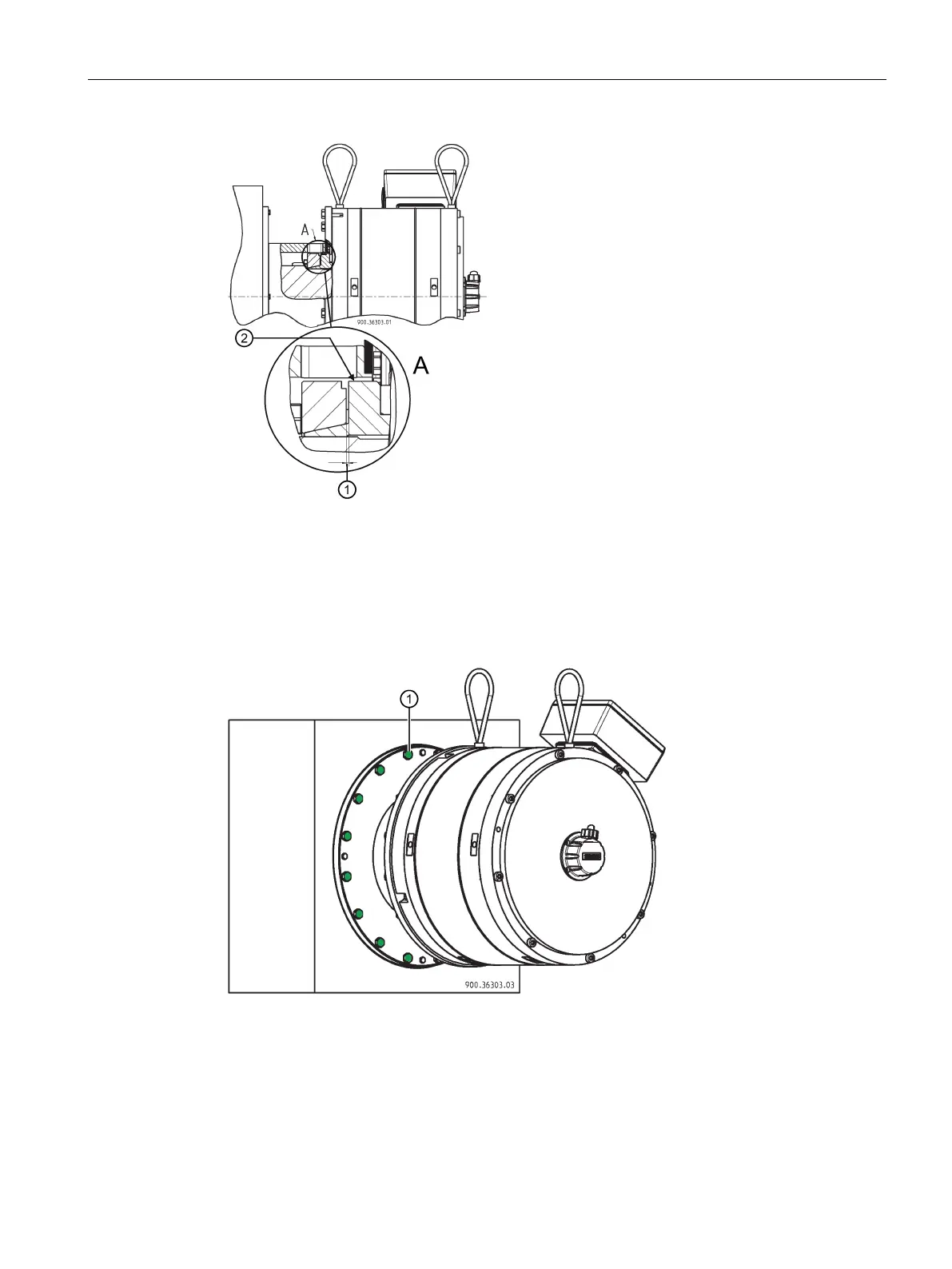

Figure 5-18 Check
4. Mounting the Siemens torque arm:
After successfully carrying out steps 1 – 3, screw the Siemens torque arm to the machine.
1
Mounting screws (all of the screws shown in green in this diagram)
Figure 5-19 Final mounting
The motor has been mounted.
❒
