Configuration
5.4 Mounting
1FW3 complete torque motors
120 Configuration Manual, 08/2020, A5E46027705B AA

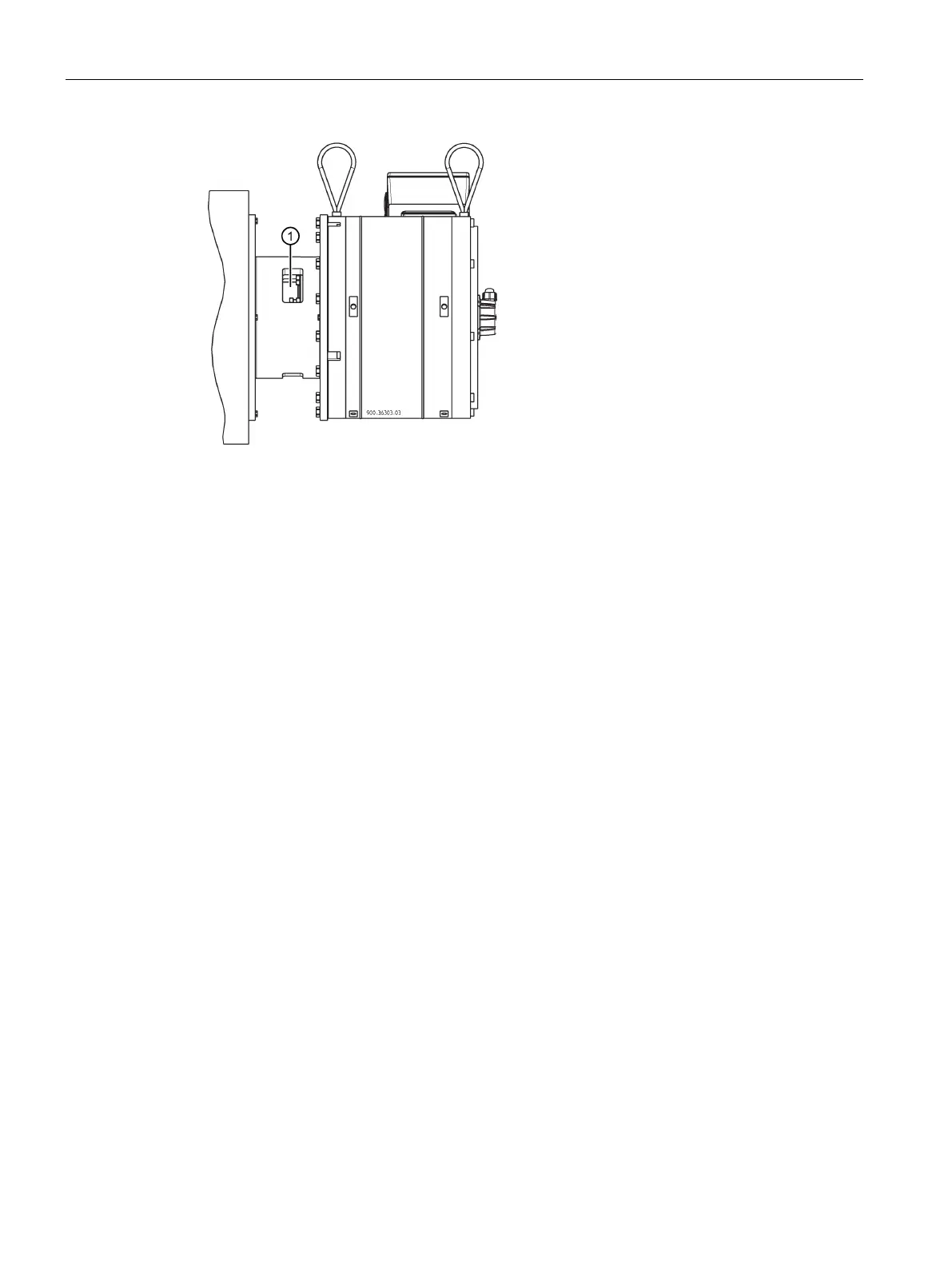

3 window to tighten the screws
Figure 5-17 Pre-mounting
3. Check the gap in the clamping element, and if required, measure the motor alignment (run
out):
● The gap between the two clamping element parts must be able to be identified around the
complete circumference.
● In order to achieve a higher smooth running quality, you can check the alignment of the
motor to the machine at the surface shown. If the deviation is too high, then alignment is
possible by tightening the clamping screws.
● For further information on checking, see the mounting instructions "Mounting sequence,
clamping elements of option +Q30" in Chapter "Shaft-side clamping element (Page 125)".
