Configuration
5.4 Mounting
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
119
2. Axially slide the motor onto the customer's flange:
● The motor is slid onto the shaft extension and is in the correct axial position when the
torque arm is located on the machine-side flange. The motor is
not axially positioned on
the shaft side.
● Tighten the clamping screws of the ring clamping element according to the mounting
instructions "Mounting sequence, clamping elements, option +Q30" in Chapter "Shaft-
side clamping element (Page 125)".
● You can rotate the motor using the shaft extension so that you can easily access the
screws.
Risk of injury caused by the motor falling
The motor center gravity is outside the motor axis.
• While it is being mounted, ensure that the motor cannot unintentionally drop.

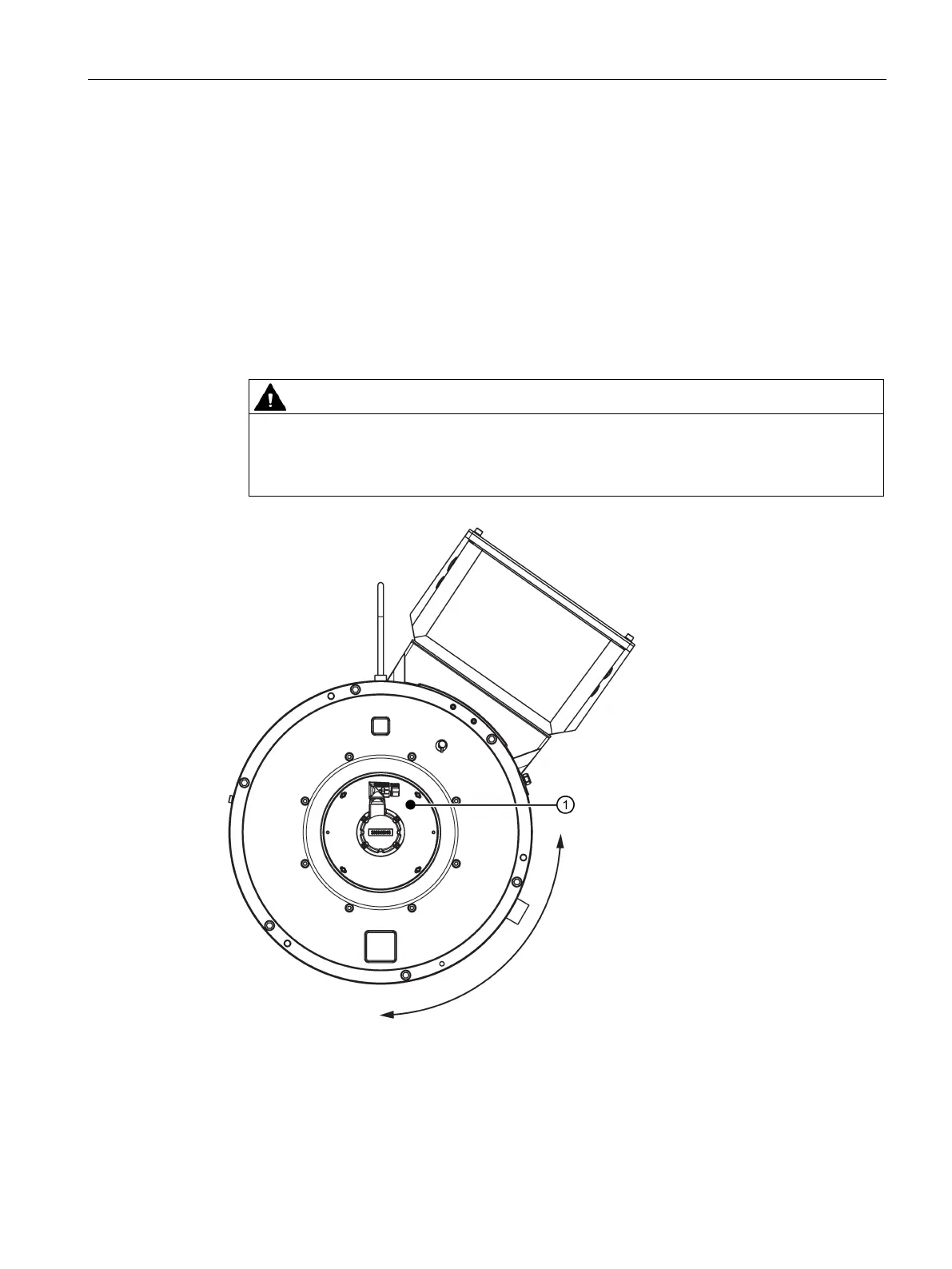

Center of gravity outside the motor axis
Figure 5-16 Center of gravity
