Siemens SIMOTICS T-1FW3 User Manual

Configuration
5.4 Mounting
1FW3 complete torque motors
118 Configuration Manual, 08/2020, A5E46027705B AA
Mounting sequence, Siemens torque arm with clamping element
Procedure
1. Check the rotor and prepare the shaft seat:
1
Clamping seat: must be free of any lubricant
2
Centering seat: Apply assembly paste, e.g. Molykot
3
Clamping screws (all of the screws shown in green in this diagram)
4
Forcing-off screws: Remain for removal, tightened as when originally delivered
5
The values are in the dimension drawings in this chapter

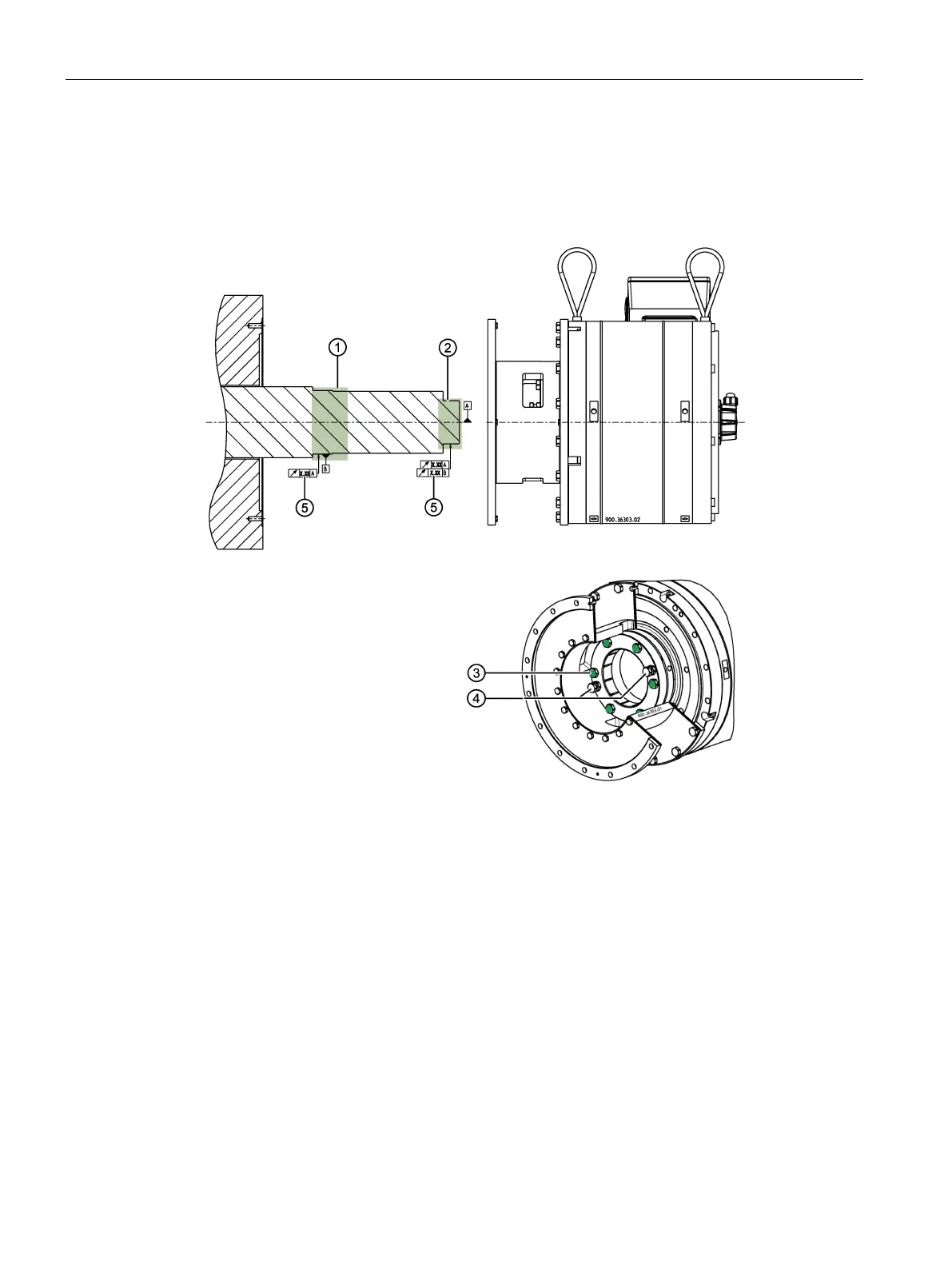

Figure 5-15 As delivered state and preparations for mounting
