Configuration
5.4 Mounting
1FW3 complete torque motors
128 Configuration Manual, 08/2020, A5E46027705B AA
Plug-on shaft with option +Q30
Available for motors 1FW315☐, 1FW320☐ and 1FW328☐ with plug-on shaft (15th position in
the Article No. = S)
Support at the DE with the seat integrated in order to facilitate centered mounting.
When the shaft journal is implemented according to dimension drawings
510.31315.01/510.33320.01/510.31396.01, then it is also possible to disassemble using
forcing-off screws.

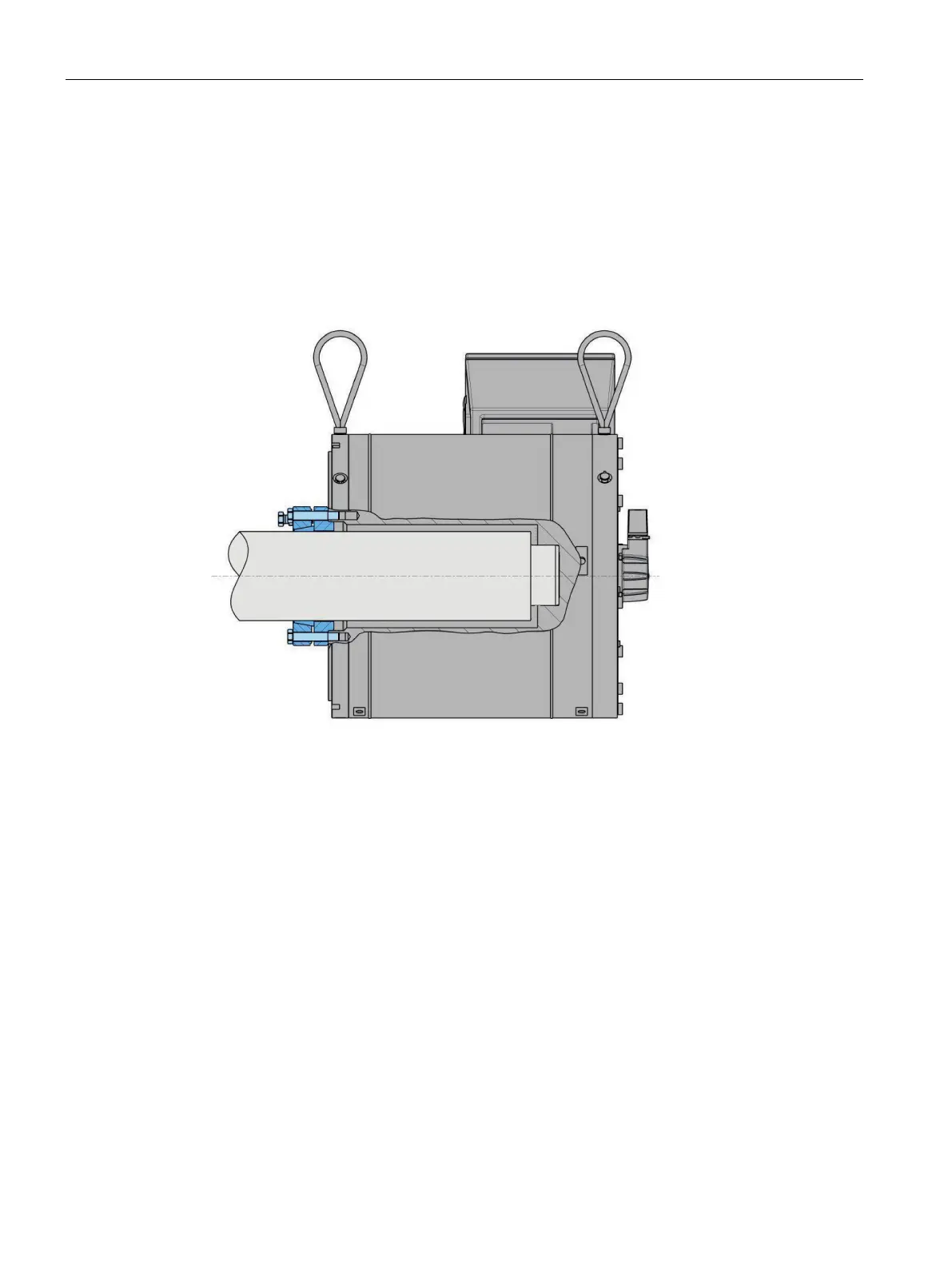

Figure 5-23 Plug-on shaft clamping element
