Configuration
5.4 Mounting
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
129

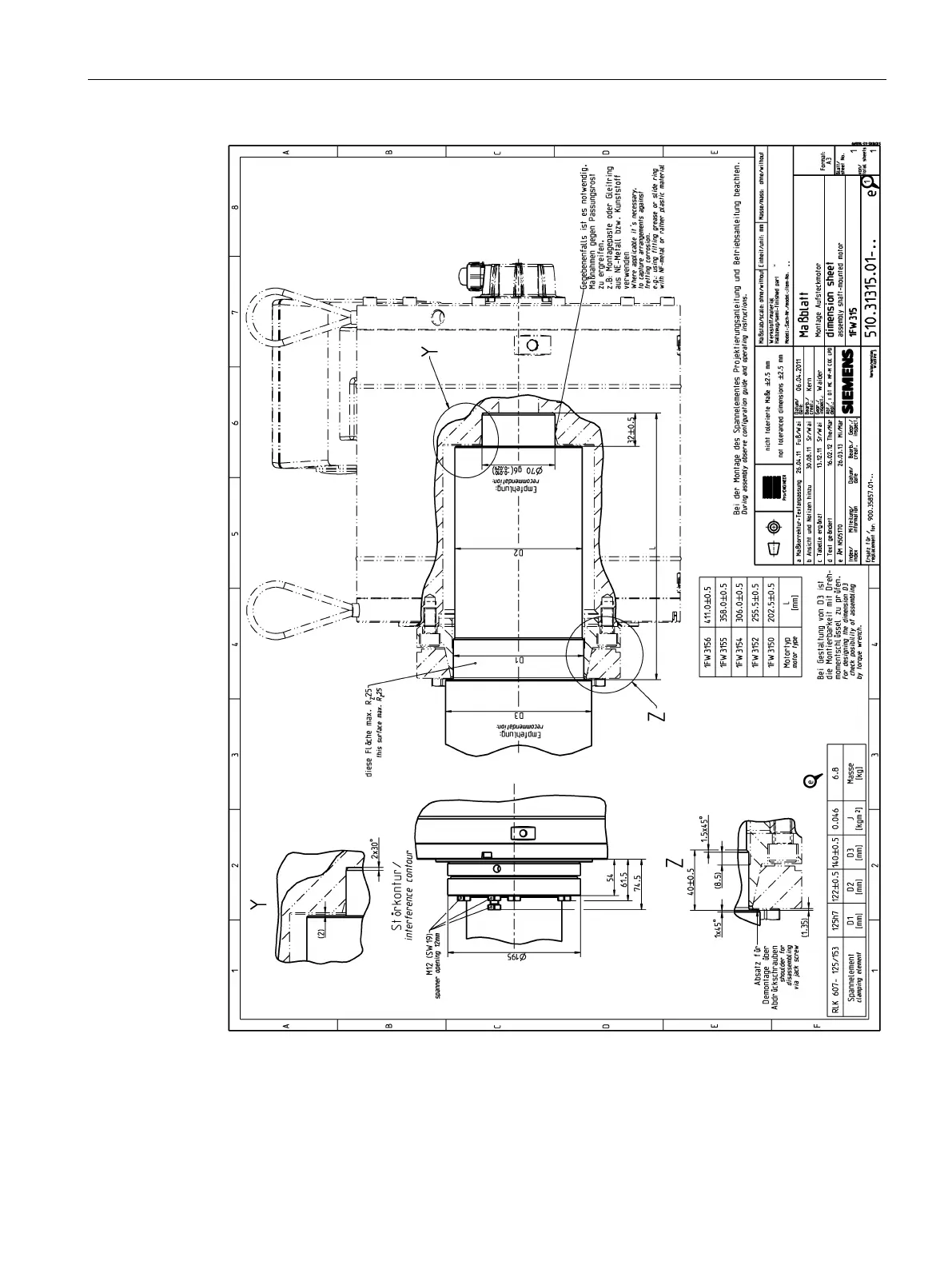

Figure 5-24 Dimension drawing, mounting plug-on motor 1FW315
