Electrical connection
8.3 System integration
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
309
1
Terminal

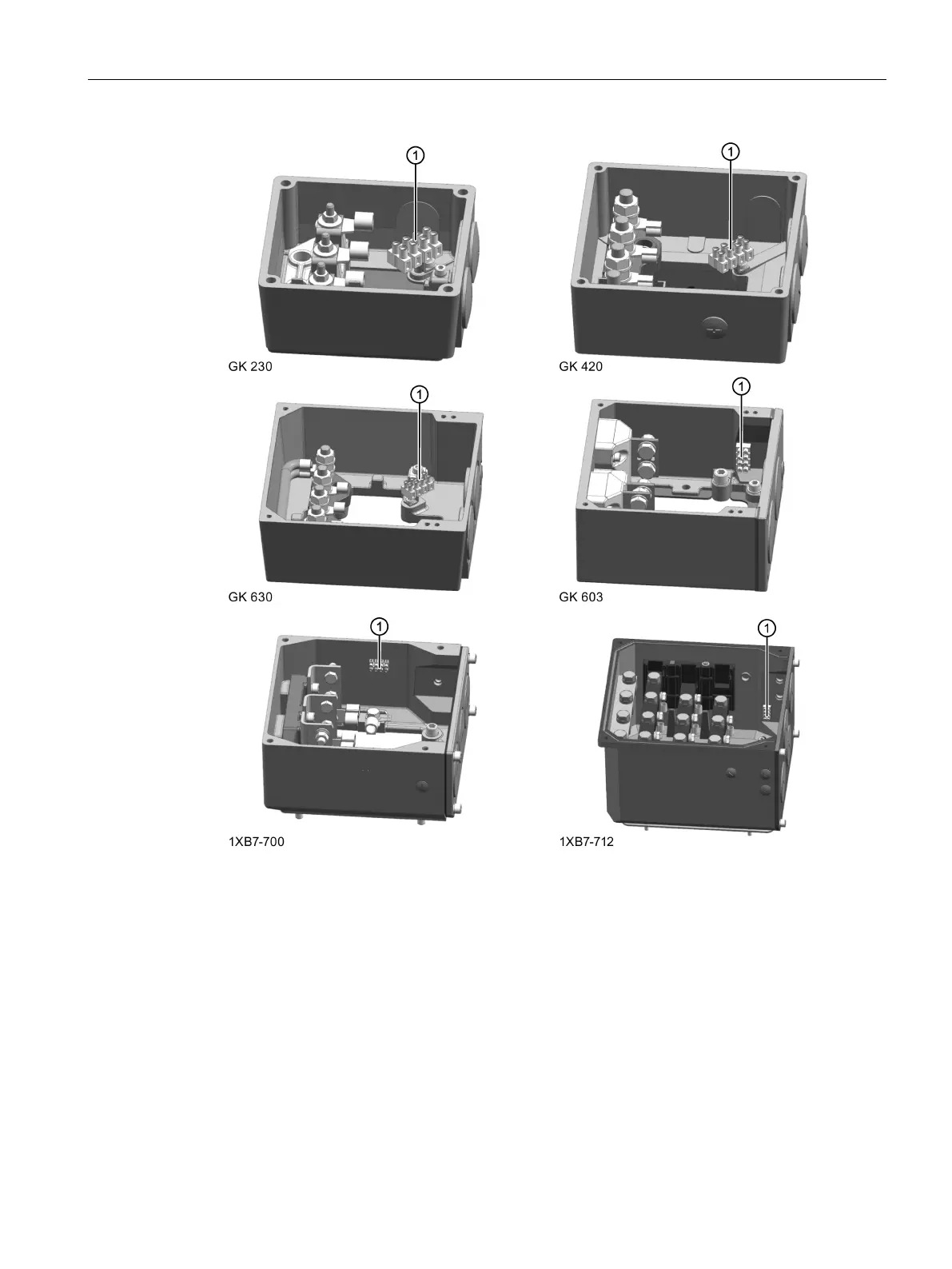

Figure 8-9 Connection for 3 x PTC
