Electrical connection
8.3 System integration
1FW3 complete torque motors
310 Configuration Manual, 08/2020, A5E46027705B AA
Connection schematic for temperature sensors

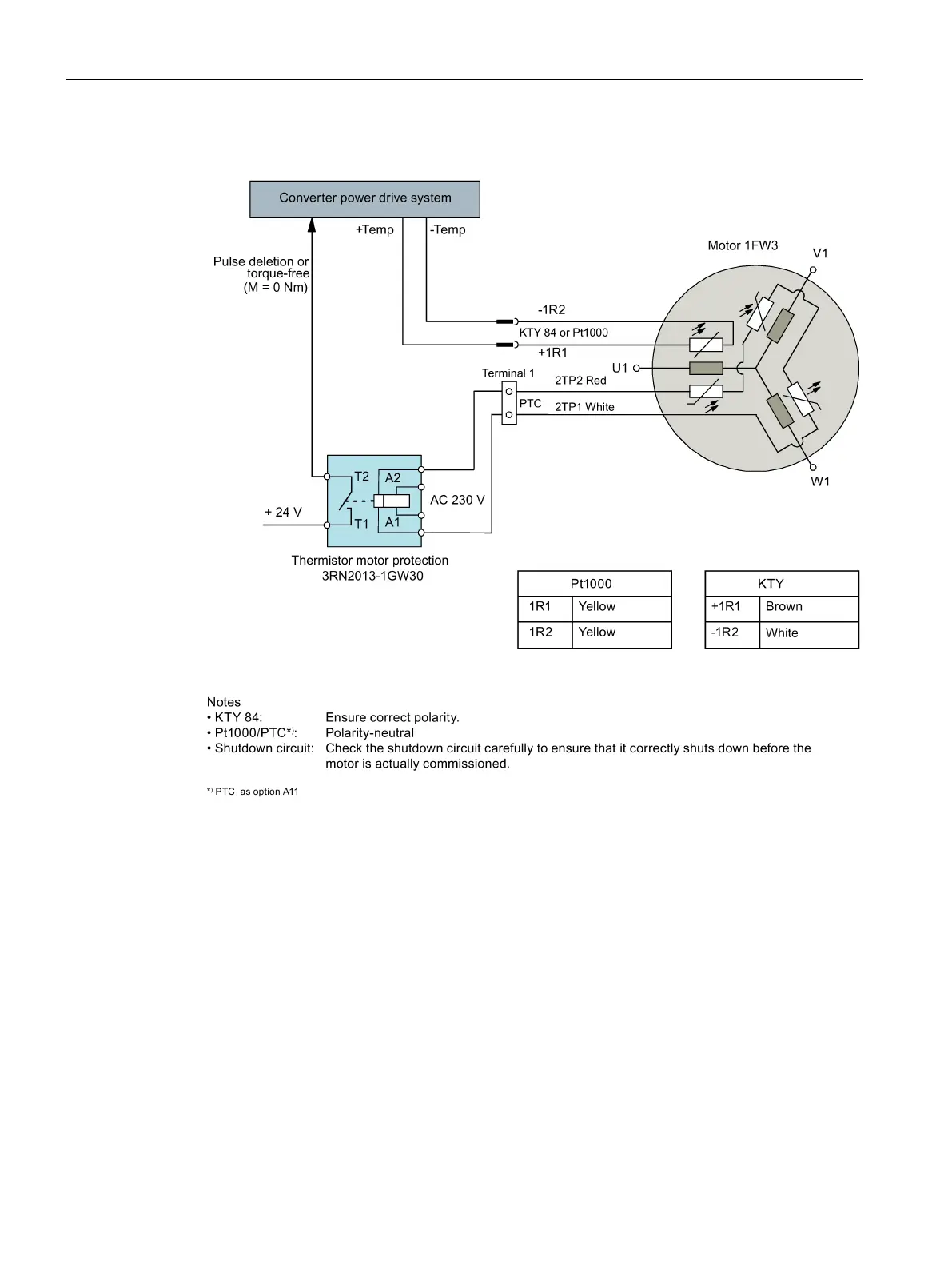

Figure 8-10 Connection schematic for temperature sensors (without SMI)
