Siemens SIMOTICS T-1FW3 User Manual

Installation drawings/Dimension drawings

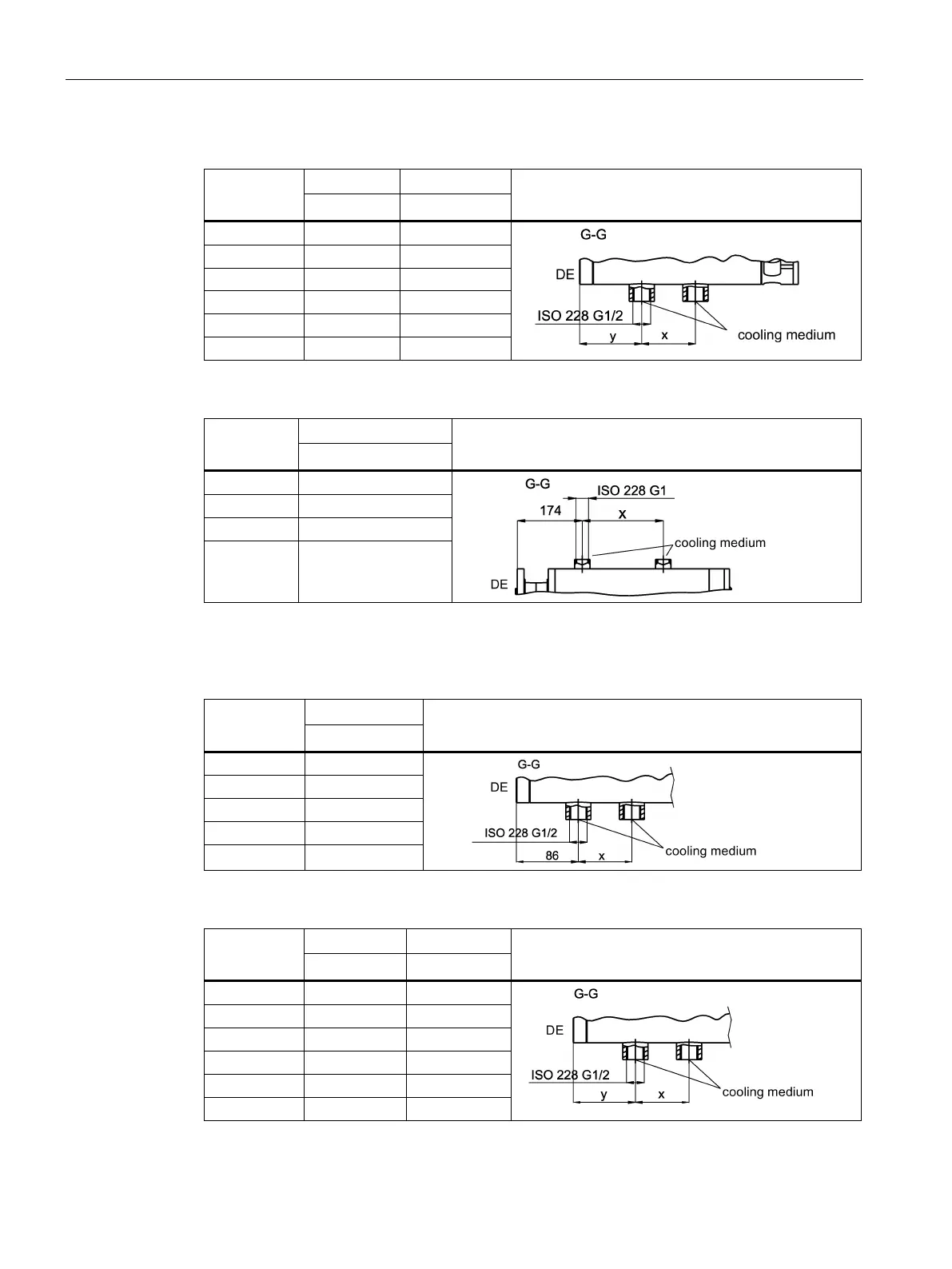

9.2 Dimension drawings
1FW3 complete torque motors
338 Configuration Manual, 08/2020, A5E46027705B AA
Table 9- 24 SH200
Version
x
y
Dimension sketch
[mm]
[mm]
1FW3201
48.5
67.5
1FW3202
94.5
67.5
1FW3203
137.0
69.5
1FW3204
206.0
69.5
1FW3206
298.5
69.5
1FW3208
413.5
69.5
Table 9- 25 SH280
Version
x
Dimension sketch
[mm]
1FW3281
217.0
1FW3283
301.5
1FW3285
427.5
1FW3287 596.0
Solid shaft
Table 9- 26 SH150
Version
x
Dimension sketch
[mm]
1FW3150 68.0
1FW3152
97.5
1FW3154
152.5
1FW3155
201.0
1FW3156 255.0
Table 9- 27 SH200
Version
x
y
Dimension sketch
[mm]
[mm]
1FW3201
48.5
89.5
1FW3202
94.5
89.5
1FW3203
137
91.5
1FW3204
206
91.5
1FW3206
298.5
91.5
1FW3208
413.5
91.5
