Siemens SIMOTICS T-1FW3 - Page 341

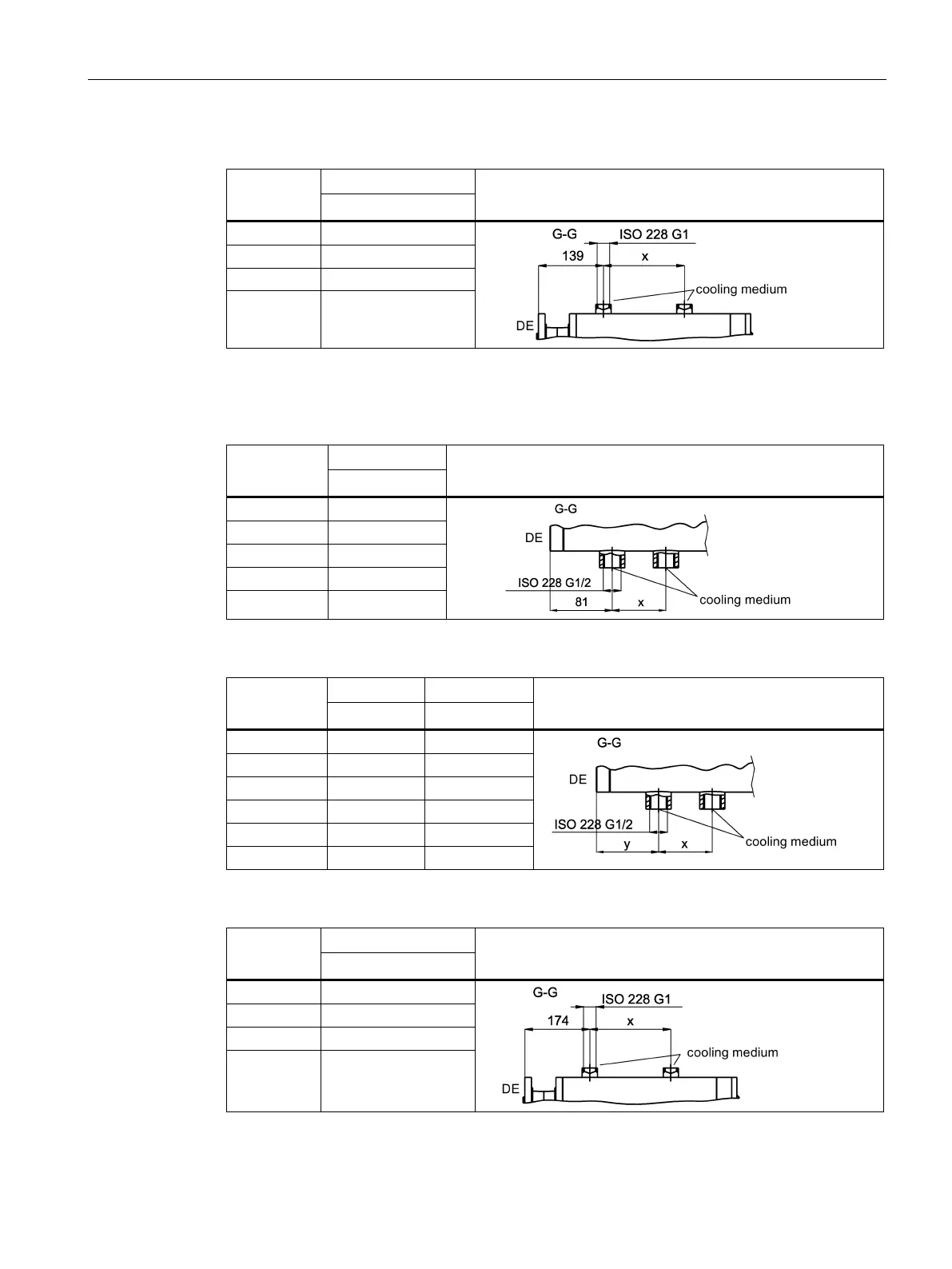

Installation drawings/Dimension drawings
9.2 Dimension drawings
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
339
Table 9- 28 SH280
Version
x
Dimension sketch
[mm]
1FW3281
217.0
1FW3283
301.5
1FW3285
427.5
1FW3287 596.0
Plug-on shaft
Table 9- 29 SH150
Version
x
Dimension sketch
[mm]
1FW3150
68
1FW3152
125
1FW3154
174
1FW3155
226
1FW3156 279
Table 9- 30 SH200
Version
x
y
Dimension sketch
[mm]
[mm]
1FW3201
48.5
79.5
1FW3202
94.5
79.5
1FW3203
137
81.5
1FW3204
206
81.5
1FW3206
298.5
81.5
1FW3208
413.5
81.5
Table 9- 31 SH280
Version
x
Dimension sketch
[mm]
1FW3281
217
1FW3283
301.5
1FW3285
427.5
1FW3287 596
