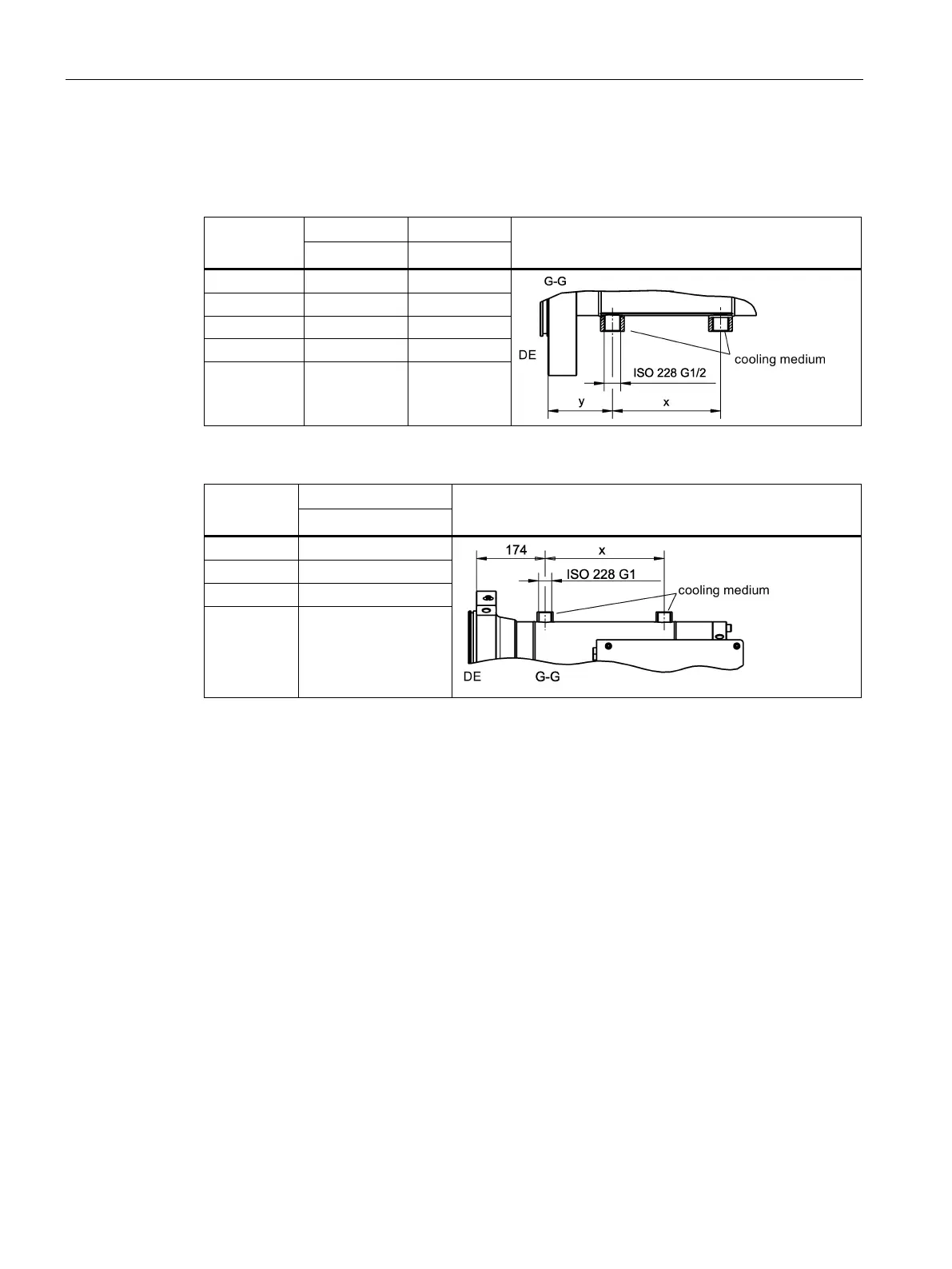

Installation drawings/Dimension drawings
9.2 Dimension drawings
1FW3 complete torque motors
340 Configuration Manual, 08/2020, A5E46027705B AA
Heavy Duty
Table 9- 32 SH200
Version
x
y
Dimension sketch
[mm]
[mm]
1FW3202
94.5
79.5
1FW3203
137
81.5
1FW3204
206
81.5
1FW3206
298.5
81.5
1FW3208 413.5 81.5
Table 9- 33 SH280
Version
x
Dimension sketch
[mm]
1FW3281
217.0
1FW3283
301.5
1FW3285
427.5
1FW3287 596.0
