Installation drawings/Dimension drawings
9.2 Dimension drawings
1FW3 complete torque motors
Configuration Manual, 08/2020, A5E46027705B AA
341

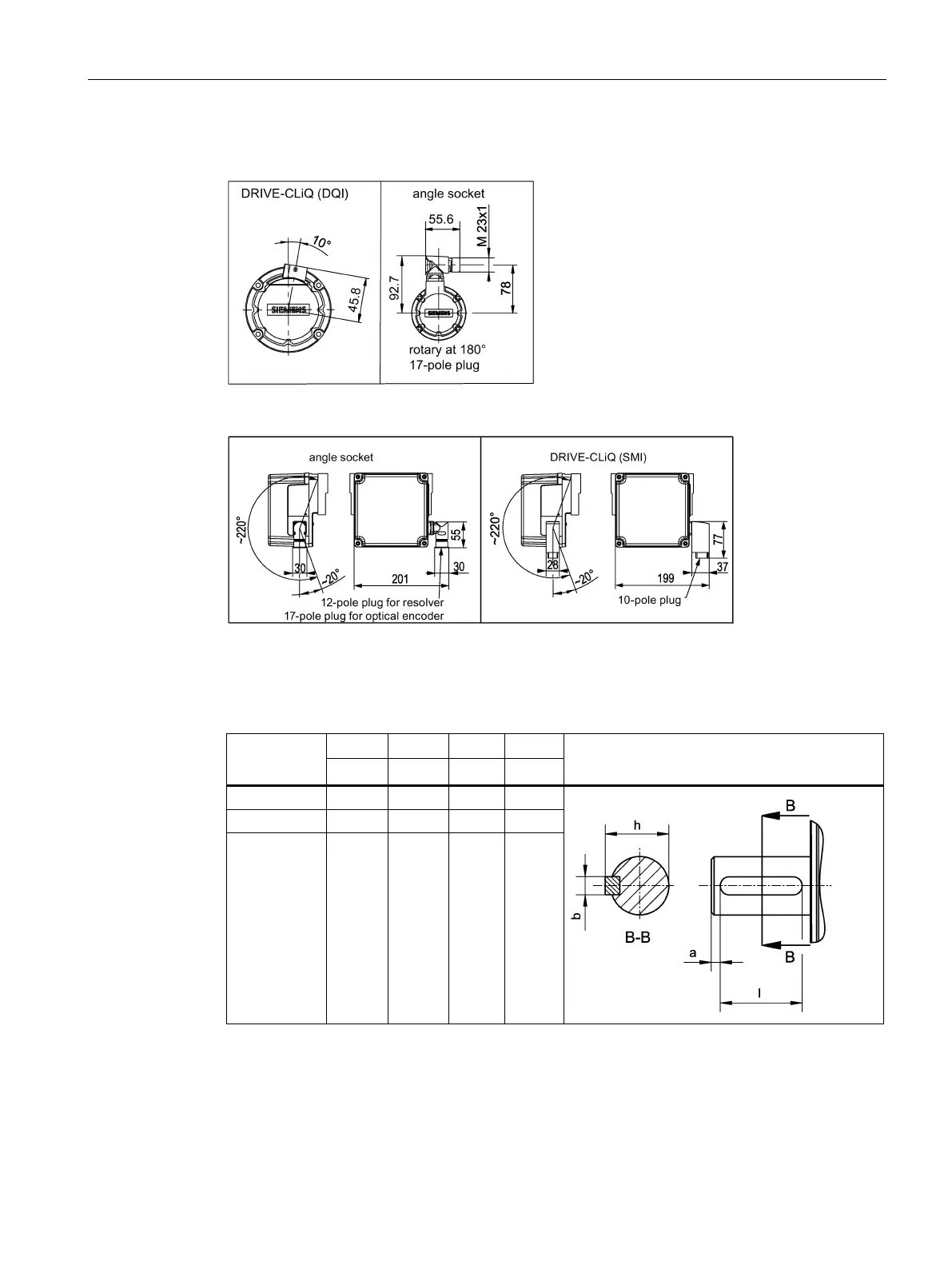

Encoder connection
Figure 9-13 Direct encoder mounting
Figure 9-14 Belt-driven encoder
Shaft with feather key
Version
a
l
b
h
Dimension sketch
[mm]
[mm]
[mm]
[mm]
1FW315☐
10
110
18
69
1FW320☐
10
140
25
95
1FW328☐ 15 180 32 127
Feather key, tolerance according to DIN 6885-1
