Commissioning
5.5 First commissioning
Drive converter cabinet units
160 Operating Instructions, 07/07, A5E00288214A
5.5.2 Basic commissioning
Entering the motor data
During initial commissioning, you have to enter motor data using the operator panel. Use the
data shown on the motor type plate.

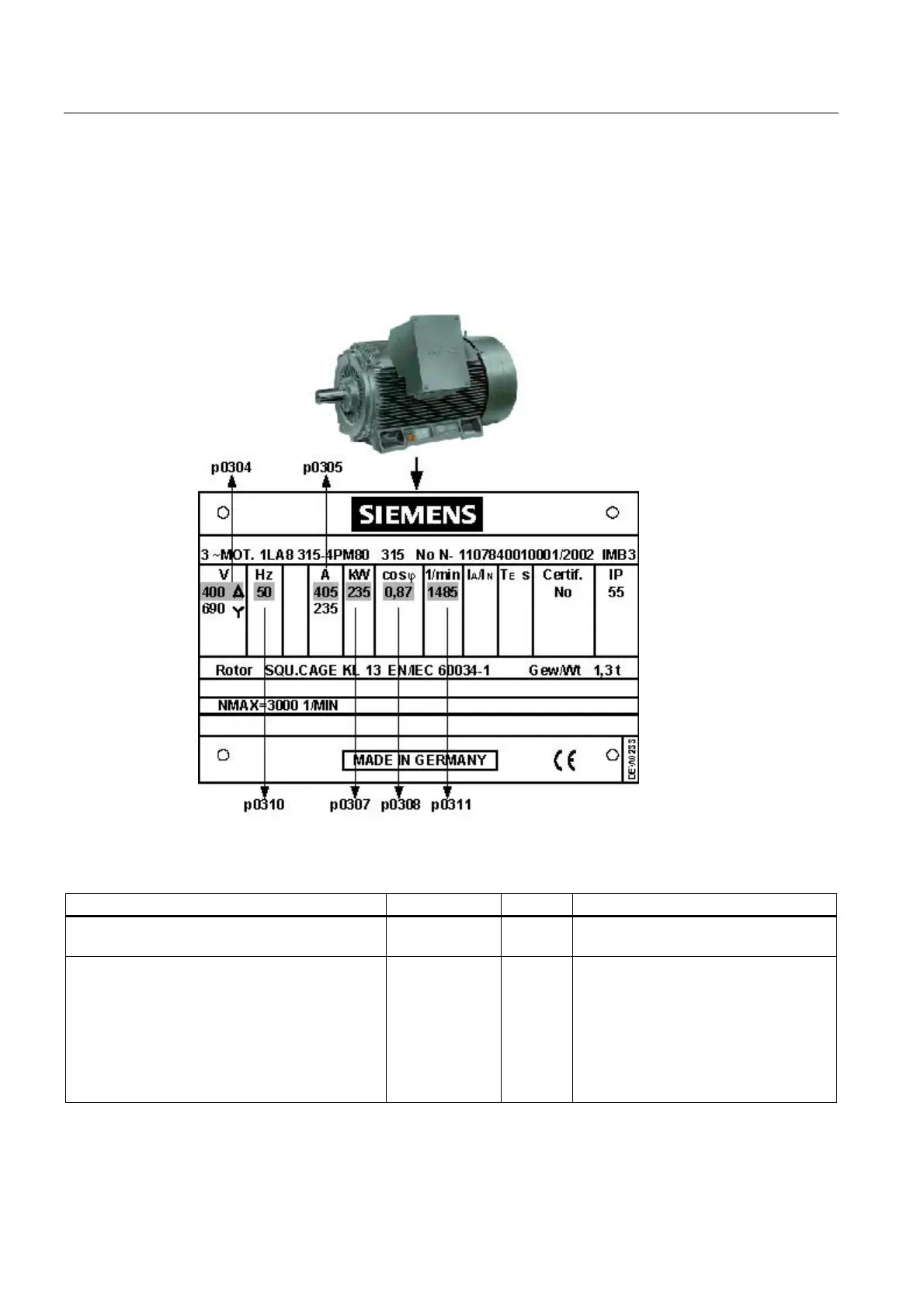

Figure 5-38 Example of a motor type plate
Table 5-1 Motor data
Parameter no. Values Unit
System of units for line frequency and entering
motor data
p0100 0
1
IEC [50 Hz / kW]
NEMA [60 Hz / hp]
Motor:
Rated voltage
Rated current
Rated output
Rated power factor Cos (at p0100 = 0 only)
Rated efficiency (at p0100 = 1 only)
Rated frequency
Rated speed
p0304
p0305
p0307
p0308
p0309
p0310
p0311
[V]
[A]
[kW] / [hp]
[%]
[Hz]
[min-1] / [rpm]
