Siemens SINAMICS S150 - Speed Controller Adaptation

Setpoint channel and closed-loop control
7.4 Vector speed/torque control with/without encoder
Drive converter cabinet units
284 Operating Instructions, 07/07, A5E00288214A
7.4.3.4 Speed controller adaptation
Description
Two adaptation methods are available, namely free Kp_n adaptation and speed-dependent
Kp_n/Tn_n adaptation.
Free Kp_n adaptation is also active in "operation without encoder" mode and is used in
"operation with encoder" mode as an additional factor for speed-dependent Kp_n adaptation.
Speed-dependent Kp_n/Tn_n adaptation is only active in "operation with encoder" mode and
also affects the Tn_n value.
p 1459
y
x
p 1456 p 1457
( 1 )
p 1466
( 0 )
p 1455
p 1458
x
p1400.0
1
0
1
0
1
0
p1400.6
p 1460
p 1470
p 1462
p 1472
1
0
1
1
p14 64
p14 65
p 1461
p 1463
1
0
p1400.5
0
1
p1400.5
.SBQBDGDSW
$GDSWDWLRQVLJQDO
WRVSHHG
FRQWUROOHU
6SHHGGHSHQGHQW
7QBQDGDSWDWLRQ
5HGXFWLRQLQG\QDPLF
UHVSRQVH
)LHOGZHDNHQLQJ
(QFRGHUOHVVYHFWRUFRQWURO
RQO\
6SHHGGHSHQGHQW
.SBQDGDSWDWLRQ
(QFRGHUOHVV
YHFWRUFRQWURO
DFWLYH
$GDSWDWLRQVLJQDO
UHIHUUHGWR
S[RUS[
7QBQBDGDSW

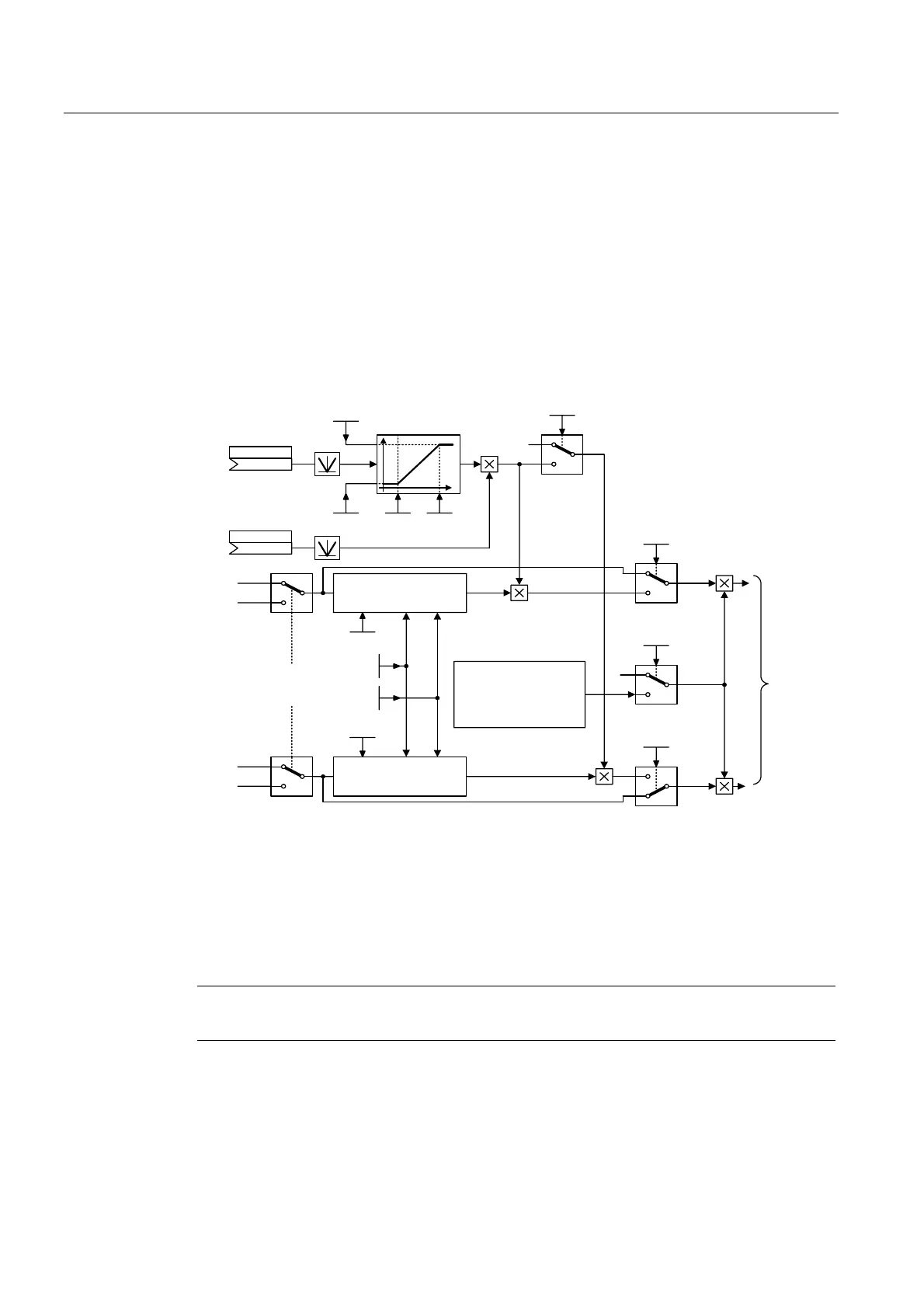

Figure 7-13 Free Kp adaptation
A dynamic response reduction in the field-weakening range can be activated in encoderless
operation (p1400.0). This is activated when the speed controller is optimized in order to
achieve a greater dynamic response in the base speed range.
Example of speed-dependent adaptation
Note
This type of adaptation is only active in "operation with encoder" mode.
