Maintenance and servicing
11.4 Replacing compone
nts
Drive converter cabinet units
456
Operating Instructions, 07/07, A5E00288214A

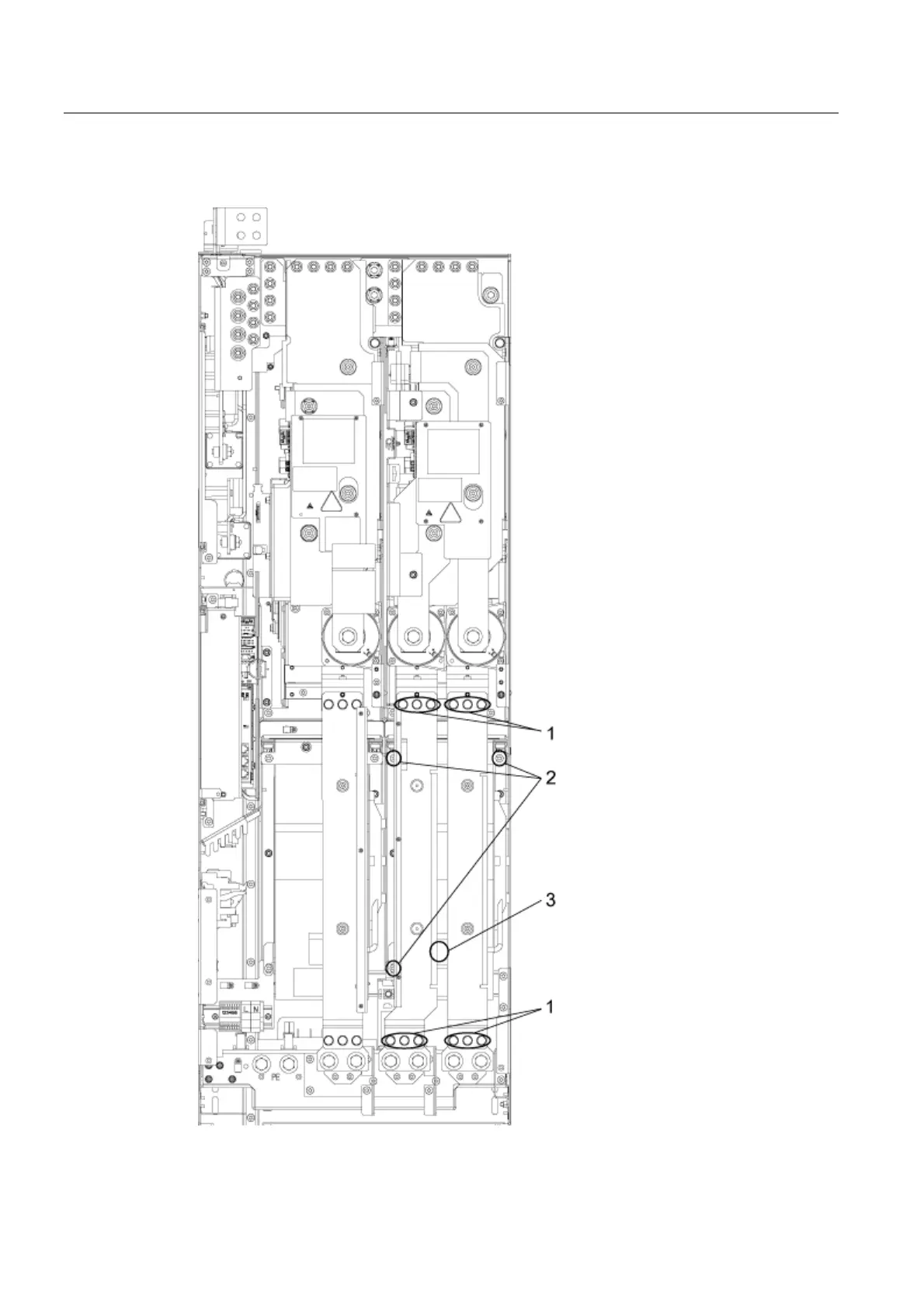

Replacing the fan (right-hand power block)
Figure 11-16
Replaci
ng the fan
(frame size HX)
(right-hand pow
e
r block)
455
457
