Siemens SINUMERIK 840D

9
08.97 Path Traversing Behavior
9.2 Cou
p
led motion TRAILON
,
TRAILOF
9
840D
NCU 571
840D
NCU 572
NCU 573
FM-NC 810D 840Di

Siemens AG 2000. All rights reserved
SINUMERIK 840D/840Di/810D/FM-NC Programming Guide Advanced (PGA) – 04.00 Edition
9-307
9.2 Coupled motion TRAILON, TRAILOF
Programming
TRAILON(FAxis,LAxis,Coupling)
TRAILOF(FAxis,LAxis,Axis2)
Explanation of the commands and parameters
TRAILON
Activate and define coupled axes; modal
TRAILOF
Deactivate coupled axes
FAxis
Axis name of trailing axis
LAxis
Axis name of trailing axis
Coupling
Coupling factor = Path of coupled-motion axis/path of trailing axis
Default = 1
Function
When a defined leading axis is moved, the trailing
axes (= following axes) assigned to it traverse
through the distances described by the leading axis,
allowing for a coupling factor.
Together, the leading axis and following axis
represent coupled axes.
Applications
•
Traversing of an axis by a simulated axis. The
leading axis is a simulated axis and the trailing
axis is a real axis. The real axis can thus be
traversed with allowance for the coupling factor.
•

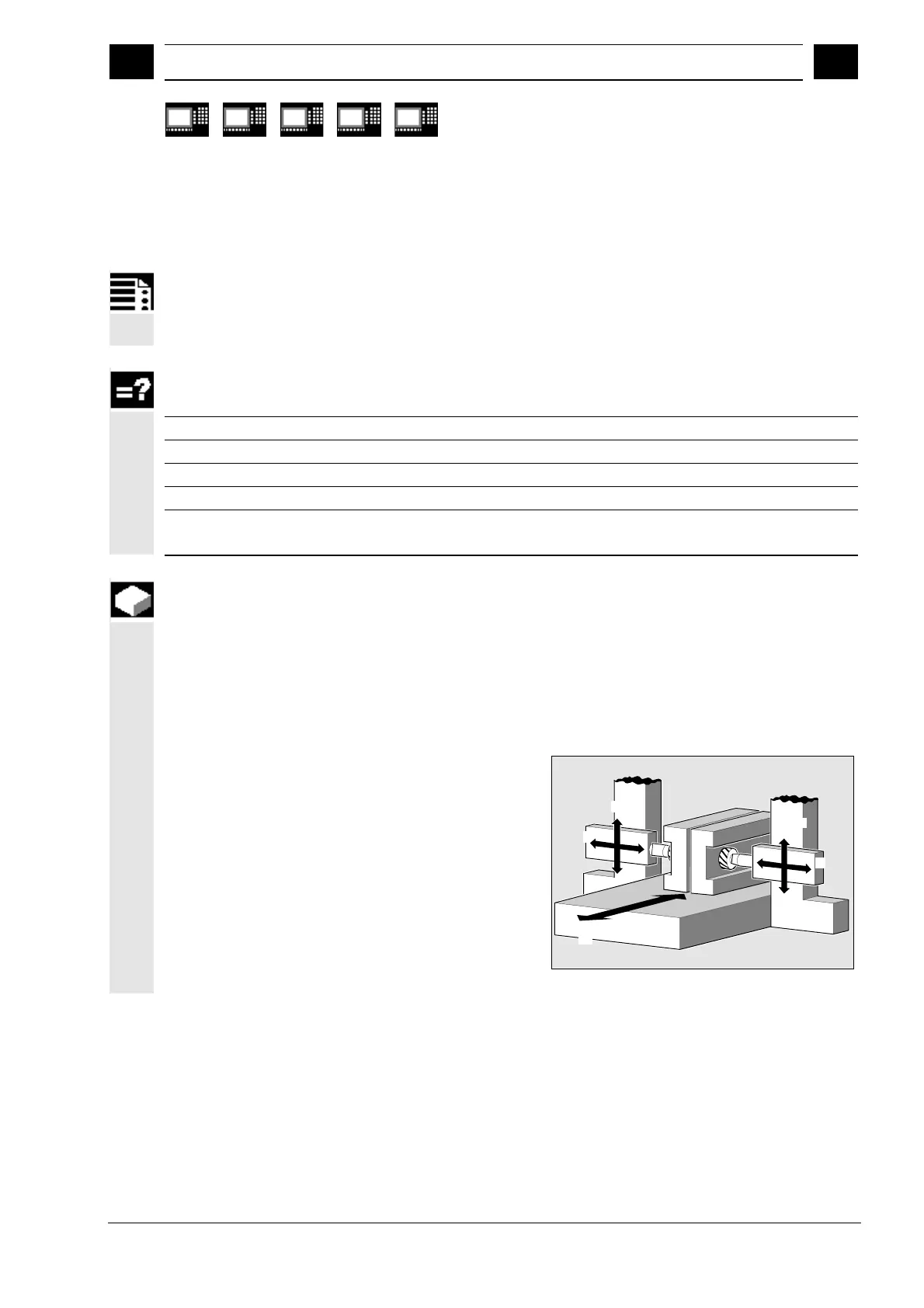

Two-sided machining with 2 combined axis pairs:
1st leading axis Y, trailing axis V
2nd leading axis Z, trailing axis W
Axis
Axis
Axis
Axis
Axis
X
Y
Z
V
W
