Siemens SINUMERIK 840D Programming Guide

9
08.97 Path Traversing Behavior
9.4 Axial leadin
g
value cou
p
lin
g,
LEADON
,
LEADOF
9
840D
NCU 571
840D
NCU 572
NCU 573
810D 840Di

Siemens AG 2000. All rights reserved
SINUMERIK 840D/840Di/810D/FM-NC Programming Guide Advanced (PGA) – 04.00 Edition
9-319

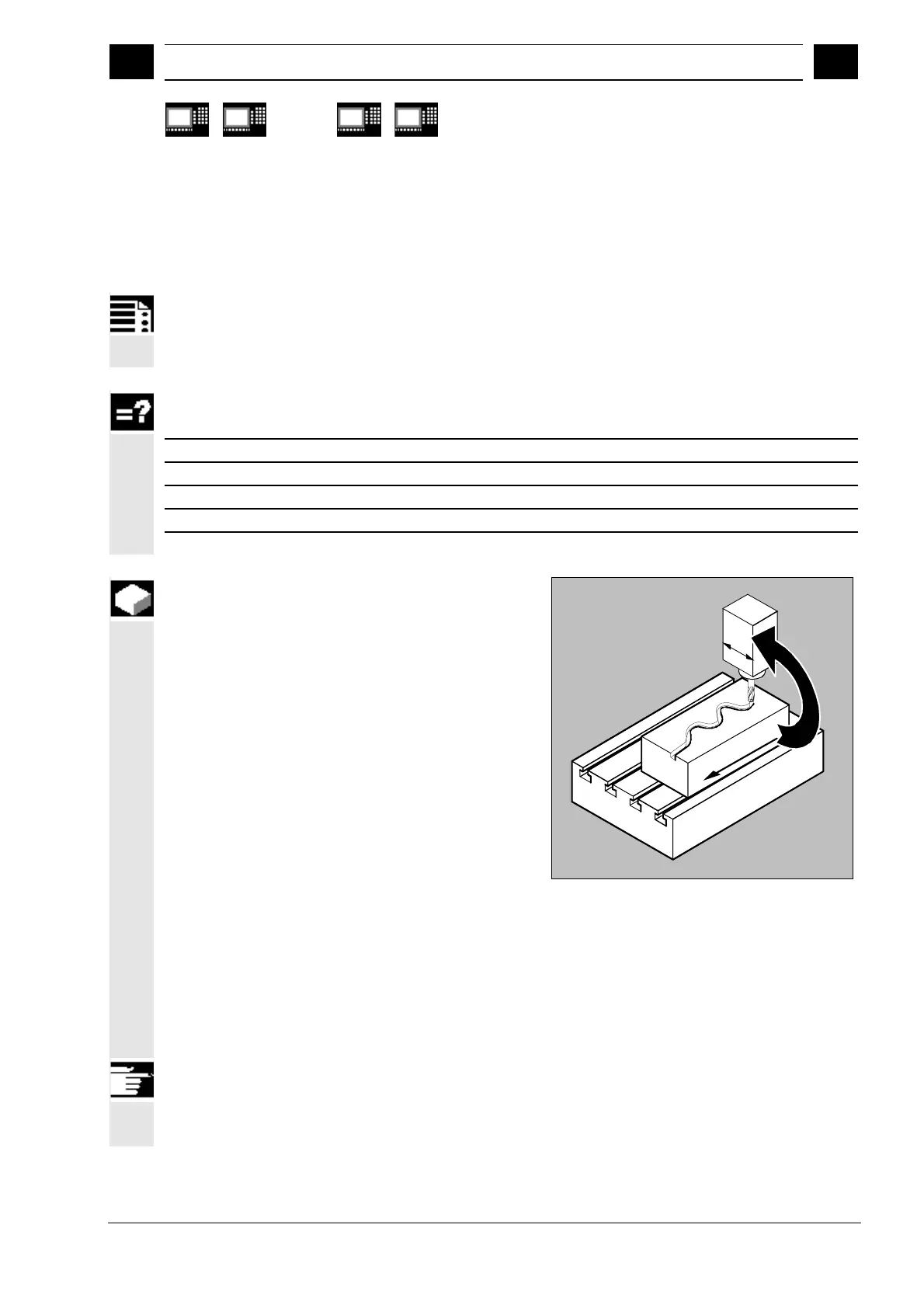

9.4 Axial leading value coupling, LEADON, LEADOF
Programming
LEADON(FAxis,LAxis,n)
LEADOF(FAxis,LAxis,n)
Explanation
LEADON
Activate leading value coupling
LEADOF
Deactivate leading value coupling
FAxis
Following axis
LAxis
Leading axis
n
Curve table number
Function
With the axial leading value coupling, a leading and
a following axis are moved in synchronism. It is
possible to assign the position of the following axis
via a curve table or the resulting polynomial uniquely
to a position of the leading axis – simulated if
necessary.
Leading axis
is the axis which supplies the input
values for the curve table.
Following axis
is the axis which takes the positions
calculated by means of the curve table.
X
Y
The leading value coupling can be activated and
deactivated both from the part program and during
the movement from synchronized actions.
The leading value coupling always applies in the
basic coordinate system.
For information about creating curve table, see Chapter
"Curve tables" in this chapter.
For information about leading value coupling, see /FB/,
M3, Coupled Motion and Leading Value Coupling.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
