4. Set the "3.YWAY" parameter to determine the total stroke in mm. The setting of parameter
3 is optional. The display shows the determined total stroke at the end of the initialization
phase.
– Press the button if you do not require any information about the total stroke in mm.
You then reach parameter 4.

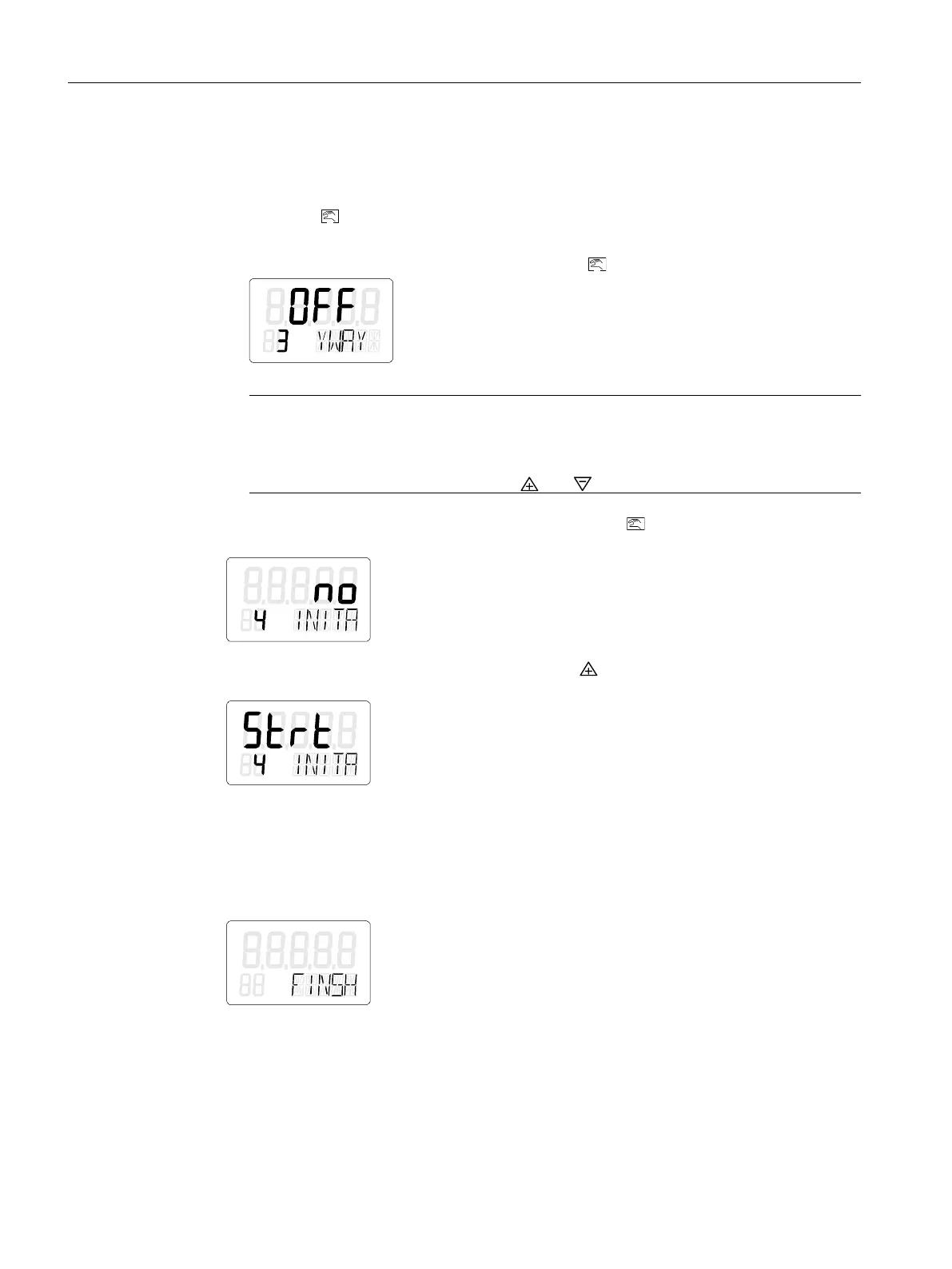

– Call the "3.YWAY" parameter. To do this, press . The display shows the following:
Note
Set the "3.YWAY" parameter
1. On the scale of the lever, read the value marked by the carrier pin.
2. Set the parameter with the buttons and to the read value.
5. Call the "4.INITA" parameter. To do this, briefly press the button. The display shows the
following:
6. Start the initialization process. To do this, keep the button pressed for at least 5 seconds
until the display shows the following:
The positioner runs through five initialization steps during the automatic initialization
process. The displays for the initialization steps from "RUN 1" to "RUN 5" are located in the
lower line of the display. The initialization process depends on the actuator used, and takes
up to 15 minutes.
7. The following display indicates that the automatic initialization is complete:
See also
Sequence of automatic initialization (Page 109)
Commissioning
7.10 Commissioning linear actuators
SIPART PS2 with 4 to 20 mA/HART
120 Operating Instructions, 11/2019, A5E00074631-AE
