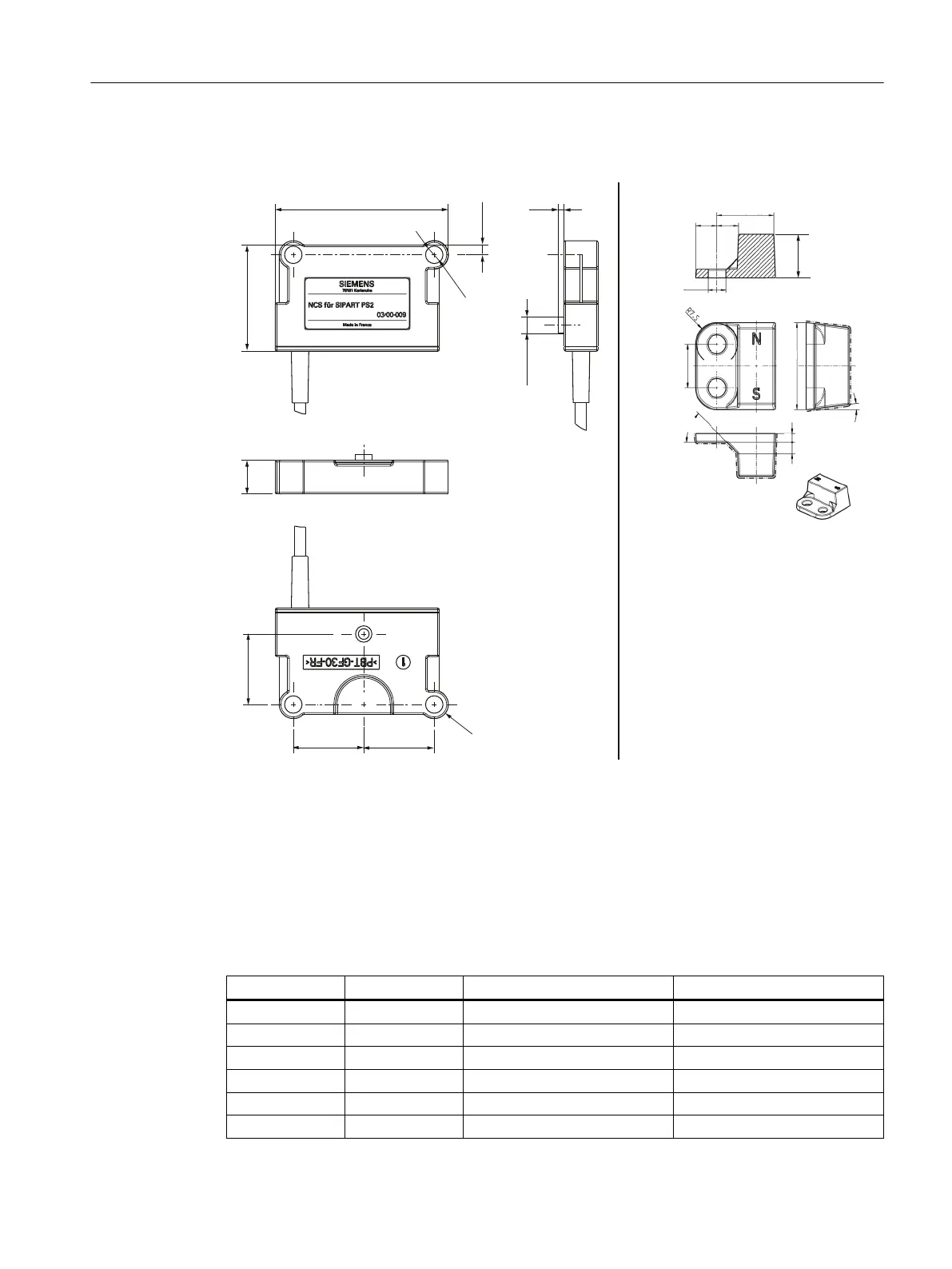

B.2.6 Dimensional drawing of non-contacting sensor





r













5

%$
A NCS B Magnet
Figure B-8 Dimensional drawing of the NCS and magnet
B.2.7 NCS sensor scope of delivery
B.2.7.1 Scope of delivery of NCS for part-turn actuators
6DR4004-.N.10 6DR4004-.N.40
Quantity Quantity Name Note
1 1 Magnet clamp
5 5 Washer 6
2 2 Hex socket head screw M6x12
1 - Plastic washer
1 1 Magnet
External position detection
B.2 Non-Contacting Sensor
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 285

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
