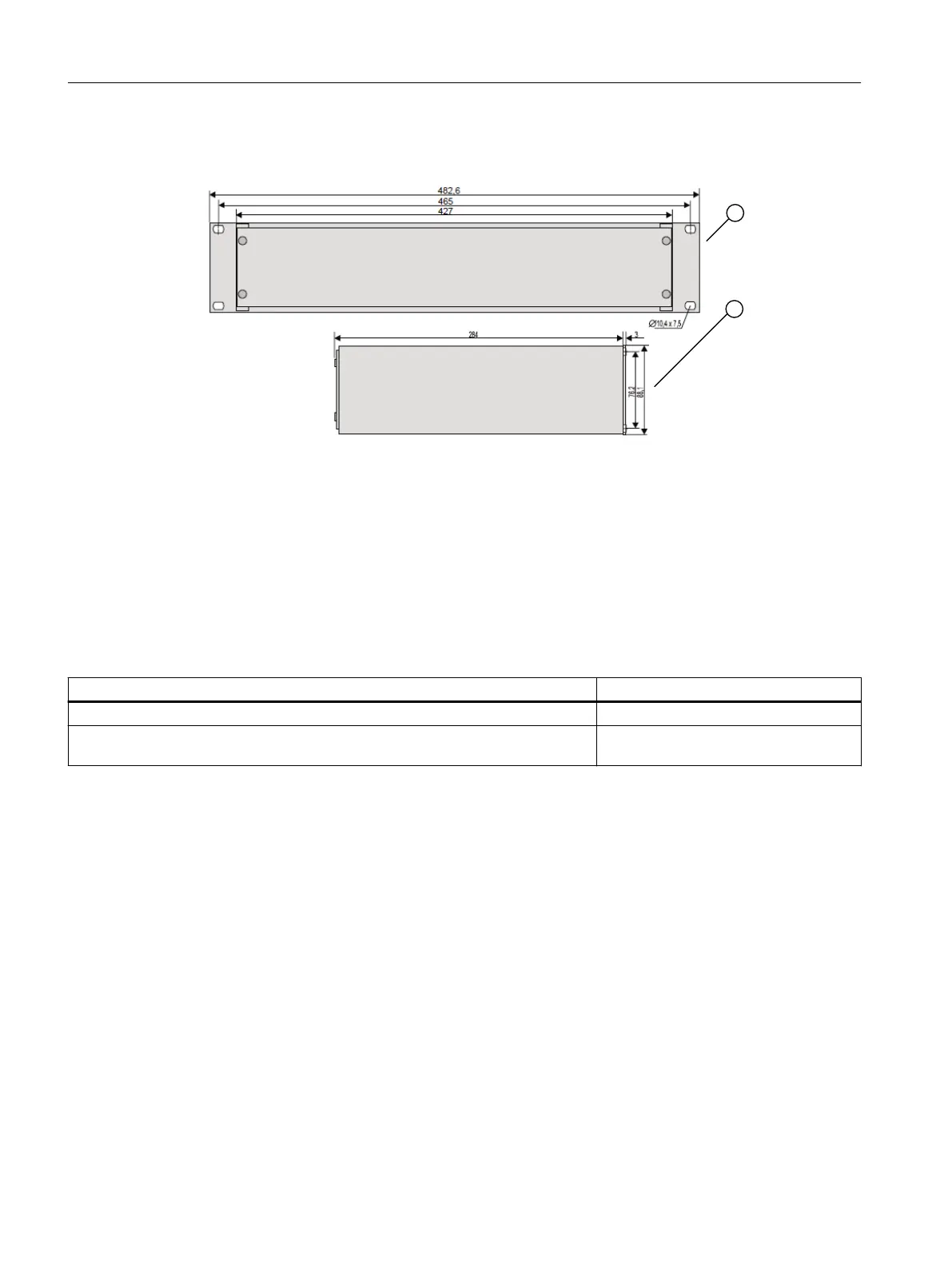

F.2.4 Dimensional drawing of 19" slide-in module 4 to 20 mA


① Rear view ② Side view
Figure F-5 19" slide-in module 4 to 20 mA, dimensions in mm
The dimensions of the positioner without basic electronics 6DR5910 correspond to the
dimensions 6DR5..0. You can find these dimensions in the Positioner in non-flameproof
enclosure (Page 257) section.
F.2.5 Scope of delivery of remote control electronics
Description Article number
19" slide-in module as 4 to 20 mA version, aluminum, 3 channels, non-Ex A5E00151560
SIPART PS2 without basic electronics, single-acting, polycarbonate enclosure,
non-Ex
6DR5910-...
See also
Spare parts (Page 263)
F.3 Positioner without basic electronics 6DR5910
This component is a positioner without basic electronics (6DR5910). Commissioning is only
possible in conjunction with a basic electronics component in the form of a 19" slide-in module.
The positioner without basic electronics is available in the device version in polycarbonate
enclosure, single-acting.
The following section describes how you mount, connect and commission the positioner
without basic electronics.
Positioner with remote control electronics
F.3 Positioner without basic electronics 6DR5910
SIPART PS2 with 4 to 20 mA/HART
318 Operating Instructions, 11/2019, A5E00074631-AE

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
