B.2.7.3 Scope of delivery of NCS for linear actuators > 14 mm (0.55 inch) .
Linear actuator > 14 mm (0.55 inch) 6DR4004-.N.30
Quantity Designation Notes
1 NCS assembly kit, completely
assembled
Mounting by means of assembly kit for NAMUR linear
actuators
Mounting kit available on separate order, see 'Accessor‐
ies' in Catalog FI 01.
 >@
 >@  >@
 >@
 >@
[
>@

>@

>@

>@

>@

>@

>@

>@
[
>@




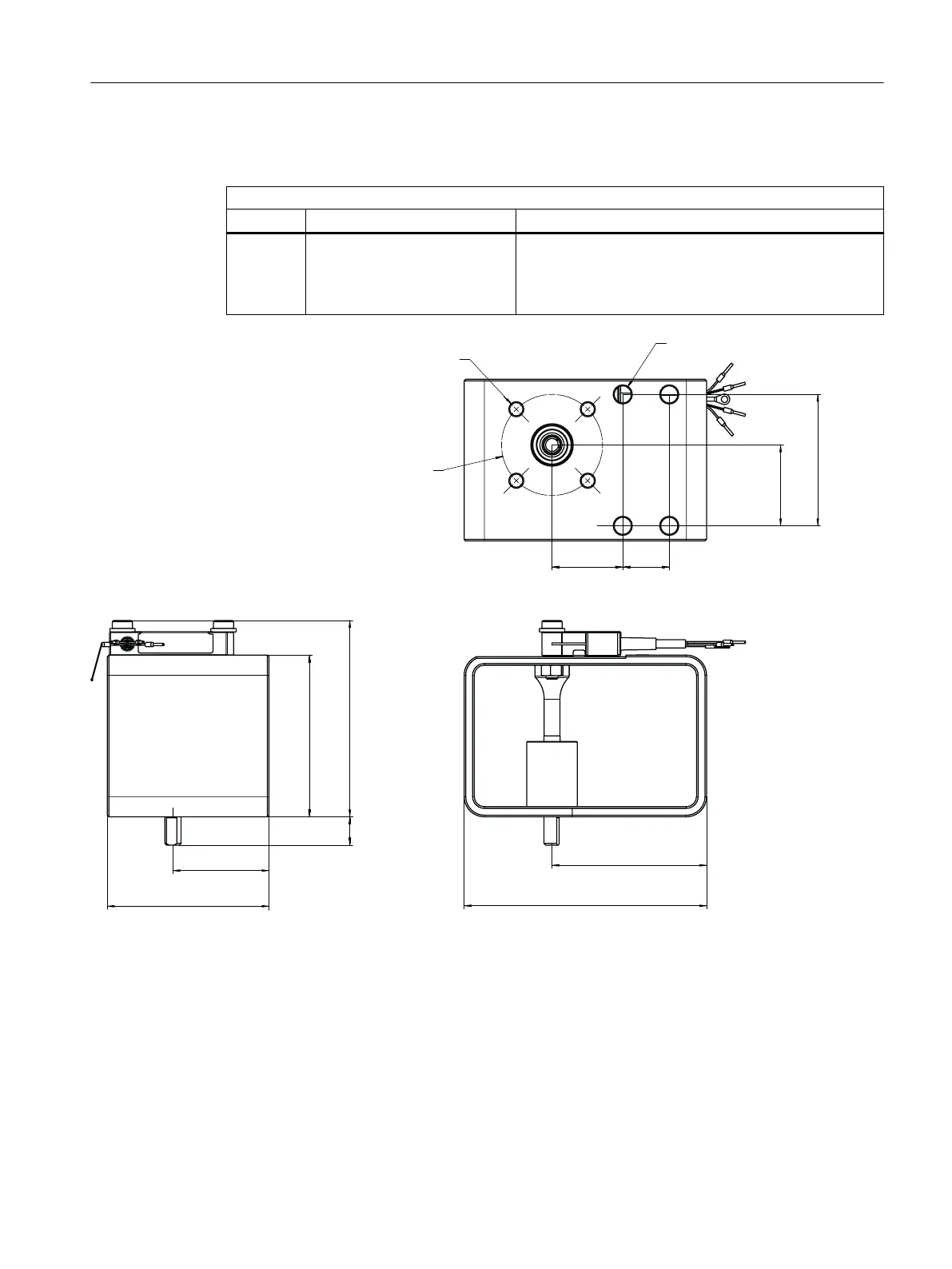

Figure B-9 Dimension drawing NCS module > 14 mm (0.55 inch)
External position detection
B.2 Non-Contacting Sensor
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 287

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
