① 19" slide-in module 4 to 20 mA ④ Channel 3
② Sub-D 15-pin socket connector for cable to
the valve
⑤ Channel 2
③ Sub-D male connector 9-pin for cable to the
control system
⑥ Channel 1

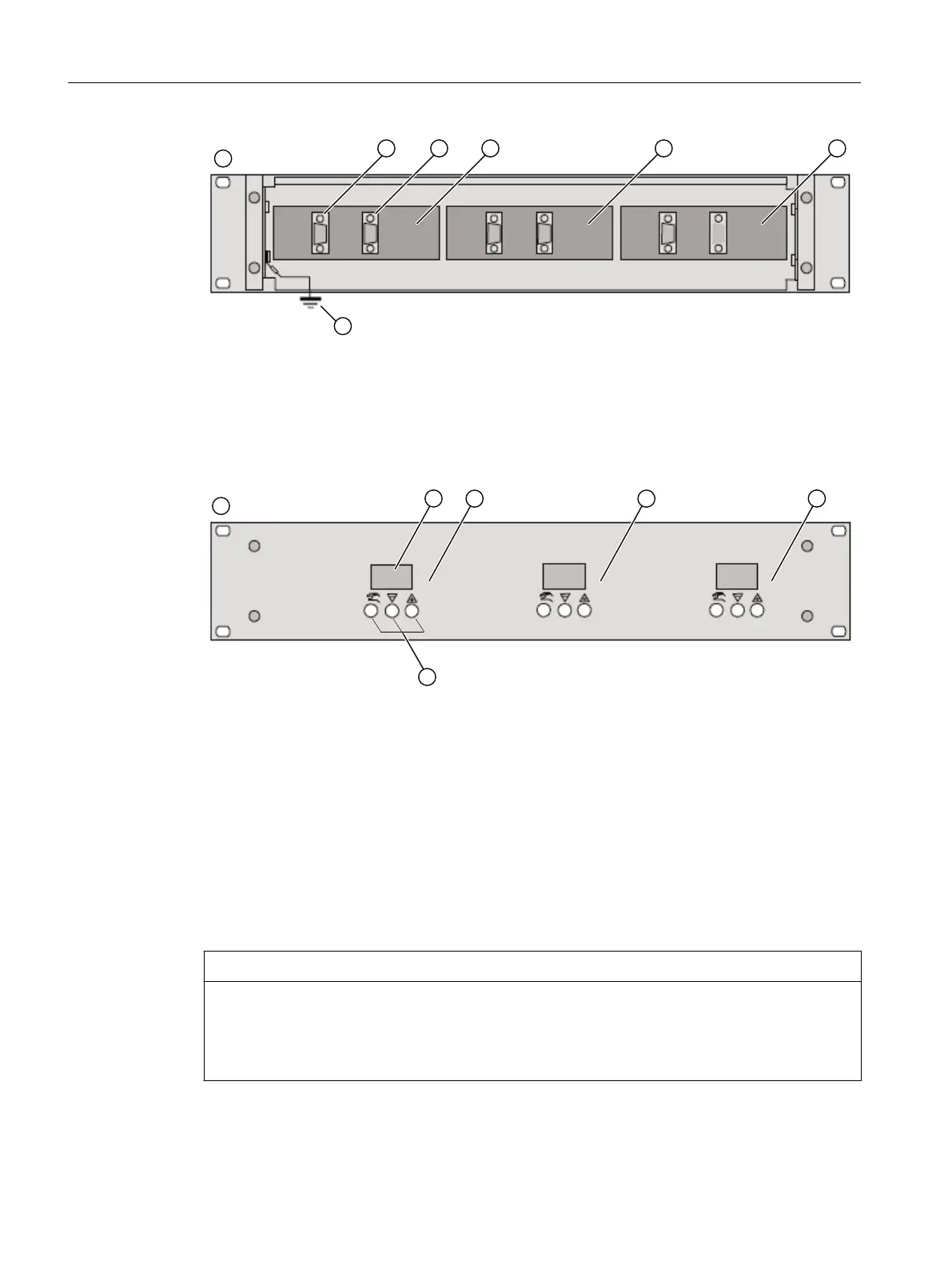

Figure F-1 Device view of 19" slide-in module 4 to 20 mA, rear view






① 19" slide-in module 4 to 20 mA ④ Channel 2
③ Channel 1 ⑤ Channel 3
② Display ⑥ Input keys
Figure F-2 Device view of 19" slide-in module 4 to 20 mA, front view
F.2.2 Connecting the 19" slide-in module 4 to 20 mA
F.2.2.1 Grounding concept of 19" slide-in module 4 to 20 mA
NOTICE
Interference
To dissipate interference pulses the positioner components must be connected to an
equipotential bonding cable (ground potential) using a low resistance.
● Connect the positioner 6DR5910 according to the grounding concept described below.
Positioner with remote control electronics
