Siemens SIPART PS2 series User Manual

-
+
1
10
138
238
9
$$
$
$






① Display ⑧ Output: Actuating pressure Y2
1)
② Restrictor Y1 ⑨ Restrictor Y2
1)
③ Output: Actuating pressure Y1 ⑩ Buttons
④ Input: Supply pressure PZ ⑪ Ground terminal
⑤ Safety catch ⑫ Connecting terminals of option modules
⑥ Transmission ratio selector
2)
⑬ Connecting terminals of basic electronics
⑦ Friction clutch adjustment wheel
1)
for double-acting actuators
2)
visible when the positioner is open

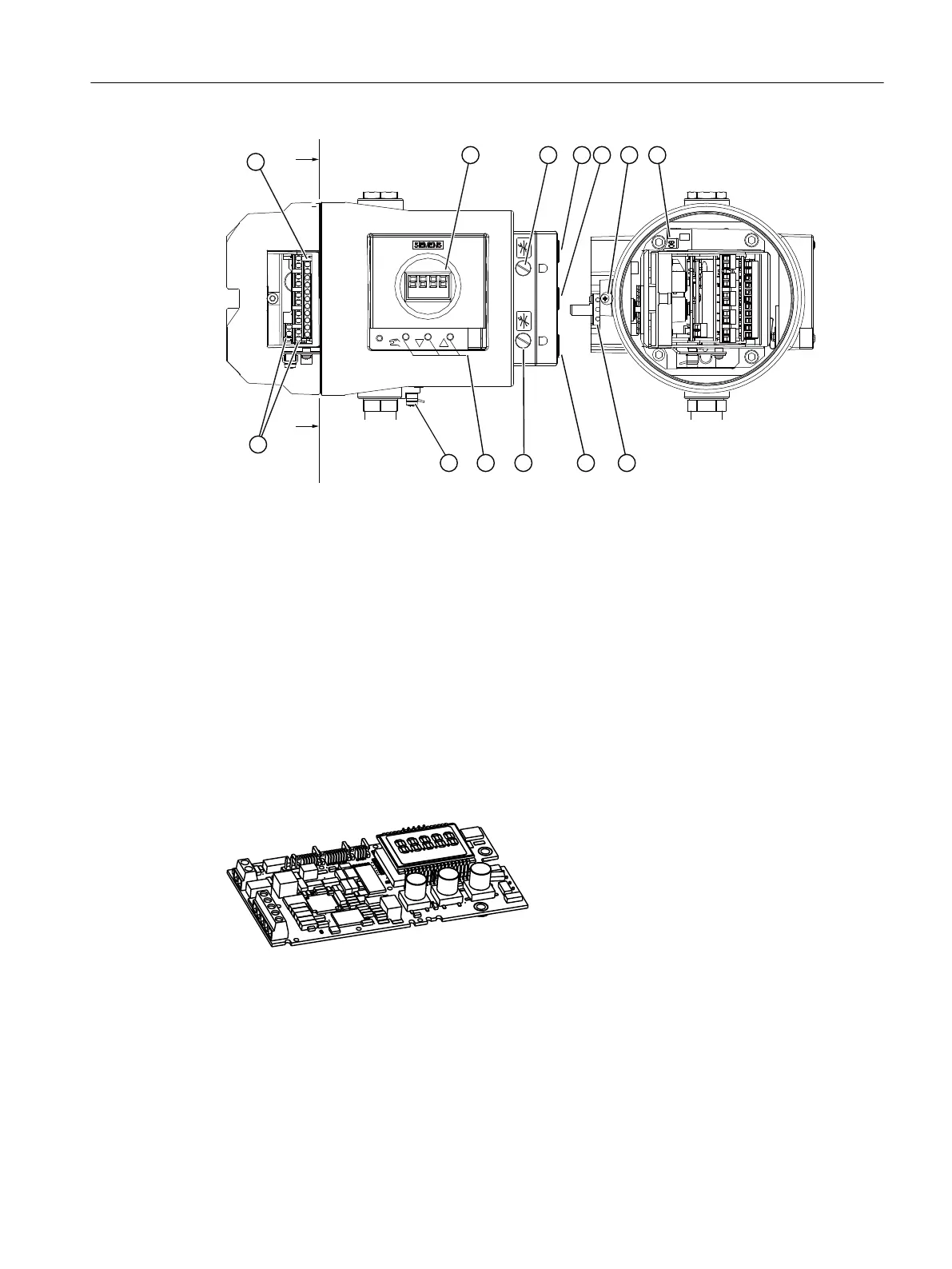

Figure 3-7 View of positioner in flameproof enclosure, cover opened
3.3.2 Basic electronics
Figure 3-8 Basic electronics, schematic representation
The basic electronics contains:
● CPU
● Memory
● Analog-to-digital converter
● Display
Description
3.3 Device components
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 29

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
