4.5.7 Analog Input Module (AIM) 6DR4004-6F / -8F
Function
If you use a Position Transmitter on the positioner, you will need the Analog Input Module (AIM).
The Analog Input Module (AIM) forms the interface between Position Transmitter and the basic
electronics of the positioner.
Device features
)([)Q([



① Switch block 1
② Switch block 2

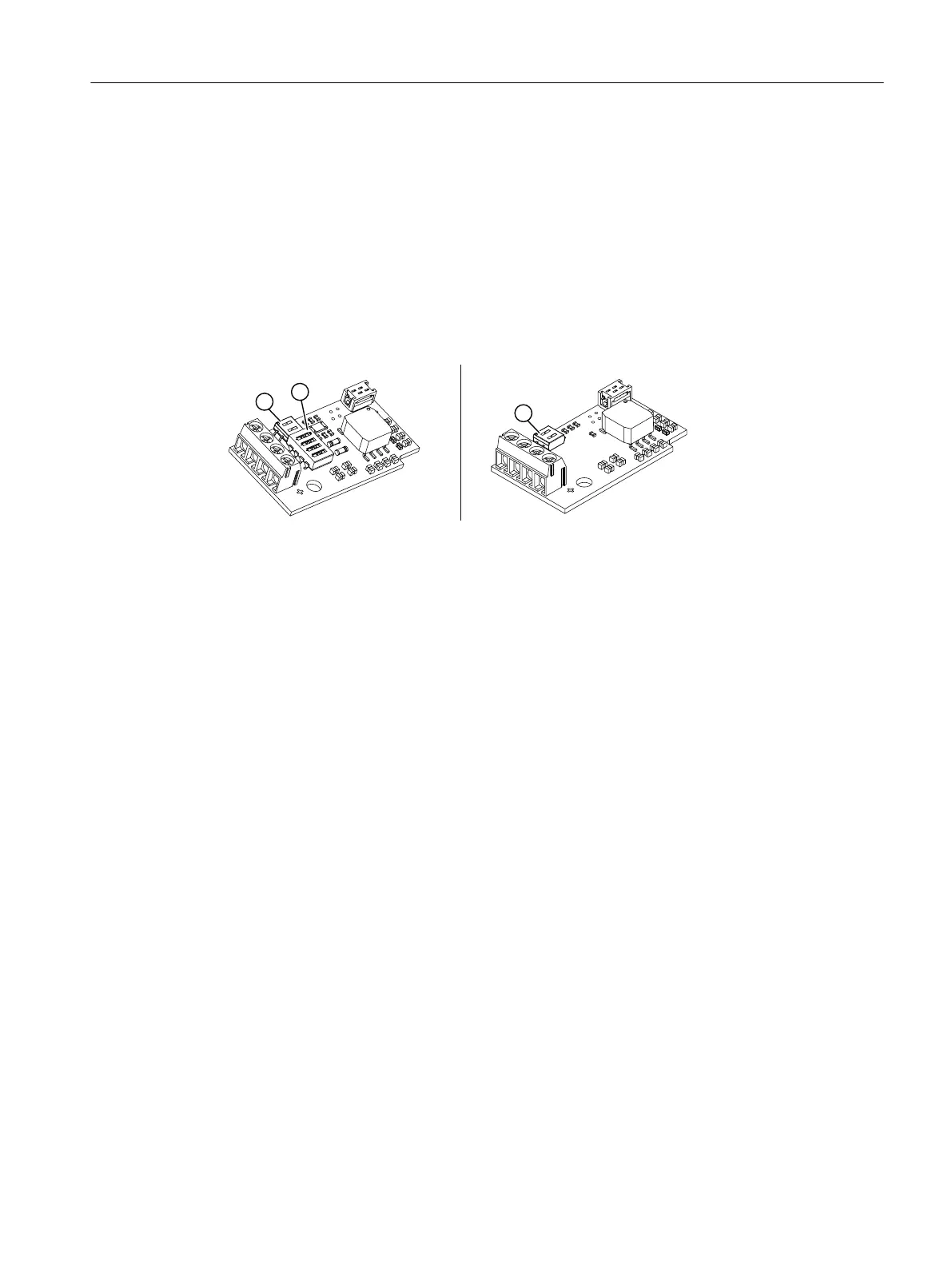

Figure 4-20 Analog Input Module (AIM), schematic representation
● Connection to basic electronics
● Connection terminals for:
– Position Transmitter (Potentiometer) with 3 kΩ, 5 kΩ or 10 to 20 kΩ
– Signals 0 to 20 mA
– Signals 0 to 10 V
Requirement
● You have at least one of the following modules:
– 6DR4004-8F Analog Input Module (AIM) - nEx
– 6DR4004-6F Analog Input Module (AIM) - Ex
● You have opened one of the following Position Transmitters:
– 6DR4004-6N*/-8N* NCS sensor
– 6DR4004-1ES Position Transmitter (Potentiometer)
– 6DR4004-2ES Position Transmitter (NCS)
– 6DR4004-3ES Position Transmitter (NCS, ILS)
– 6DR4004-4ES Position Transmitter (NCS, MLS)
Installing/mounting
4.5 Installing option modules
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 71
