4.5.5 Mechanic Limit Switches (MLS) 6DR4004-6K / -8K
4.5.5.1 Mechanic Limit Switches (MLS) - Mode of operation and equipment features
Function
Mechanic Limit Switches (MLS) are used to report two limits. These limits are reported using
galvanic switching contacts.
Device features




① Actuating disk bearings ④ Upper actuating disk for limit L1, terminals
51/52
② Special screw ⑤ Lower actuating disk for limit L2, terminals
41/42
③ Pin

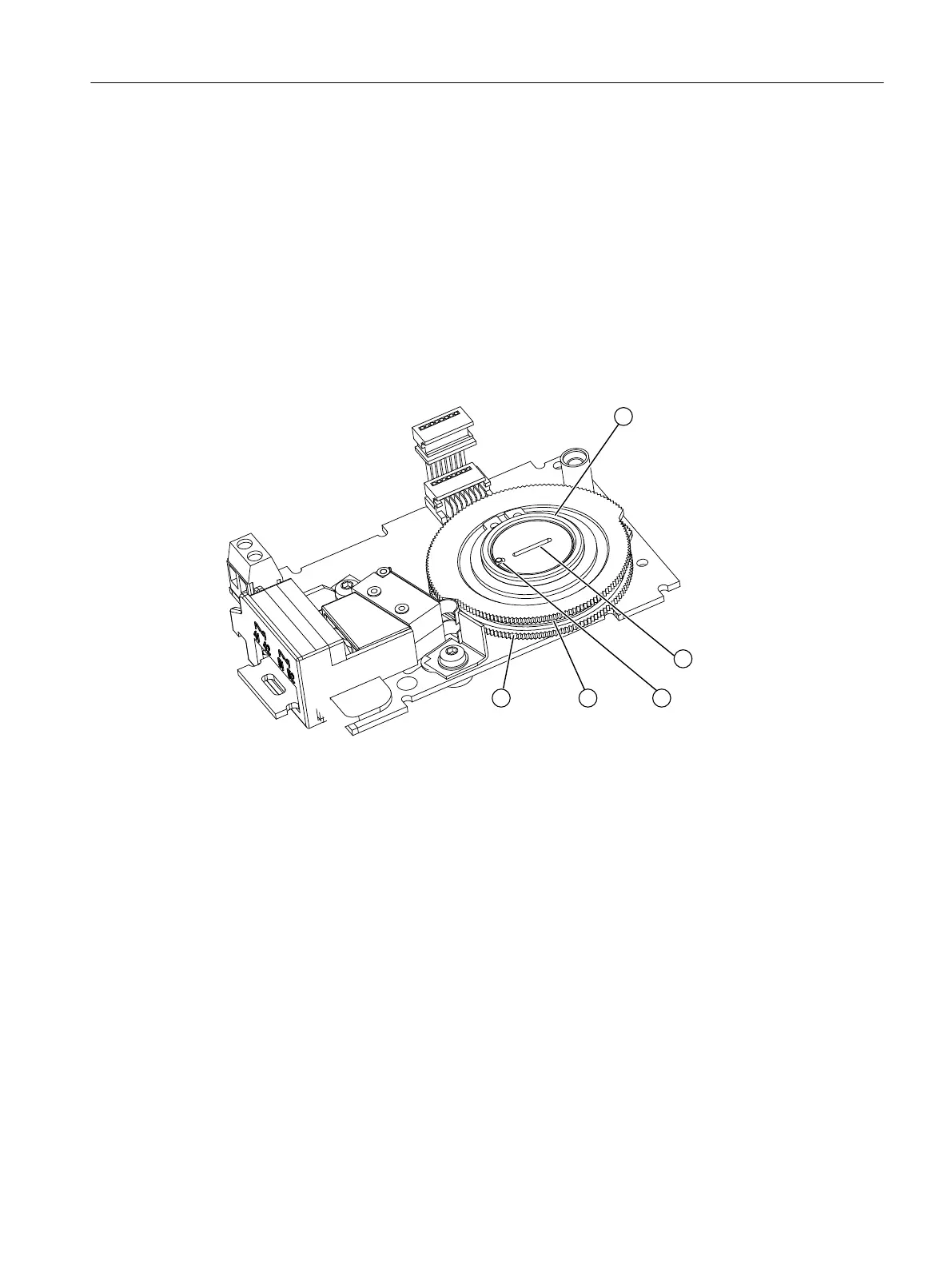

Figure 4-18 Mechanic Limit Switches (MLS), schematic representation
Mechanic Limit Switches (MLS) contain:
● One digital output to display a group fault message. Compare with the device features of the
Mechanic Limit Switches (MLS).
● Two switches to report two mechanically adjustable limits. Both these switches are
electrically independent from the remaining electronic unit.
