Note
Properties of the cable
To avoid interference, the cable between 19" slide-in module, positioners 6DR59.. and field
distributors should have the following signal pairs (twisted pair):
● Discharge - / Discharge +
● Supply - / Supply +
● GND / POS
● V_REF GND








*URXQG
*URXQG
*URXQG
*URXQG
*URXQG








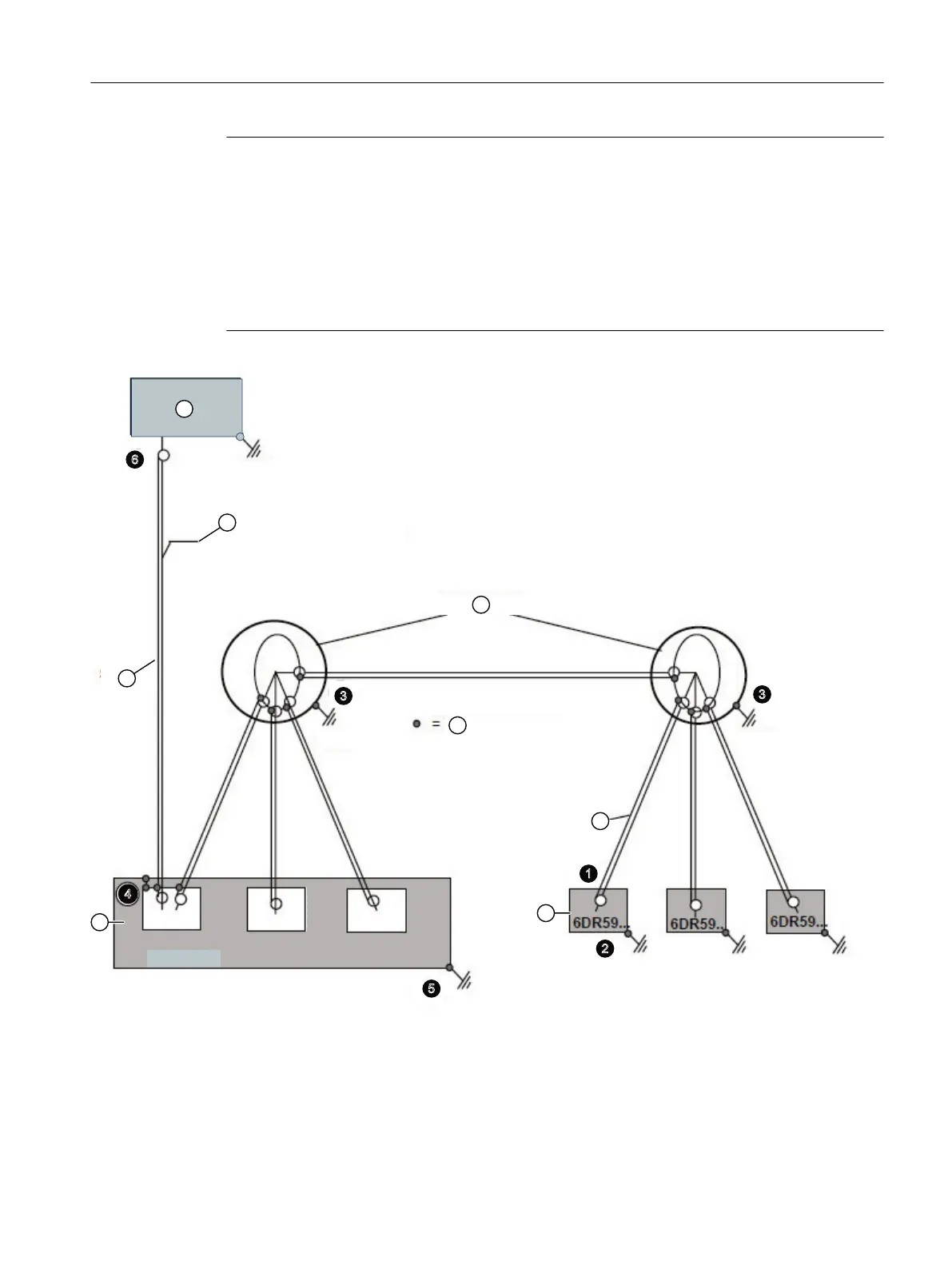

① Control system ⑤ Shield
② 3 x 1 cable to the control system ⑥ Positioner 6DR5910
③ Field distributor ⑦ 19" slide-in module
④ Connection point
Ground
Positioner with remote control electronics
F.2 19" slide-in module
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 313

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
