Installing/mounting
Mounting of this positioner without basic electronics corresponds to the mounting of the
positioner in non-flameproof enclosure. Proceed as described in Section "Installing/mounting
(Page 37)".
Connecting
Connect the positioner as described in Section "Positioner without basic electronics 6DR5910
(Page 318)". Please also observe Basic safety instructions (Page 75) for connection.
Commissioning
Commission the positioner as described in Section "Commissioning (Page 105)".

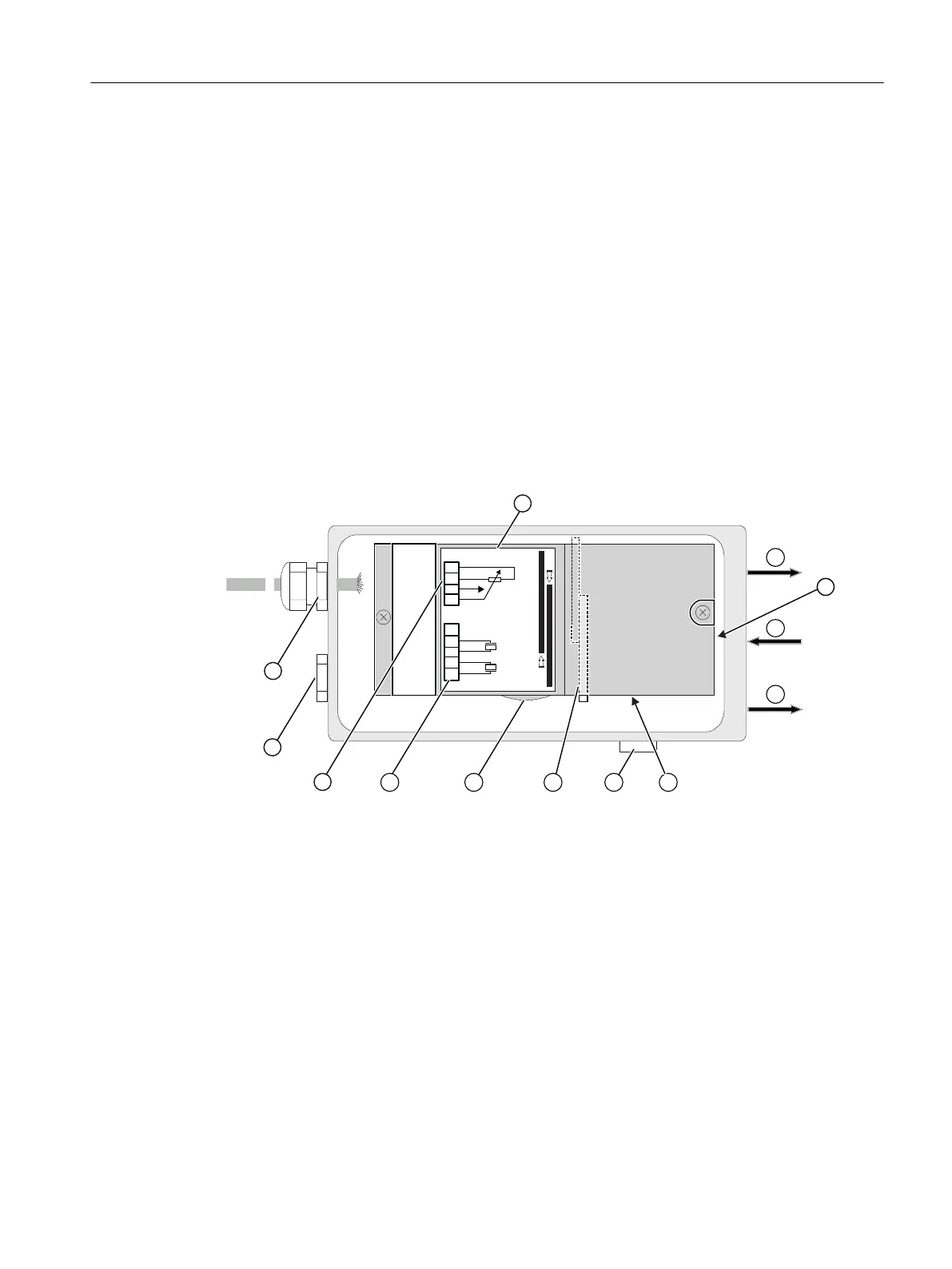

Device view of positioner 6DR5910









'51*$$
a a





r
r
r
r
*1'
9B5()
9&&
326
$EO
$EO
=XO
=XO





① Output: Actuating pressure Y1 ⑦ Friction clutch adjustment wheel
② Input: Supply pressure PZ ⑧ Connecting terminals, positioner
③ Output: Actuating pressure Y2 (not for
6DR59..)
⑨ Blanking plug
④ Restrictor Y1 ⑩ Cable gland
⑤ Exhaust air outlet with a sound absorber ⑪ Wiring diagram on module cover
⑥ Transmission ratio selector ⑫ Purging air selector
