Siemens SIPART PS2 series User Manual

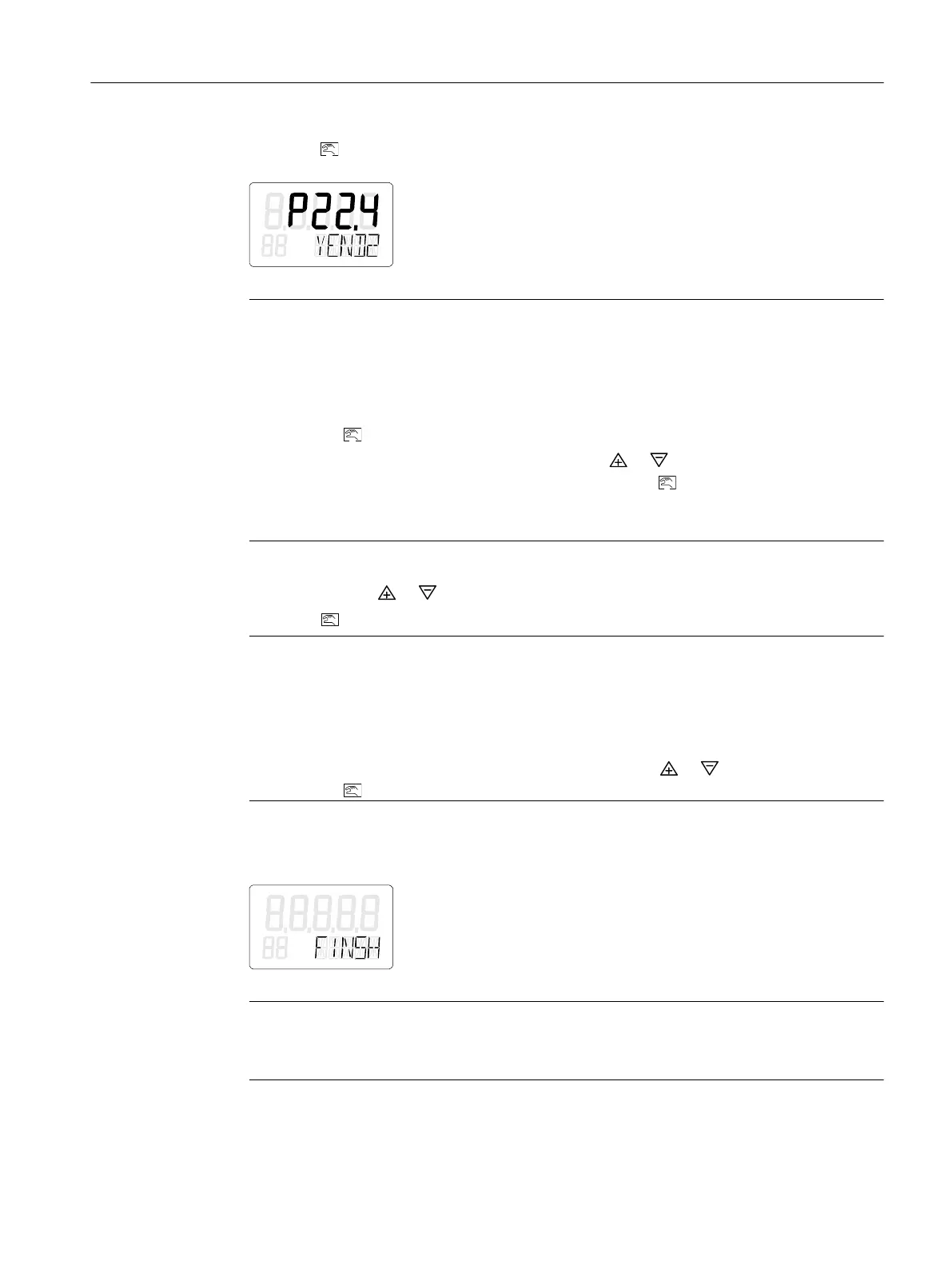

9. Press the button. The current position of the actuator is applied. The display shows the
following:
Note
Fault message "RANGE"
The selected end position is beyond the permissible measuring range if the "RANGE"
message is output on the display. Correct the settings as follows:
1. Move the friction clutch until the display shows "OK".
2. Press the button.
3. Move the actuator to another position using the or button.
4. Abort the manual initialization process by pressing the button.
5. Then return to "P manual mode".
6. Correct the actuator travel and the position detection.
10.Determine the upper endstop of the actuator spindle. Move the actuator to the desired
position using the or button.
11.Press the button. The current position of the actuator is applied.
Note
Fault message "Set Middl"
The lever arm is not in the horizontal position if the "Set Middl" message is output on the
display. To correct the fault, set the reference point of the sine correction. Proceed as
follows:
1. Move the lever arm to the horizontal position using the or button.
2. Press the button.
12.The initialization process is automatically resumed. Initialization steps "RUN 1" to "RUN 5"
are output in the bottom line of the display. The following is displayed when the initialization
has been completed successfully:
Note
Total stroke
If the "3.YWAY" parameter has been set, the display shows the total stroke in mm.
Commissioning
7.10 Commissioning linear actuators
SIPART PS2 with 4 to 20 mA/HART
Operating Instructions, 11/2019, A5E00074631-AE 123

Siemens SIPART PS2 series Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Type	Electropneumatic
Input Signal	4-20 mA
Stroke Range	3 to 200 mm
Rotary Range	30 to 100°
Mounting	Linear or rotary actuators
Certifications	ATEX, IECEx, FM, CSA
