[einschub-7sd80-101025, 1, --_--]

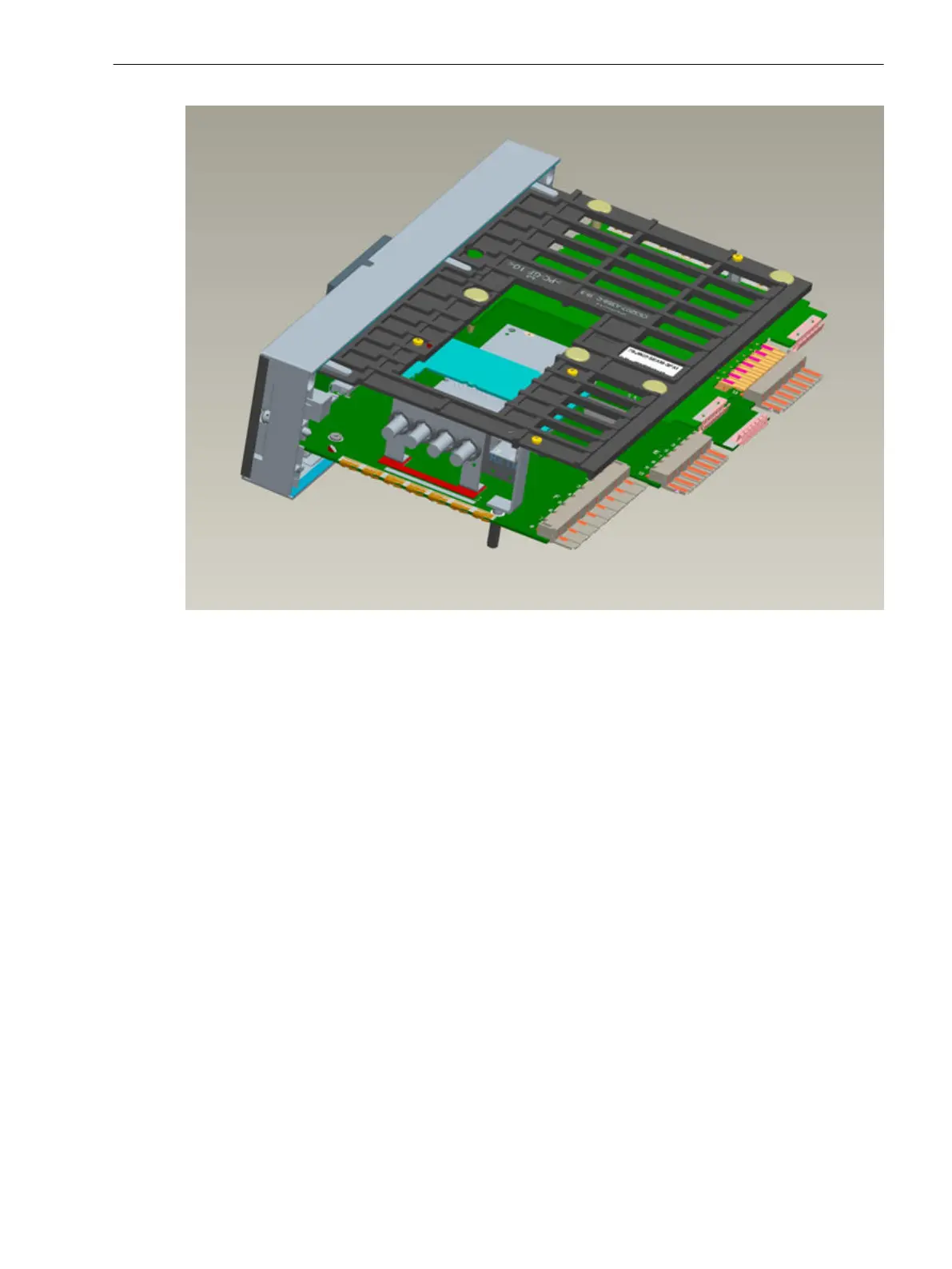

Figure 3-3
Electronic block without housing
Replacing the Fuse
The fuse holder is located at the edge of the basic I/O board close to the power supply connection.
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SD80, Manual 211
E50417-G1100-C474-A2, Edition 02.2018
