Panel Surface Mounting (Housing Size 1/6)
[abmess-sechstel-gehaeuse-aufbau-7sx80-060606, 1, en_US]

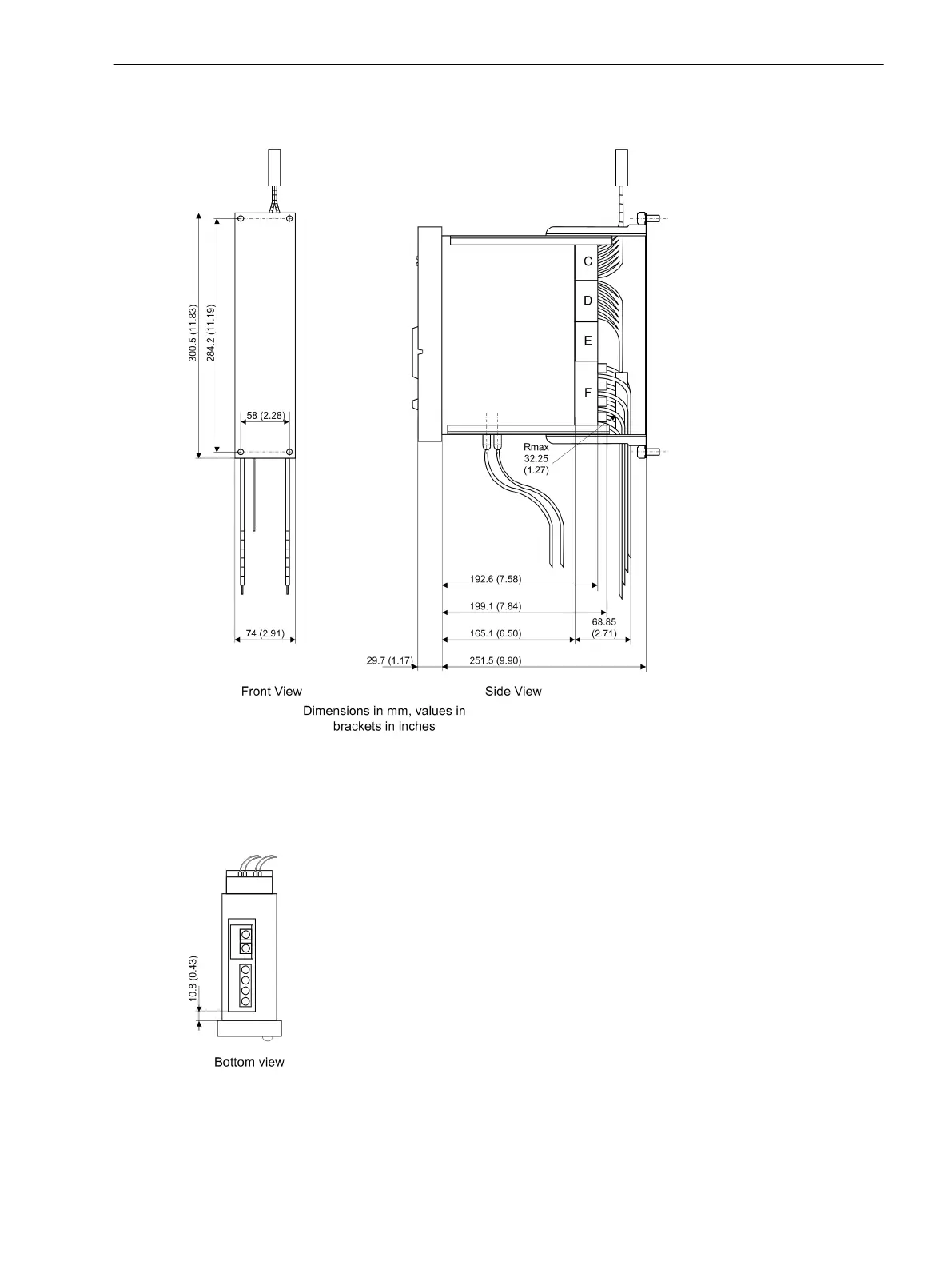

Figure 4-8
Dimensional drawing of a 7SD80 for panel surface mounting (housing size
1
/
6
)
Bottom View
[ansicht-unten-7sd80-100801, 1, en_US]
Figure 4-9 Bottom view of a 7SD80 (housing size 1/6)
4.19.2
4.19.3
Technical Data
4.19 Dimensions
SIPROTEC 4, 7SD80, Manual 297
E50417-G1100-C474-A2, Edition 02.2018
