Siemens SIPROTEC 4 7SD80 User Manual

Dimensions
Panel Flush Mounting and Cabinet Flush Mounting (Housing Size 1/6)
[abmess-sechstel-gehaeuse-7sx80-060606, 1, en_US]

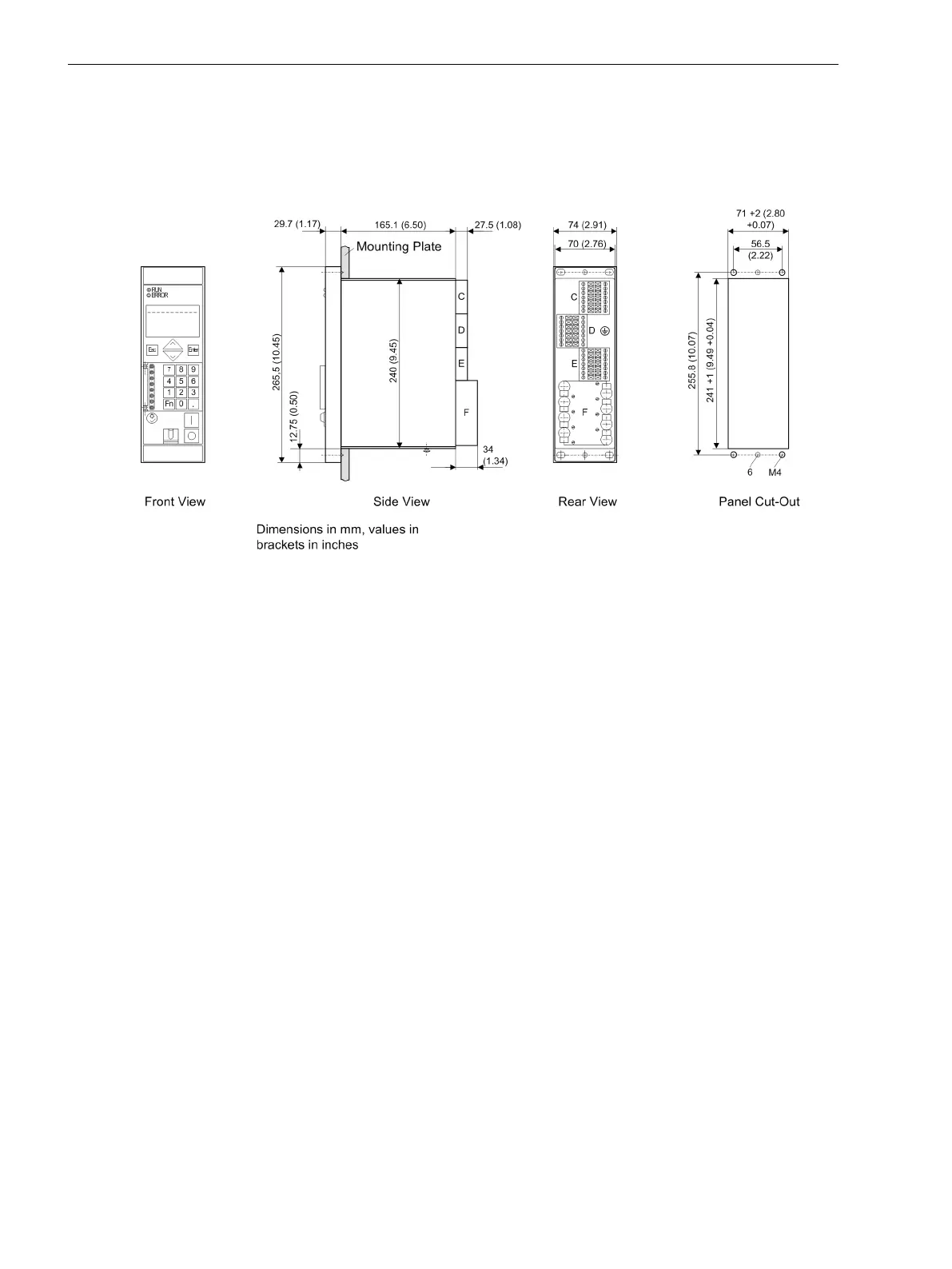

Figure 4-7 Dimensional drawing of a 7SD80 for panel flush mounting and cabinet flush mounting
(housing size
1
/
6
)
Note: A set of mounting brackets (consisting of upper and lower mounting rail) (order no. C73165-A63-
D200- 1) is required for cabinet flush mounting.
Provide for sufficient space at the device bottom side or below the device to accommodate the
cables of the communication modules.
4.19
4.19.1
Technical Data
4.19 Dimensions
296 SIPROTEC 4, 7SD80, Manual
E50417-G1100-C474-A2, Edition 02.2018
